1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
2. REMOVE TRANSVERSE ENGINE ENGINE MOUNTING INSULATOR

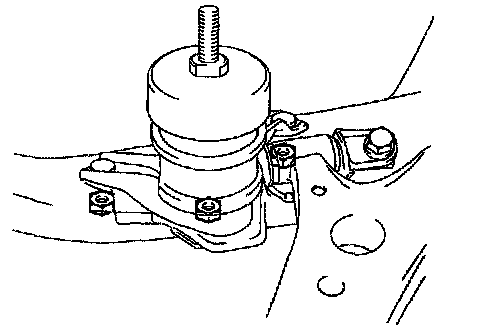

a. Remove the 3 nuts and transverse engine engine mounting insulator.
3. REMOVE FRONT SUSPENSION ARM SUB-ASSY LOWER NO. 1 LH

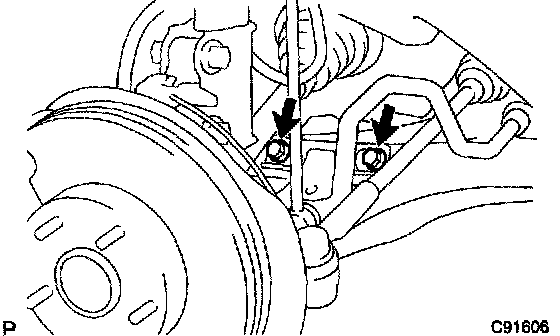

a. Remove the 2 bolts on the front side of the front suspension arm sub-assy lower No. 1 LH.

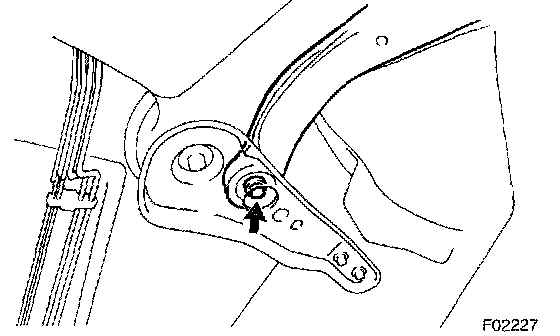

b. Remove the bolt and nut on the rear side of the front suspension arm sub-assy lower No. 1 LH.
c. Remove the front suspension arm sub-assy lower No. 1 LH.
d. Remove the front lower arm bush stopper from the front suspension arm sub-assy lower No. 1 LH.
4. INSTALL FRONT SUSPENSION ARM SUB-ASSY LOWER NO. 1 LH
a. Install the front lower arm bush stopper to the front suspension arm sub-assy lower No. 1 LH.

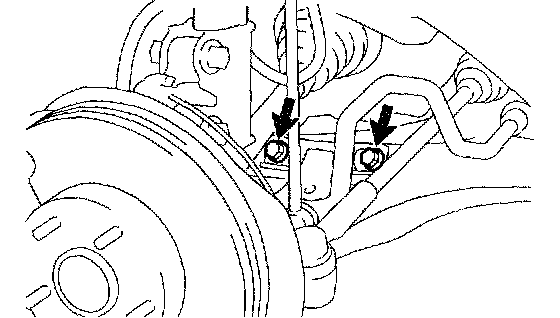

b. Install the front suspension arm sub-assy lower No. 1 LH with the 2 bolts to the front side.
Torque: 200 Nm (2,039 kgf-cm, 148 ft. lbs.)

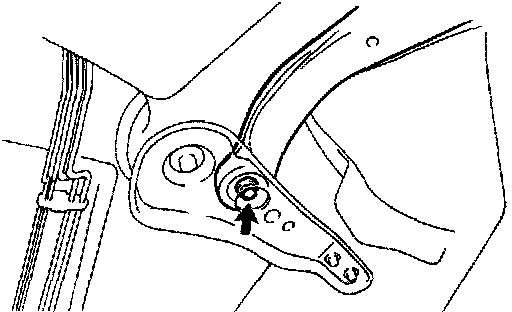

c. Install the front suspension arm sub-assy lower No. 1 LH with the bolt and nut to the rear side.
Torque: 206 Nm (2,101 kgf-cm, 152 ft. lbs.)
5. INSTALL TRANSVERSE ENGINE ENGINE MOUNTING INSULATOR
a. Install the transverse engine engine mounting insulator with the 3 nuts.
Torque: 87 Nm (887 kgf-cm, 64 ft. lbs.)
6. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
