Steering Mounted Controls Transmitter: Service and Repair

STEERING PAD SWITCH

REPLACEMENT




1. REMOVE CONNECTOR COVER

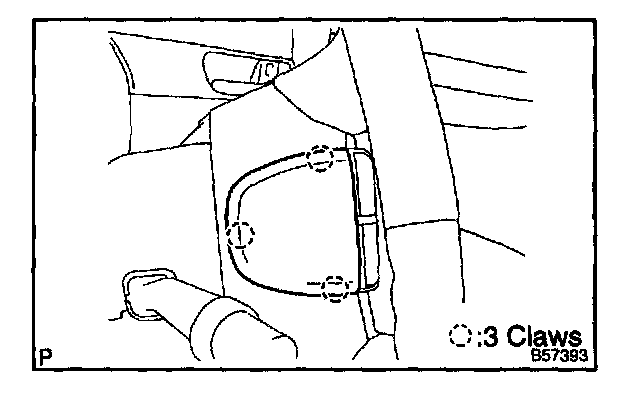

a. Using a screwdriver, disengage the 3 claws and remove the connector cover.




2. REMOVE STEERING PAD SWITCH

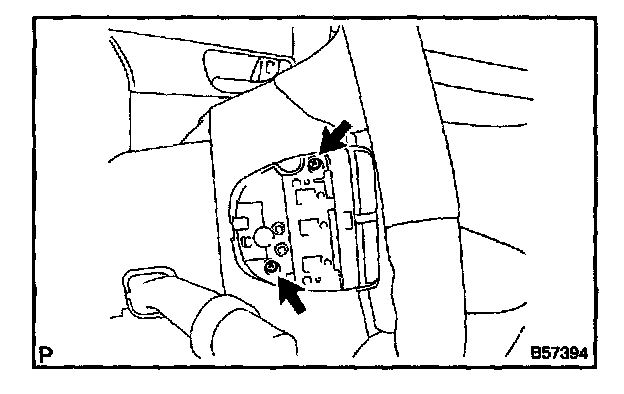

a. Remove the 2 screws and disconnect the connector.
b. Remove the steering pad switch.
