Steering -Tilt Wheel Hard To Move From Down Position
ELECTRICALEL008-02
Title:
STEERING WHEEL DIFFICULT TO RELEASE FROM FULL DOWN POSITION
Models:
'02 ES 300
July 12, 2002
Introduction
Some customers may complain that the steering wheel will not return to the up position after the tilt lever is moved to the release position. This condition usually occurs after the steering wheel has been previously tilted to the full down position. The wiring harness running directly below the tilt lock mechanism is being pressed by the plastic lower column cover and preventing the release movement of the tilt lock.
Applicable Vehicles
^ 2002 model year ES 300 vehicles produced before the VINs shown below.
Production Change Information

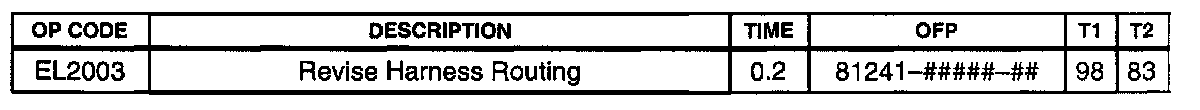

Warranty Information
Applicable Warranty *:
This repair is covered under the Lexus Comprehensive Warranty. This warranty is in effect for 48 months or 50,000 miles, whichever occurs first, from the vehicle's In-service date.
* Warranty application is limited to correction of a problem based upon a customer's specific complaint.
Repair Procedure
1. Remove the lower steering column cover.
2. Peel the vinyl tape from the harness.
3. Cut the hard protector 20 mm as shown in the illustration, and replace the vinyl tape on the hard protector.
NOTE:
Be sure that no wires are cut or damaged when performing this procedure.
4. Install the lower steering column cover.
