Impact Sensor

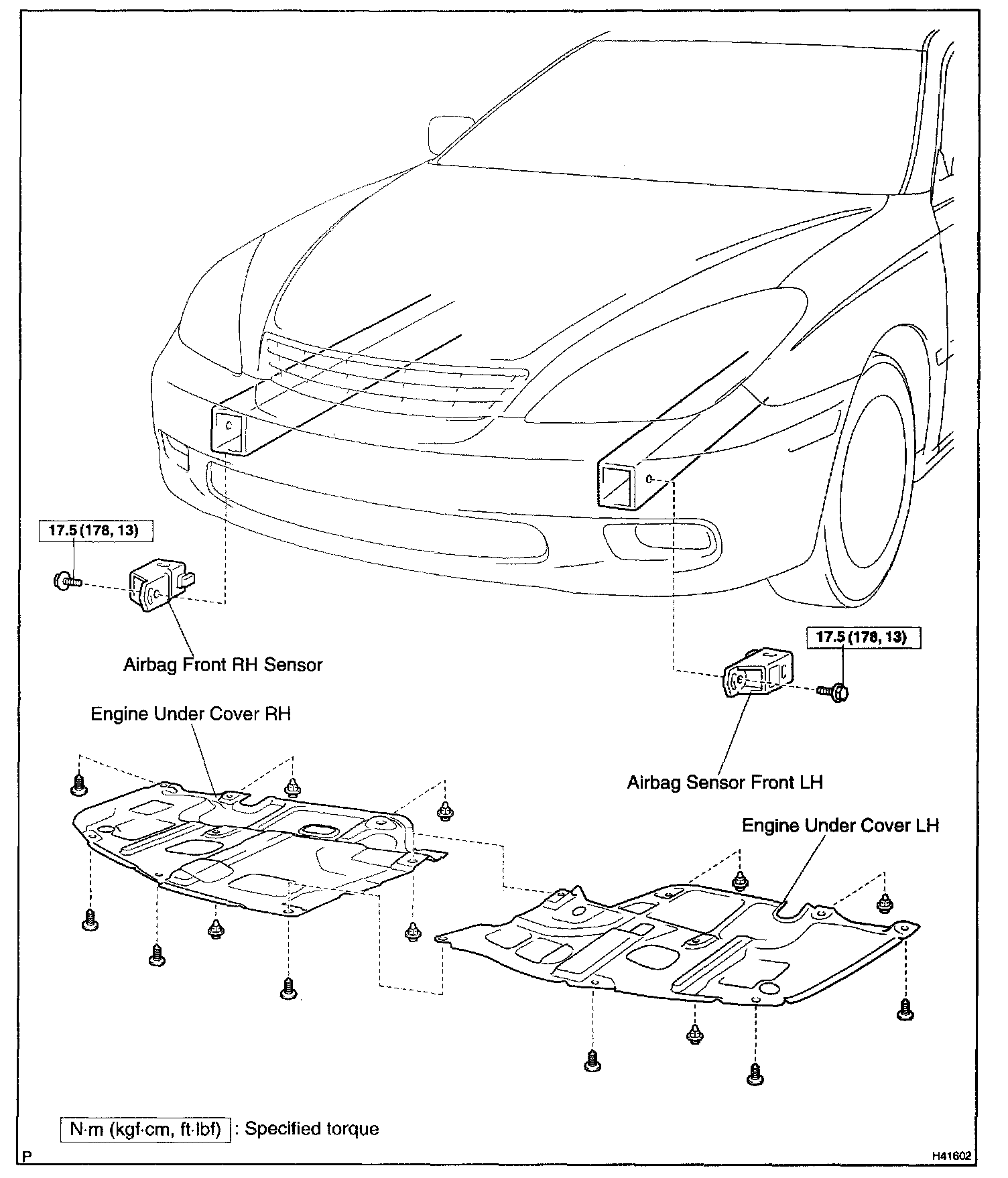

Air Bag Front RH Sensor:



Side Air Bag Sensor Assy RH:

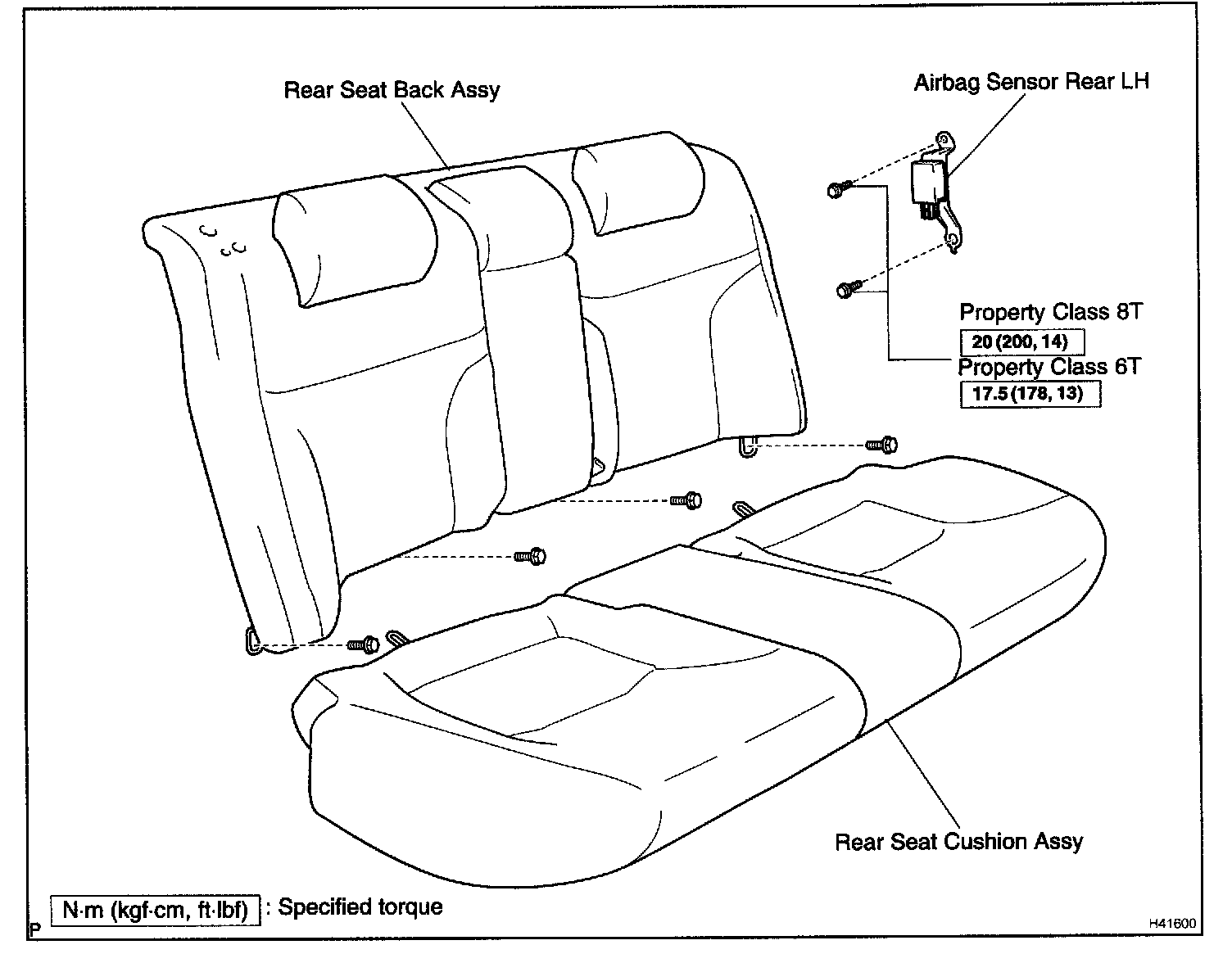

Air Bag Sensor Rear LH:

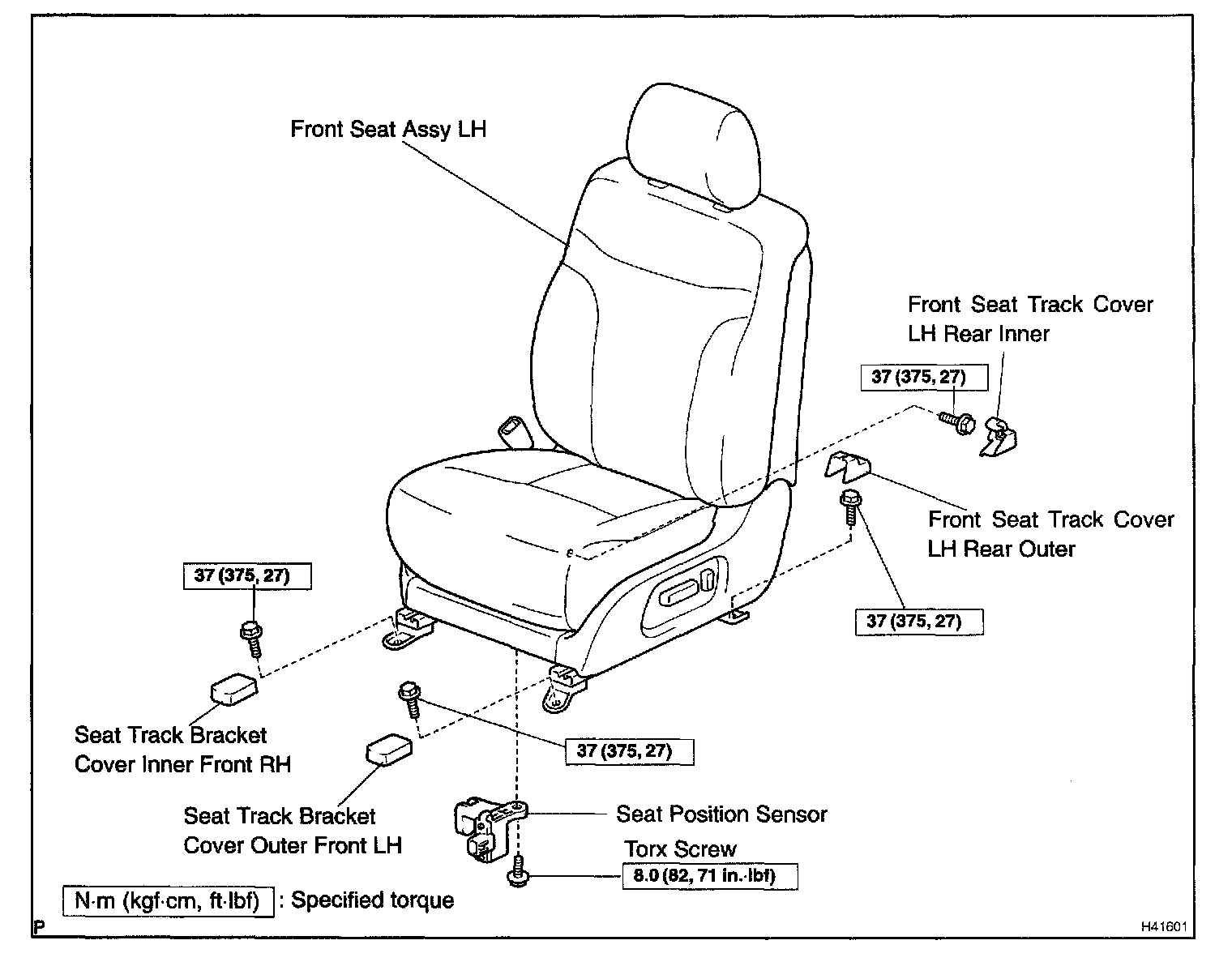

Seat Position Air Bag Sensor:
