SEAT BELT WARNING SYSTEM

INSPECTION

1. INSPECT FRONT SEAT INNER BELT ASSY LH

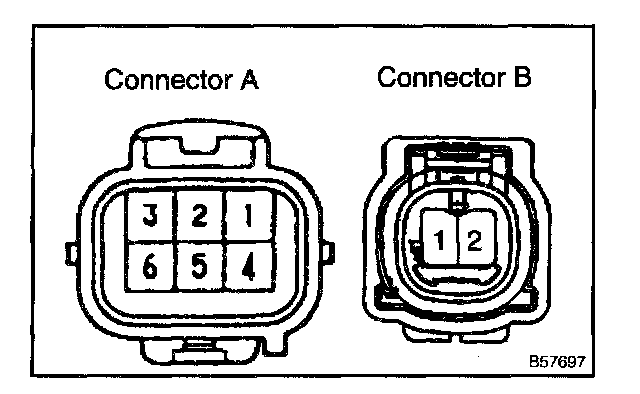

a. When fastening the seat belt (buckle switches ON).

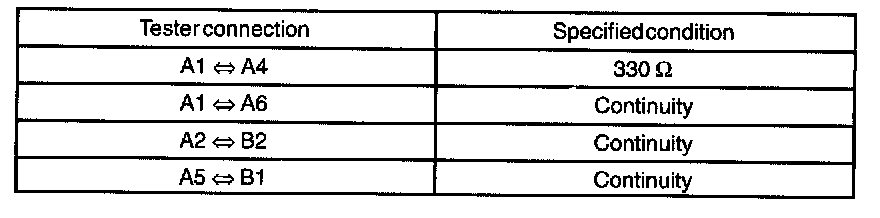

1. Inspect the continuity and resistance between the terminals.







b. When releasing the seat belt (buckle switches OFF).

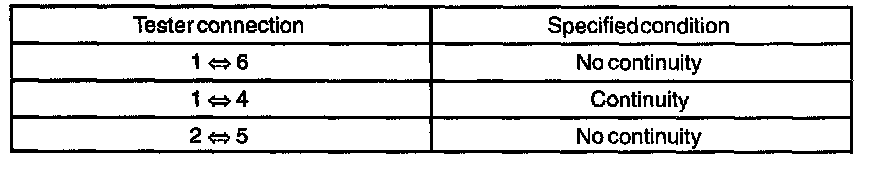

1. Inspect the continuity and resistance between the terminals.

2. INSPECT FRONT SEAT INNER BELT ASSY RH

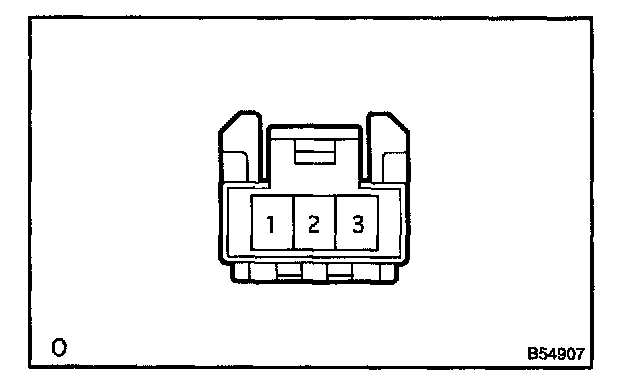

a. Short between connector terminals 1 and 3 of the occupation sensor.

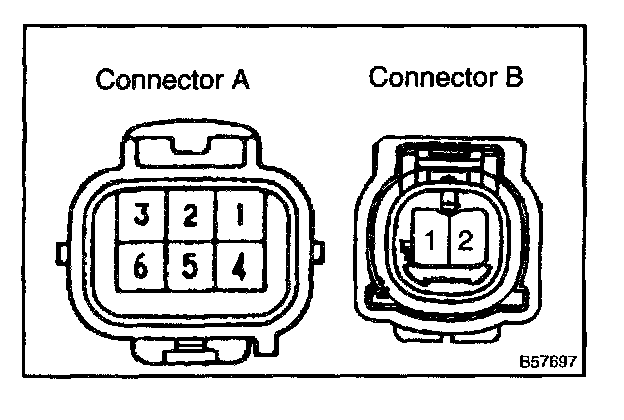

b. When fastening the seat belt (buckle switches ON).
1. Inspect the continuity and resistance between the terminals.







c. When releasing the seat belt (buckle switches OFF).

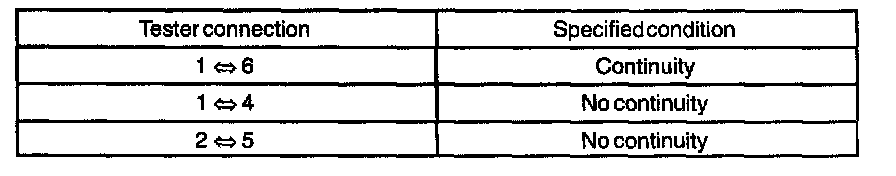

1. Inspect the continuity and resistance between the terminals.




d. Release the between terminals 1 and 3 of the occupation sensor connector.

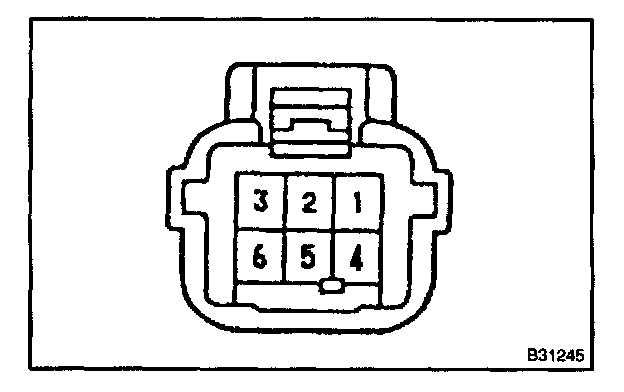

e. When fastening the seat belt (buckle switches ON).

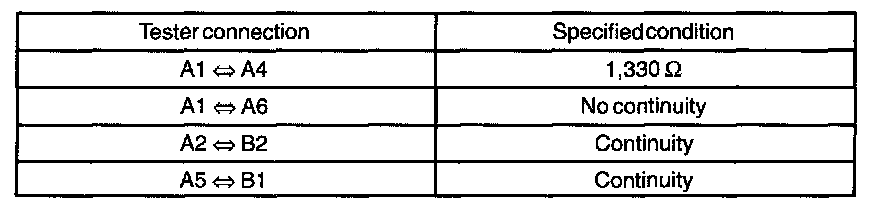

1. Inspect the continuity and resistance between the terminals.

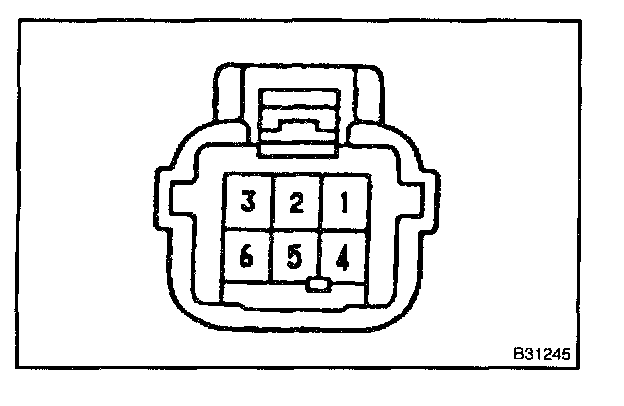

f. When releasing the seat belt (buckle switches OFF).
1. Inspect the continuity and resistance between the terminals.
