Vehicle Speed Sensor: Service and Repair
REPLACEMENT1. REMOVE BATTERY
2. REMOVE AIR CLEANER ASSY
3. REMOVE AIR CLEANER HOSE NO. 1

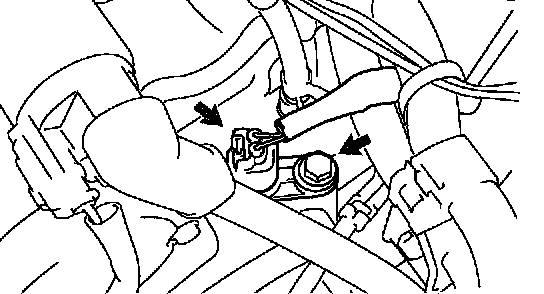

4. REMOVE SPEED SENSOR (NT SENSOR)
a. Disconnect the speed sensor connector.
b. Remove the bolt and speed sensor.

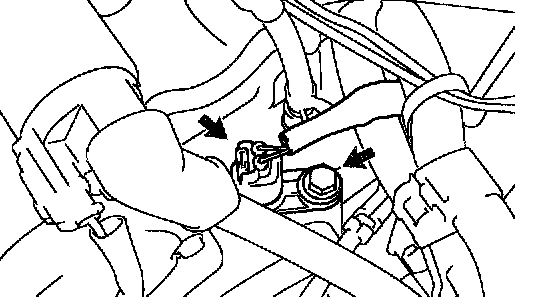

5. REMOVE SPEED SENSOR (NC SENSOR)
a. Disconnect the speed sensor connector.
b. Remove the bolt and speed sensor.

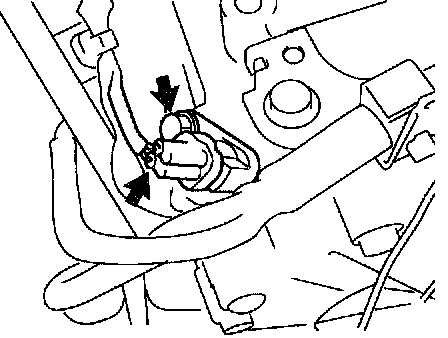

6. INSTALL SPEED SENSOR (NC SENSOR)
a. Coat O-ring with ATF.
b. Install the speed sensor with the bolt.
Torque: 11.3 Nm (115 kgf-cm, 8 ft. lbs.)
HINT: Make sure of the manufacturer's name.
c. Connect the speed sensor connector.
7. INSTALL SPEED SENSOR(NT SENSOR)
a. Coat O-ring with ATF.
b. Install the speed sensor with the bolt.
Torque: 11.3 Nm (115 kgf-cm, 8 ft. lbs.)
HINT: Make sure of the manufacturer's name.
c. Connect the speed sensor connector.
8. INSTALL AIR CLEANER HOSE NO. 1
9. INSTALL AIR CLEANER ASSY
Torque: 5.0 Nm (51 kgf-cm, 44 inch lbs.)
10. INSTALL BATTERY
