Intake Air Control Valve Assy No.2

REPLACEMENT




1. REMOVE INTAKE AIR CONTROL VALVE ASSY NO.2
a. Disconnect the vacuum hose.

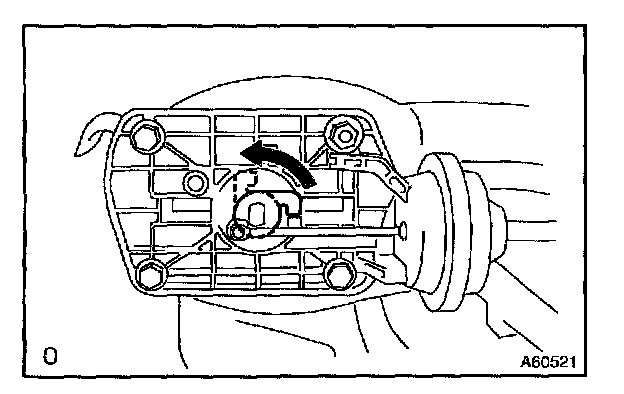

b. Remove the 3 bolts and nut. Rotate the lever to the closed position shown in the illustration and pull out the intake air control valve No.2.

2. INSTALL INTAKE AIR CONTROL VALVE ASSY NO.2
a. Install a new gasket and intake air control valve No.2.

Torque: 10 N.m (102 kgf.cm, 7.4 ft.lbf)
