INTAKE AIR CONTROL SYSTEM

1. INSPECT INTAKE AIR CONTROL SYSTEM




a. Using a 3-way connector, connect vacuum gauge to the actuator hose.
b. Connect the hand-held tester to the DLC 3.
c. Start the engine.

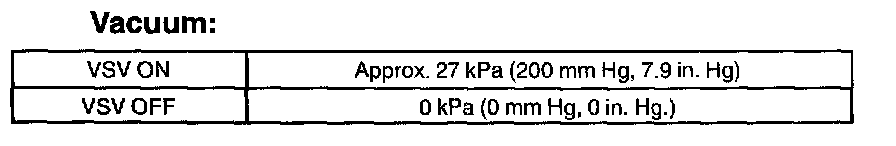

Vacuum:

d. Select the active test mode according to the message on the hand-held tester.




e. Shift transmission into P range and control the accelerator pedal.
f. Check the data monitor operation according to the illustration.

HINT: The value in the illustration is only for reference; the throttle valve may operate diversely depend on the running condition.
