ACIS Control Circuit

CIRCUIT DESCRIPTION




This circuit is opens and closes the Intake Air Control Valve in response to the engine load in order to increase the intake efficiency (ACIS: Acoustic Control Induction System).

When the engine speed is 4,100 rpm or less and the throttle valve opening angle is 30 ° or more, the ECM turns the two VSV ON or OFF and operate the Intake Air Control Valve.

Wiring Diagram:

INSPECTION PROCEDURE

Step 1 - 3:

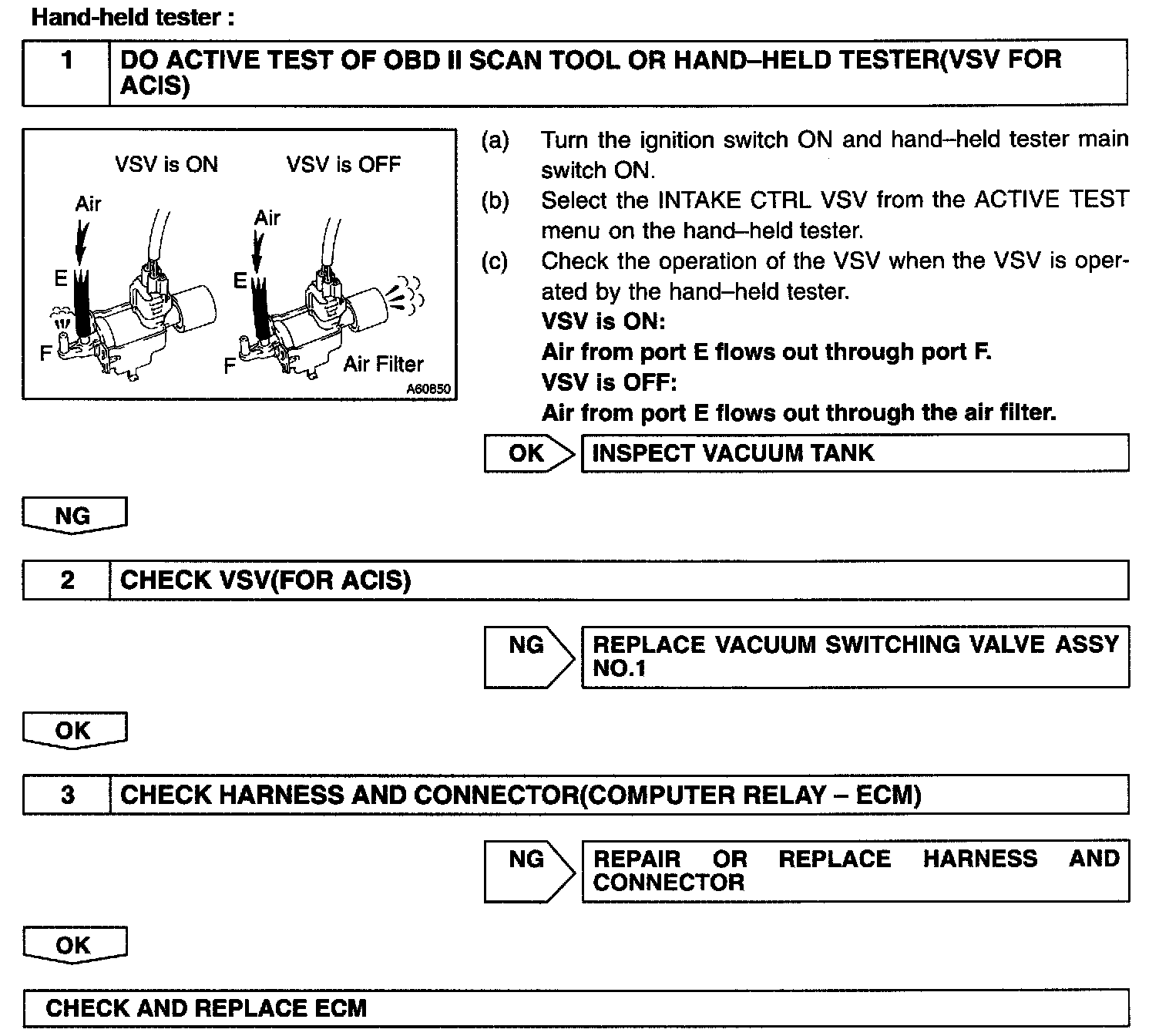

Hand-held Tester

Step 1:

Step 2 - 3:

OBD II scan tool (excluding Hand-held Tester)
