Pinout Values and Diagnostic Parameters

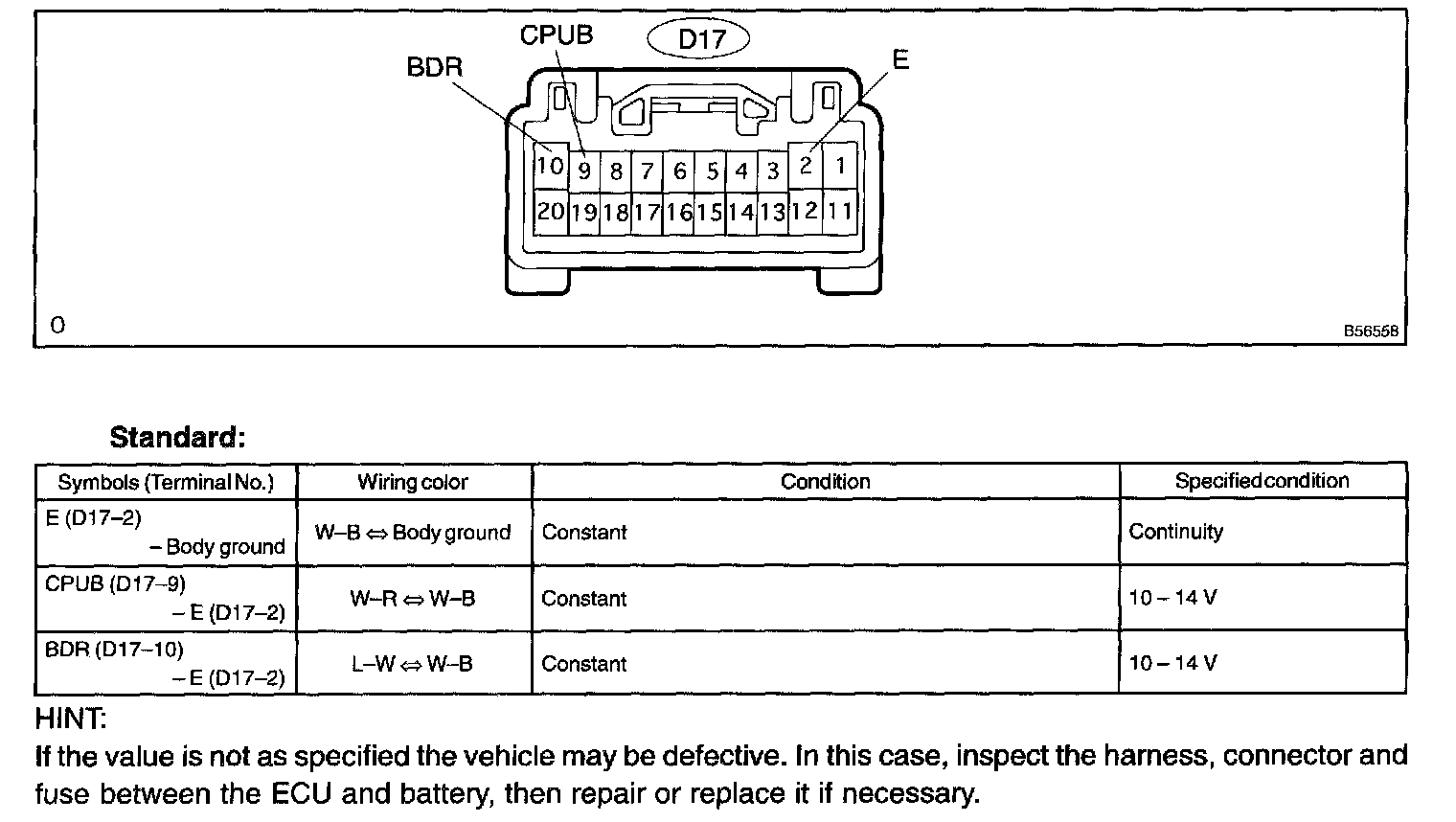

TERMINALS OF ECUTerminals Of ECU - Connector View:
Pinouts:
1. CHECK DRIVER SIDE J/B
a. Disconnect the J/B connectors 2A, 2D, 2G, 2H, 2K.
b. Check the voltage and continuity of each terminal of the vehicle's side connectors.
Terminals Of ECU:
2. CHECK POWER WINDOW REGULATOR MASTER SW (DRIVER DOOR ECU)
a. Disconnect the Switch connector.
b. Check the voltage and continuity of each terminal of the vehicle's side connectors.
Terminals Of ECU:
3. CHECK POWER WINDOW REGULATOR SW (PASSENGER DOOR ECU)
a. Disconnect the Switch connector.
b. Check the voltage and continuity of each terminal of the vehicle's side connectors.
Terminals Of ECU:
4. CHECK THEFT DETERRENT ECU (SECURITY ECU)
a. Disconnect the ECU connector.
b. Check the voltage and continuity of each terminal of the vehicle's side connectors.
