Step Lamp Assy Does Not Light Up

Wiring Diagram:






Step 1 - 3:

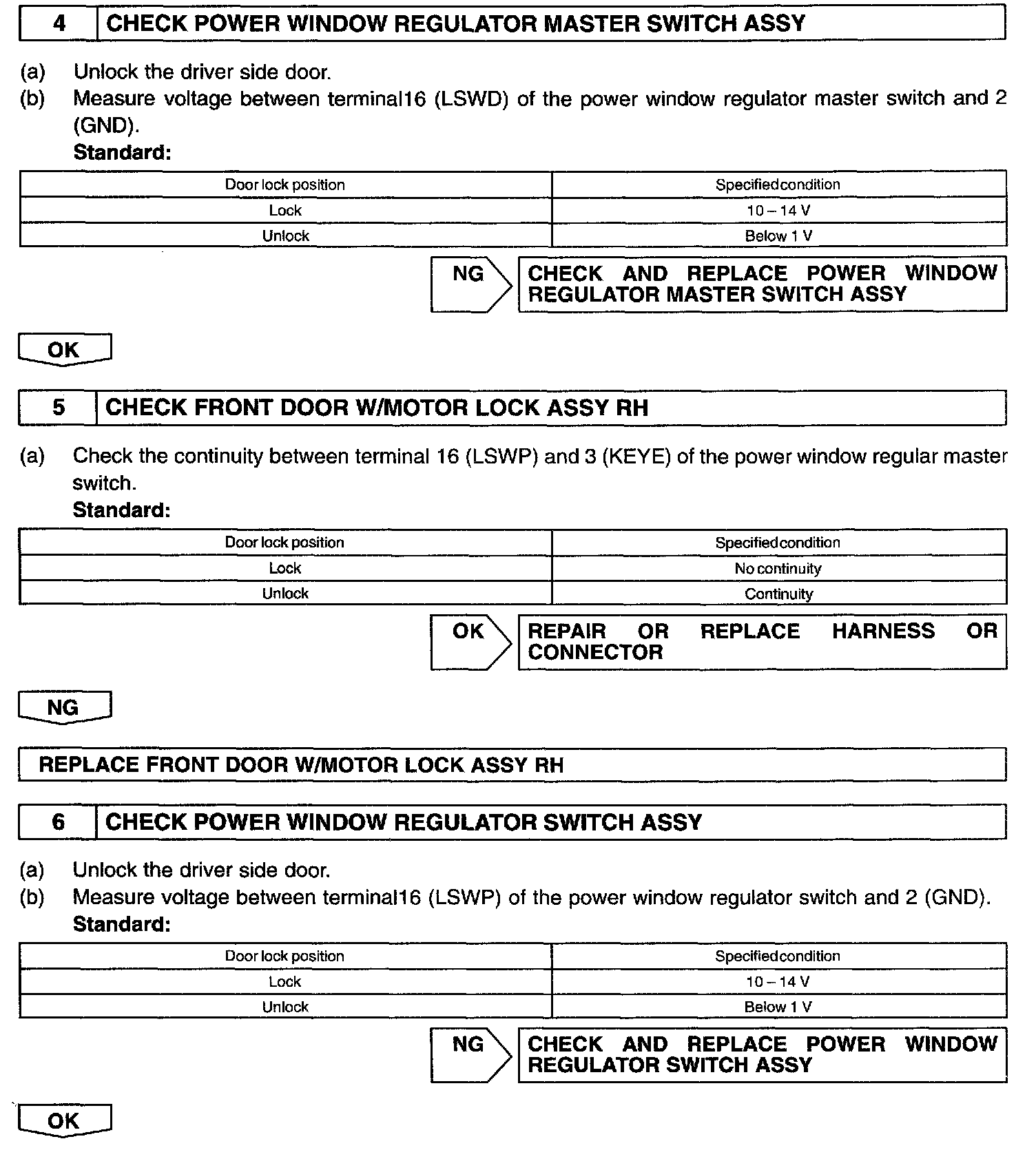

Step 4 - 6:

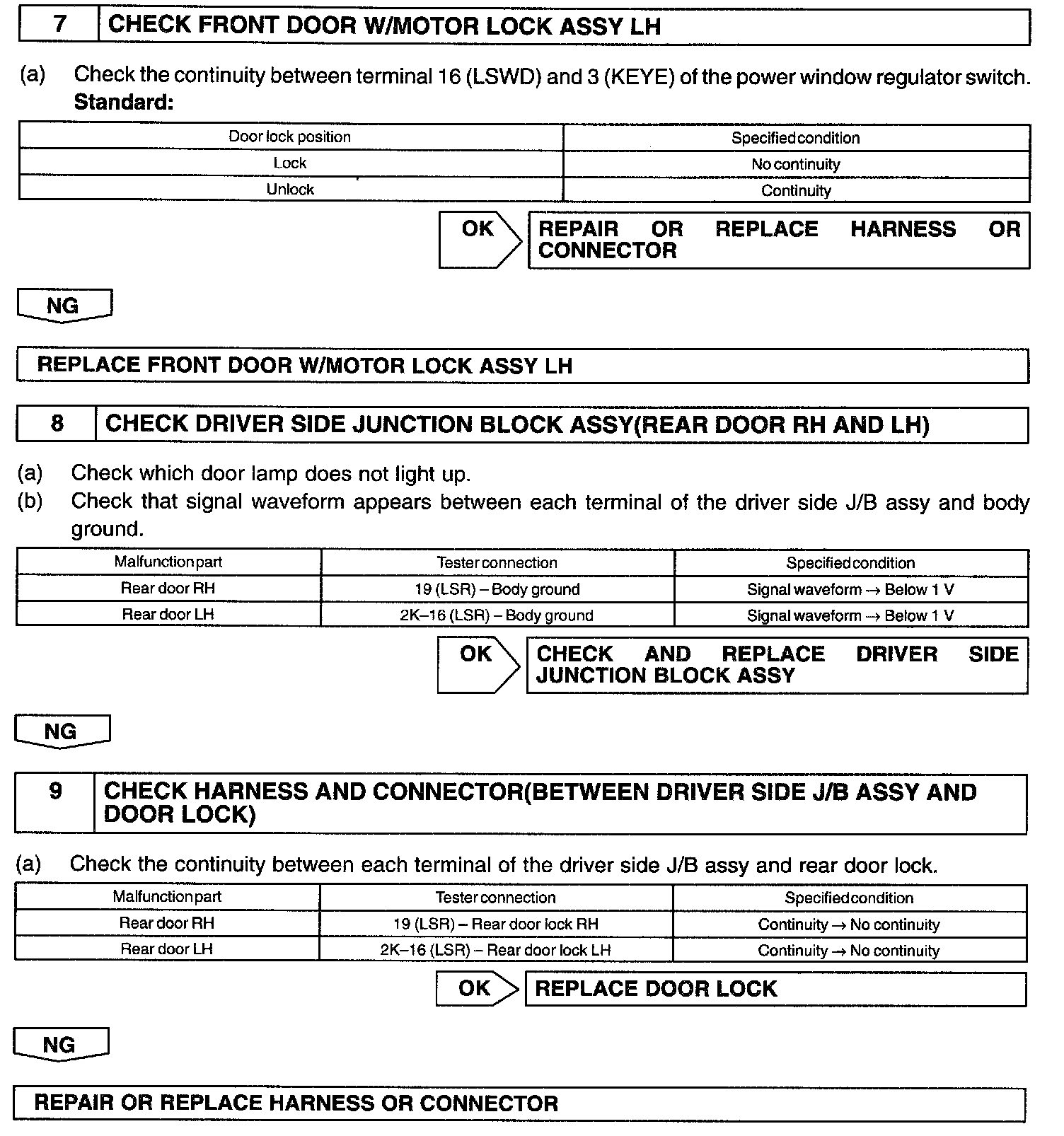

Step 7 - 9:




Step 10 - 12:




Step 13 - 15:




INSPECTION PROCEDURE
