Home >> Lexus >> 2002 >> ES 300 V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> Initial Set Control Function Operates, Headlamp Aiming Does Not >> Warning Lamp Goes Off

Warning Lamp Goes Off

INITIAL SET CONTROL FUNCTION OPERATES, BUT HEADLAMP AIMING DOES NOT OPERATE (WARNING LAMP GOES OFF)

Wiring Diagram:

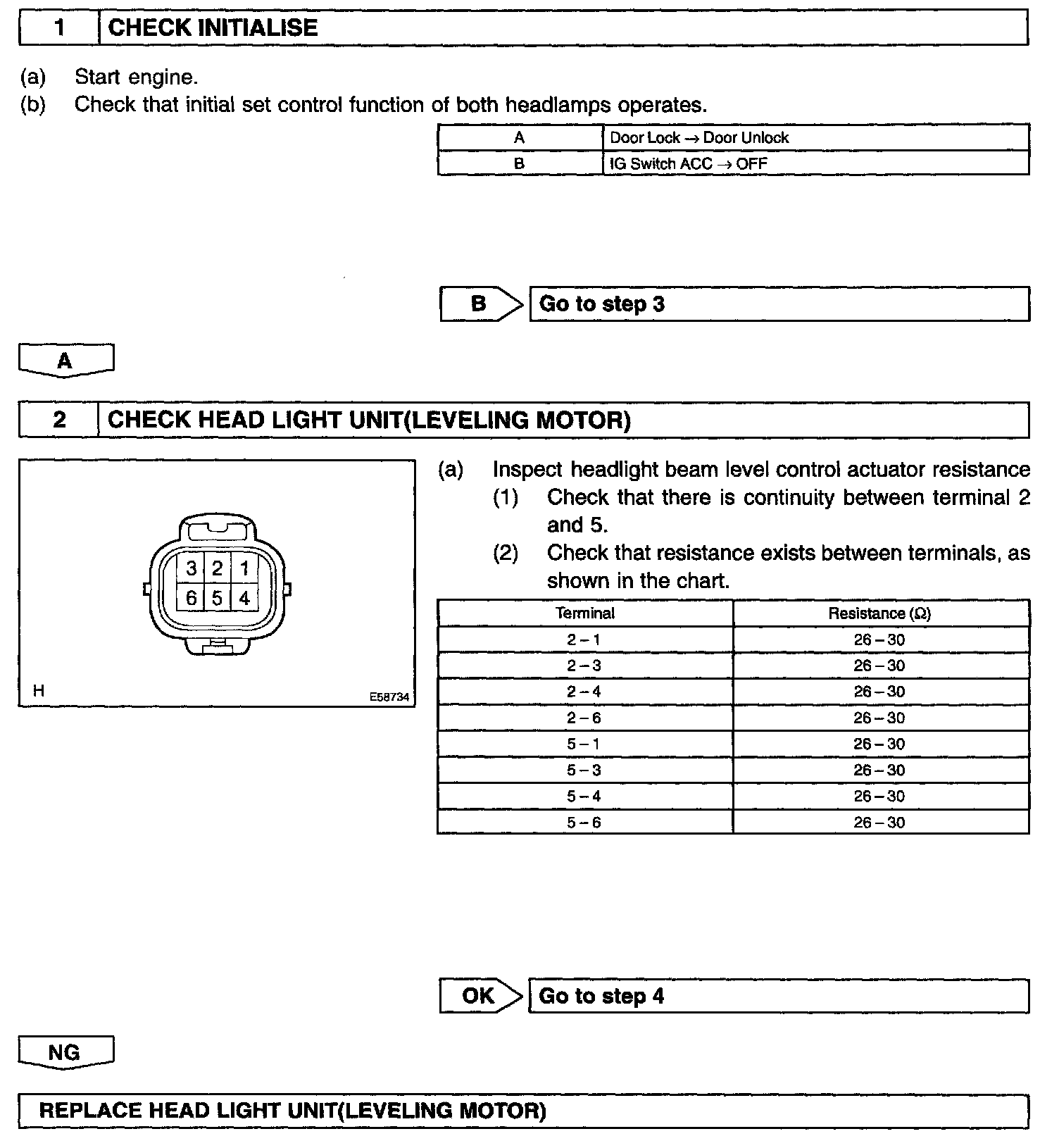

Step 1 - 2:




Step 3 - 5:




Step 6 - 7:




Step 8 - 9:




INSPECTION PROCEDURE
