Pinout Values and Diagnostic Parameters

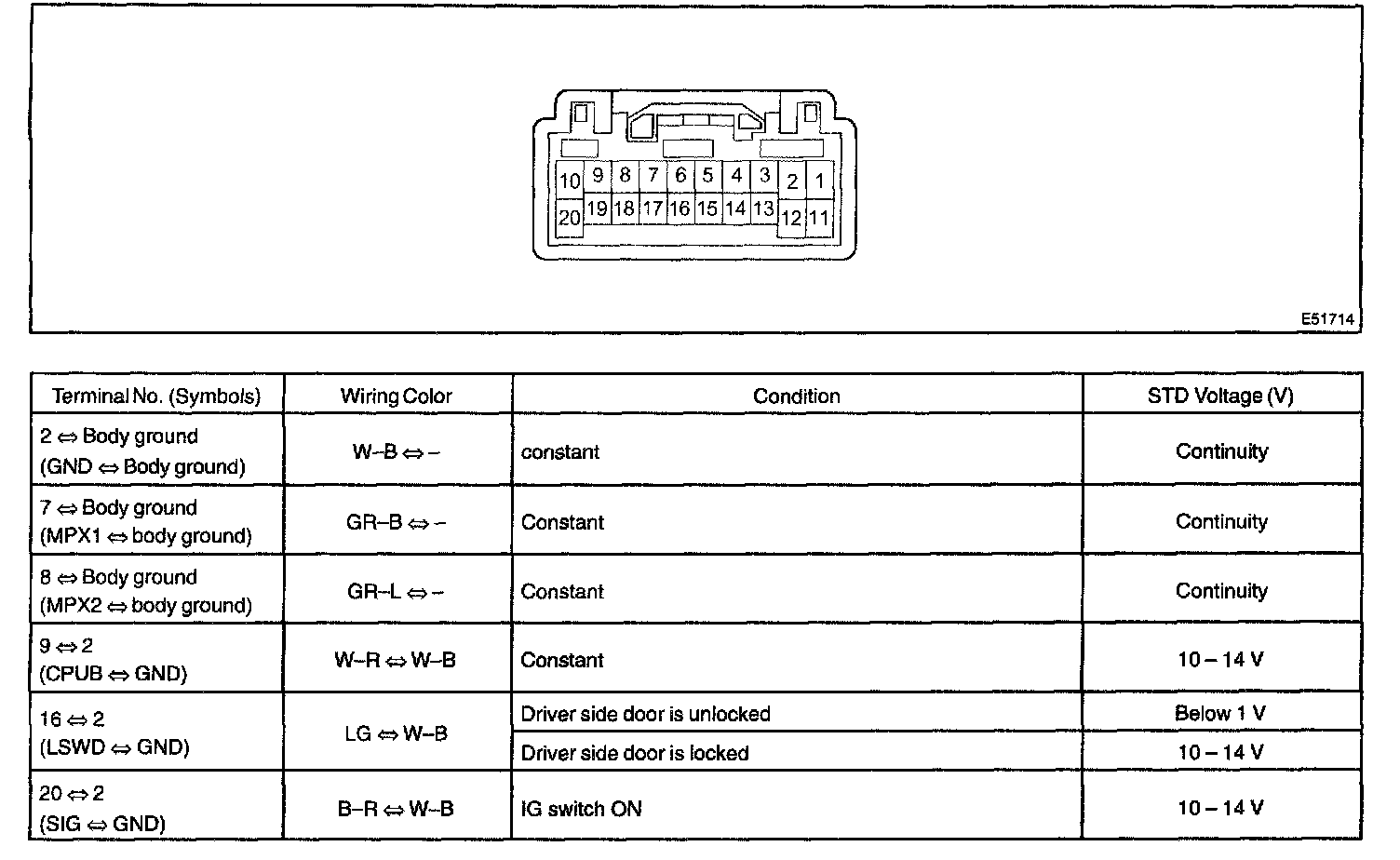

Terminals Of ECU/Pinouts - Multiplex Network Body Computer Part 1:

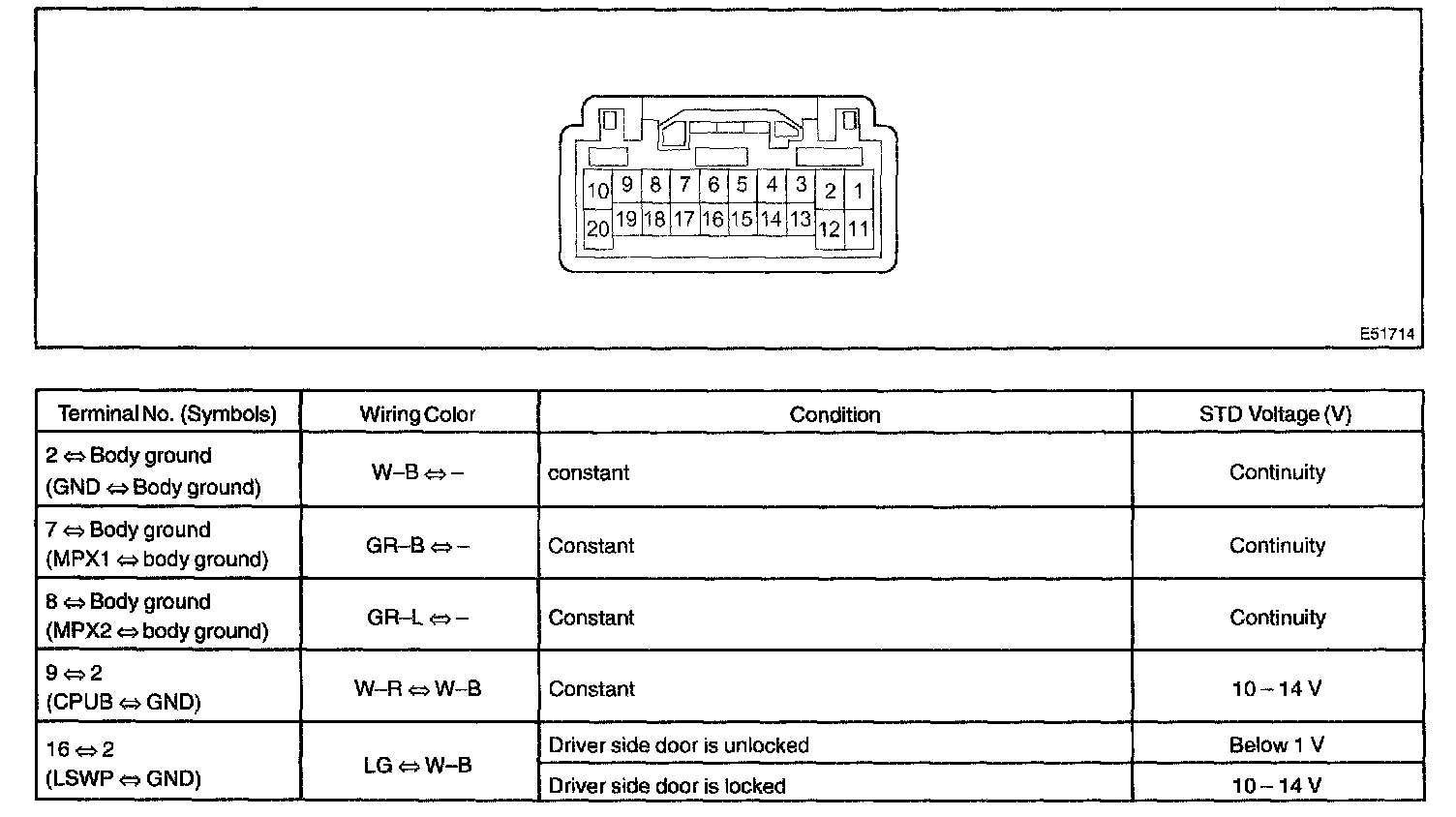

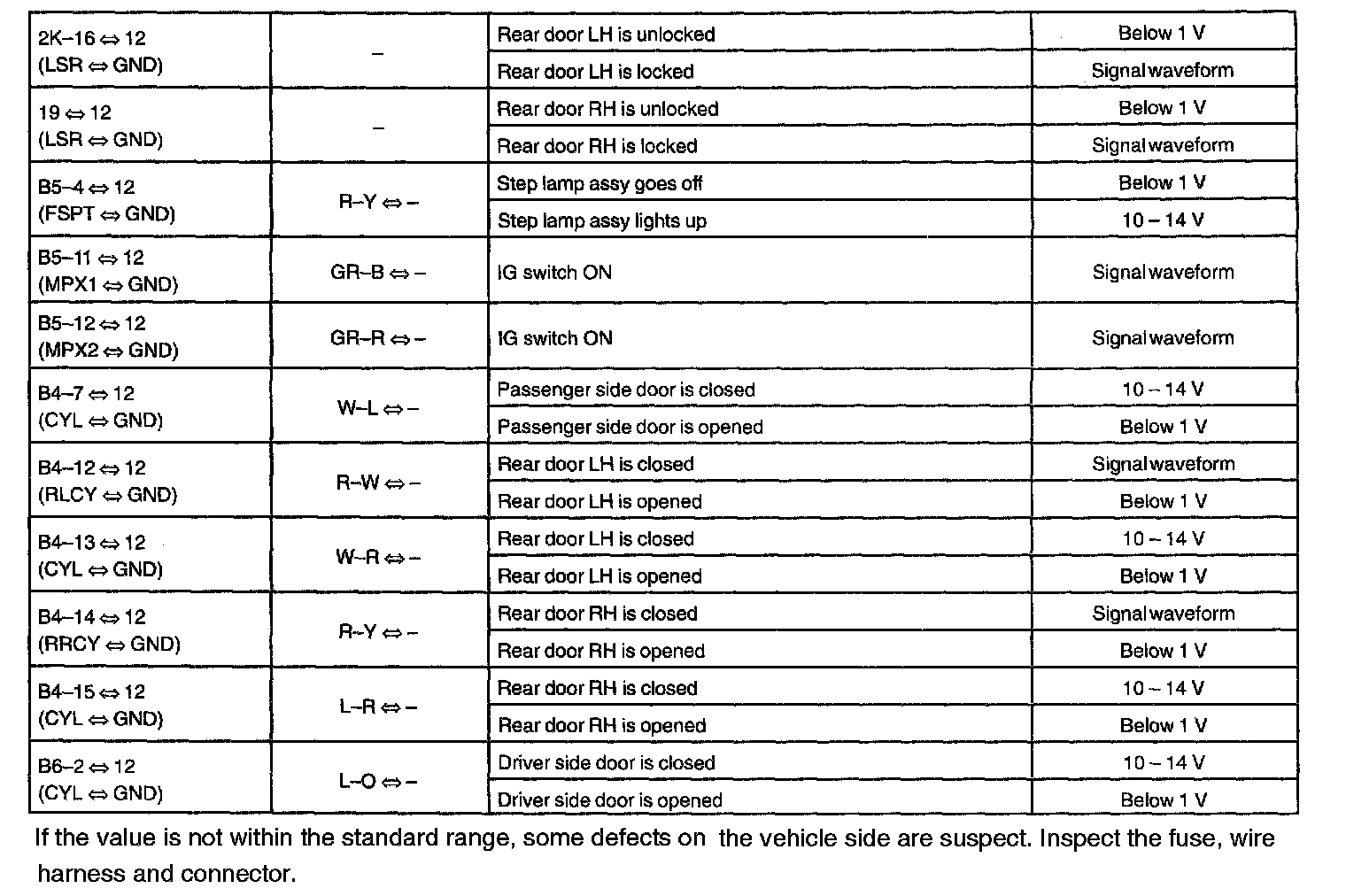

Pinouts - Multiplex Network Body Computer Part 2:



Terminals Of ECU - Headlight Beam Level Control ECU:



Oscilloscope Waveforms - Headlight Beam Level Control ECU:



Terminals Of ECU - Power Window Regulator Master Switch Assy:



Terminals Of ECU - Power Window Regulator Switch Assy:
