Fog/Driving Lamp: Adjustments

FOG LAMP UNIT LH

1. CHECK FOG LIGHT AIM




2. ADJUST FOG LIGHT AIM

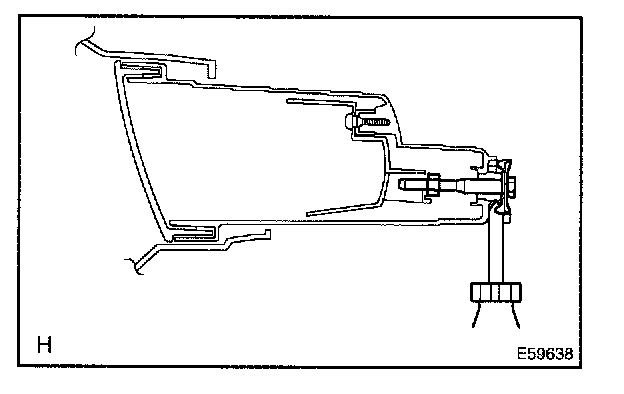

a. The fog light aim can be adjusted by moving the aiming screw in the vertical direction.

HINT: The optical aim moves upward when turning a screwdriver clockwise, while it moves downward when turning a screwdriver counterclockwise.
