Malfunction In Speedometer

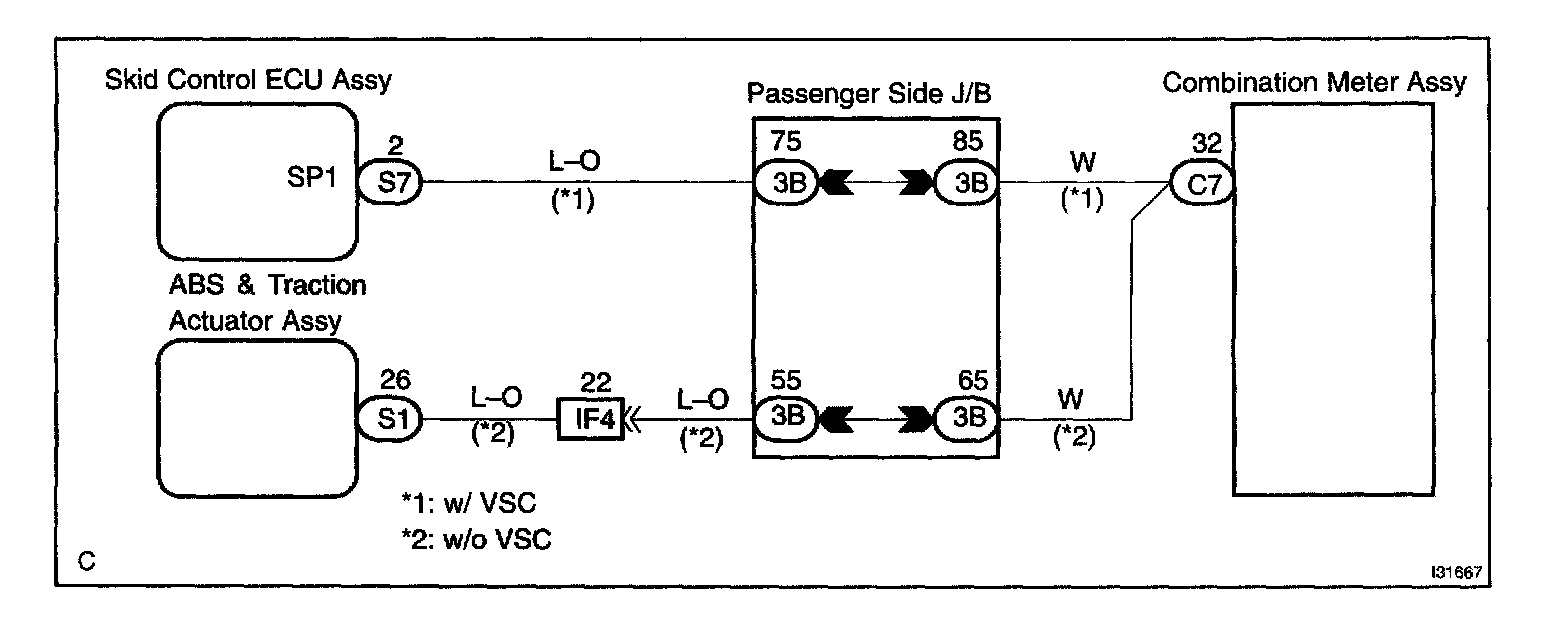

Wiring Diagram:






Step 1:

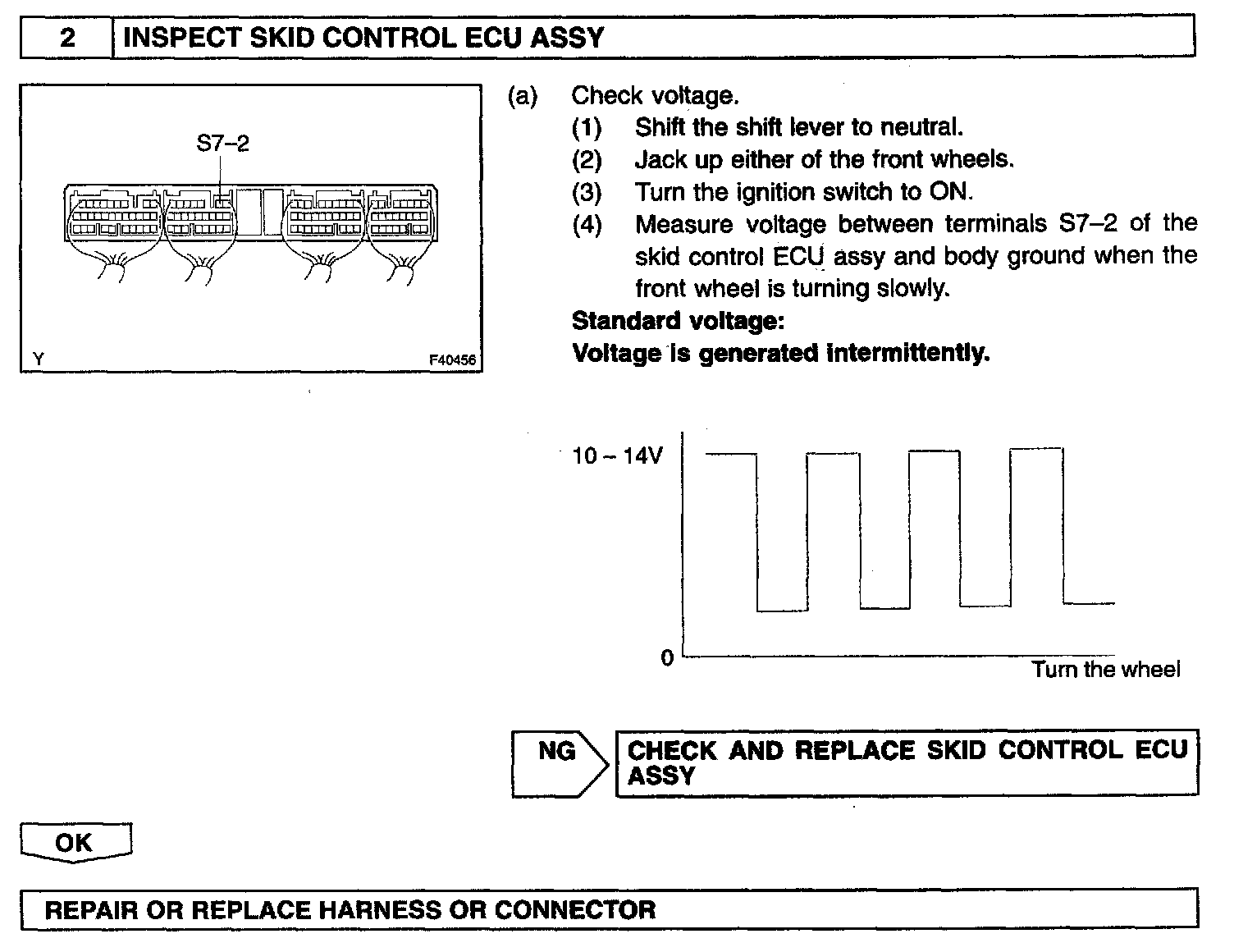

Step 2:




Step 3:




INSPECTION PROCEDURE
