On-Vehicle Inspection

1. INSPECT SPEEDOMETER







a. Check the operation.

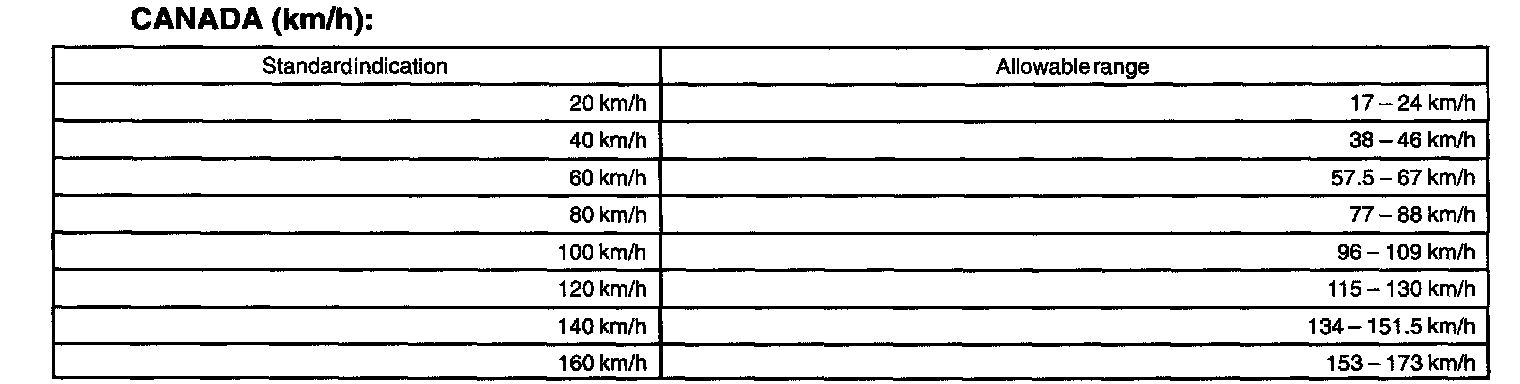

1. Using a speedometer tester, inspect the speedometer for allowable indication error and check the operation of the odometer.

NOTE: Tire wear and tire over or under inflation will increase the indication error.

2. Check the deflection width of the speed meter indicator.
Reference: Below 0.5 km/h (0.3 mph)




2. INSPECT OUTPUT SIGNAL OF VEHICLE SPEED
a. Check for standard signal.
1. While driving the vehicle at the speed of 10 km/h, check the voltage between the terminals C7-33 of the combination meter assy and body ground.

Standard: Fluctuation between 10 to 14 V or less is repeated 7 times within 1 sec.

NOTE: Check it with the ignition switch ON and the connector connected.




3. INSPECT TACHOMETER
a. Check the operation
1. Connect a tune-up test tachometer, and start the engine.

NOTE:
- Reversing the connection of the tachometer will damage the transistors and diodes inside.
- When removing or installing the tachometer, be careful not to drop or subject it to heavy shocks.

2. Compare the test and tachometer indications.




4. INSPECT FUEL RECEIVER GAUGE
a. Inspect the circuit.

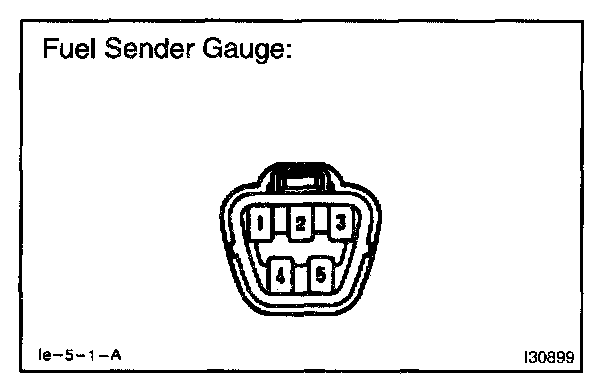

1. Disconnect the connector from the sender gauge.
2. Turn the ignition switch ON, then check the position of the receiver gauge needle.

Needle position: EMPTY

3. Connect the positive (+) lead from the three 1.5 V dry cell batteries to terminal 3 and negative (-) lead to terminal 1.
4. Disconnect the negative (-) terminal from battery and wait at least 60 seconds.
5. Connect the negative (-) terminal to the battery and turn the ignition switch to ON, then check the position of the receiver gauge needle.

Needle position: FULL

5. INSPECT FUEL LEVEL WARNING
a. Inspect the circuit.
1. Disconnect the connector from the sender gauge.
2. Turn the ignition switch ON, check the fuel level needle indicates EMPTY and fuel level warning lights light on.

6. INSPECT SEAT BELT WARNING LIGHT (Driver's seat)
a. Check the operation.
1. Turn the ignition switch ON and check that the warning light lights up.
2. Fasten the outer belt to the inner belt and check that the warning light lights out.
3. Disconnect the connector from the buckle switch and ground terminal on the wire harness side connector.
4. Turn the ignition switch ON and check that the warning light lights up.

7. INSPECT LOW OIL PRESSURE WARNING LIGHT
a. Inspect the circuit.
1. Disconnect the connector from the low oil pressure switch.
2. Turn the ignition switch ON.
3. Connect the terminal of wire harness side connector and ground, then check the warning low oil pressure warning light.

Low oil pressure warning light: Light on

8. INSPECT BRAKE WARNING LIGHT
a. Inspect the parking brake warning light.
1. Disconnect the connector from the parking brake switch and ground terminal on the wire harness side connector.
2. Turn the ignition switch ON and check that the warning light lights up.

b. Inspect the brake fluid level warning light.
1. Disconnect the connector from the brake fluid level warning switch and connect terminals on the wire harness side connector.
2. Turn the ignition switch ON and check that the warning light lights up.

9. INSPECT BRAKE FLUID LEVEL WARNING SWITCH
a. Inspect the continuity.
1. Remove the reservoir tank cap and strainer.
2. Disconnect the connector.
3. Check that the continuity exists between the terminals.

Float up (switch off): No continuity

4. Use syphon, etc., to take fluid out of the reservoir tank.
5. Check that the continuity exists between the terminals.

Float down (switch on): Continuity

6. Pour the fluid back in the reservoir tank.

10. INSPECT DRIVER'S SEAT BELT WARNING BUZZER
a. Check warning buzzer function.
1. Turn the ignition switch ON and check that the driver's seat belt warning sounds if the driver's seat belt is not fastened.
2. Check that the buzzer stop after about 4 to 8 seconds.

11. INSPECT KEY REMINDER WARNING BUZZER
a. Check warning buzzer function.
1. Turn the ignition switch ON and check that the key reminder warning sounds if the ignition key is insert the key cylinder and front driver side door is opened.

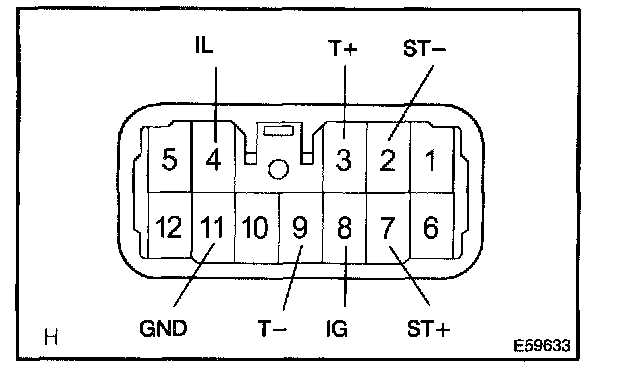

12. INSPECT LAMP FAILURE INDICATOR SENSOR
a. Check standard signal.
1. Check the voltage and the continuity between each terminal and body ground.

CAUTION: Do the above check as long as the stop lamp and the tail lamp are in normal condition.

Standard:

HINT:
- "Disconnect-vehicle side" represents for a check procedure to disconnect one of the connectors and check the vehicle side connector.
- "Connector connection" for a procedure to check behind the connector under the condition that the connector is connected.
