Canada - Instruments - Instrument Cluster, Direct Sunlight

Bulletin
0583

Issue Date
2003-01-29

Market
Canada

Reference
BE-02-009

Model
ES300

Year Range
2003, 2002

Component
BE

Subject:
COMBINATION METER IMPROVEMENT







Some owners of 2002-2003 model year ES 300 vehicles may complain of increased effort to confirm the position of the combination meter gauge needles in direct sunlight. An alternate combination meter has been developed to minimize this occurrence for those customers who experience the condition.

APPLICABLE VEHICLES:
2002 - 2003 model year ES 300 vehicles produced before the VINs shown below.

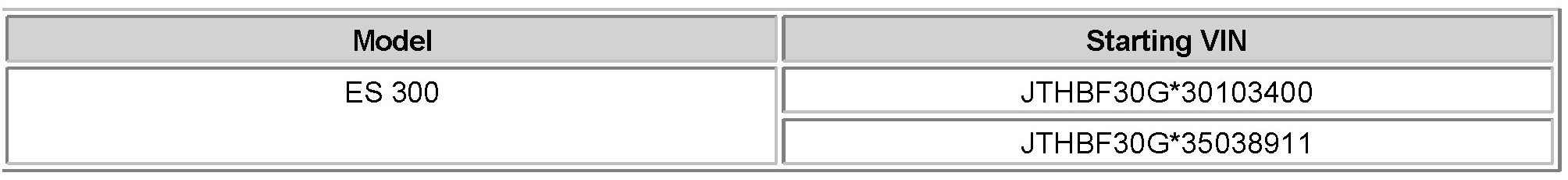

PRODUCTION CHANGE INFORMATION:

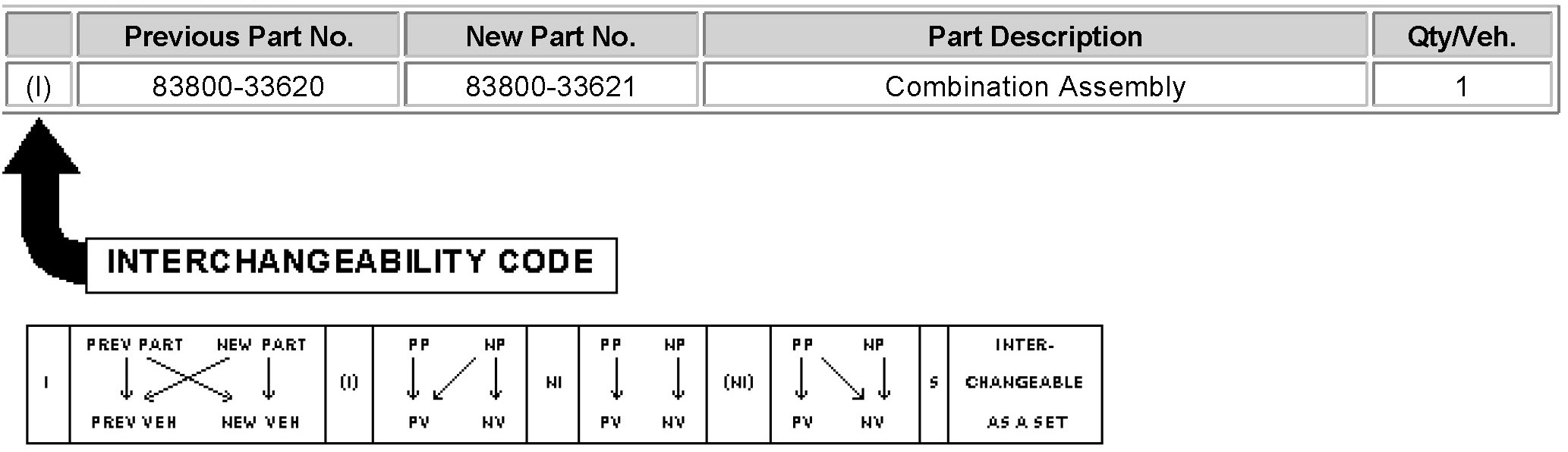

PARTS INFORMATION:

REPAIR PROCEDURE:

Remove and replace the combination meter as stated in the 2002 or 2003 ES 300 Repair Manuals, Volume 2, Instrument Panel/Meter.

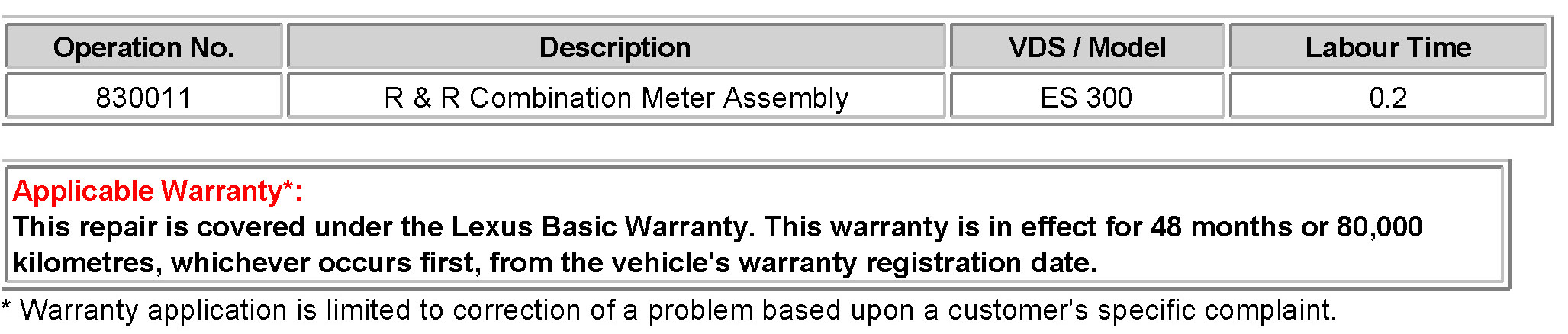

REPAIR TIME:


NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
