Compass - Initial Calibration During PDS

PRODUCT GENERAL INFORMATION
PG025-01

August 17, 2001

Title:
INITIAL CALIBRATION OF COMPASS DURING PDS

Models:
'02 ES 300

Introduction





Some 2002 model year ES 300 vehicles are equipped with a compass in the rear view mirror. Use the following procedure to complete initial calibration of the compass during the ROAD TEST section of Pre-Delivery Service (PDS).

Applicable Vehicles
^ 2002 model year ES 300 vehicles.

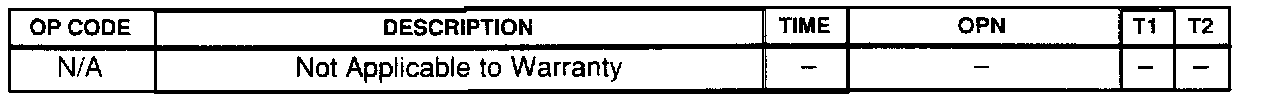

Warranty Information

ROAD TEST
Compass Calibration

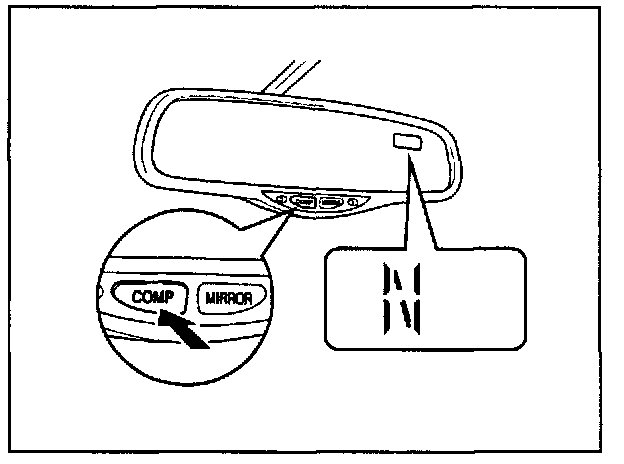

1. Turn the ignition switch to the "ON" position and check that the direction (N, NE, E, SE, S, SW, W or NW) appears on the compass display.

NOTE:

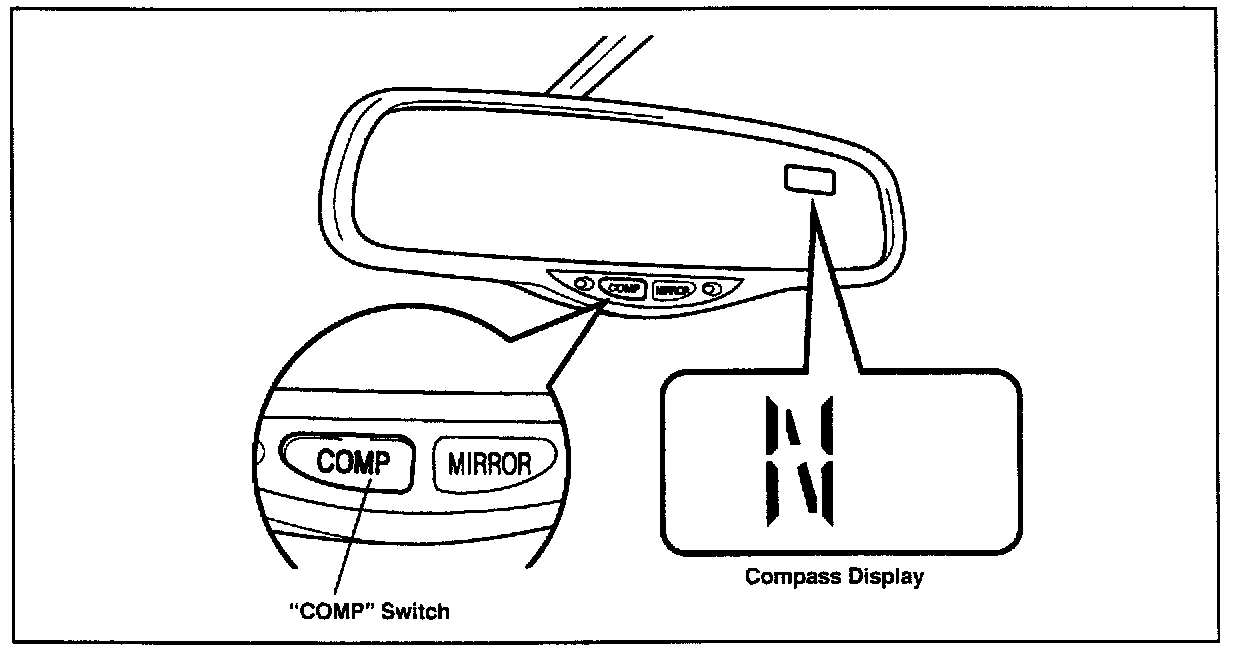

Pushing the "COMP" switch turns the compass display "ON" or "OFF."

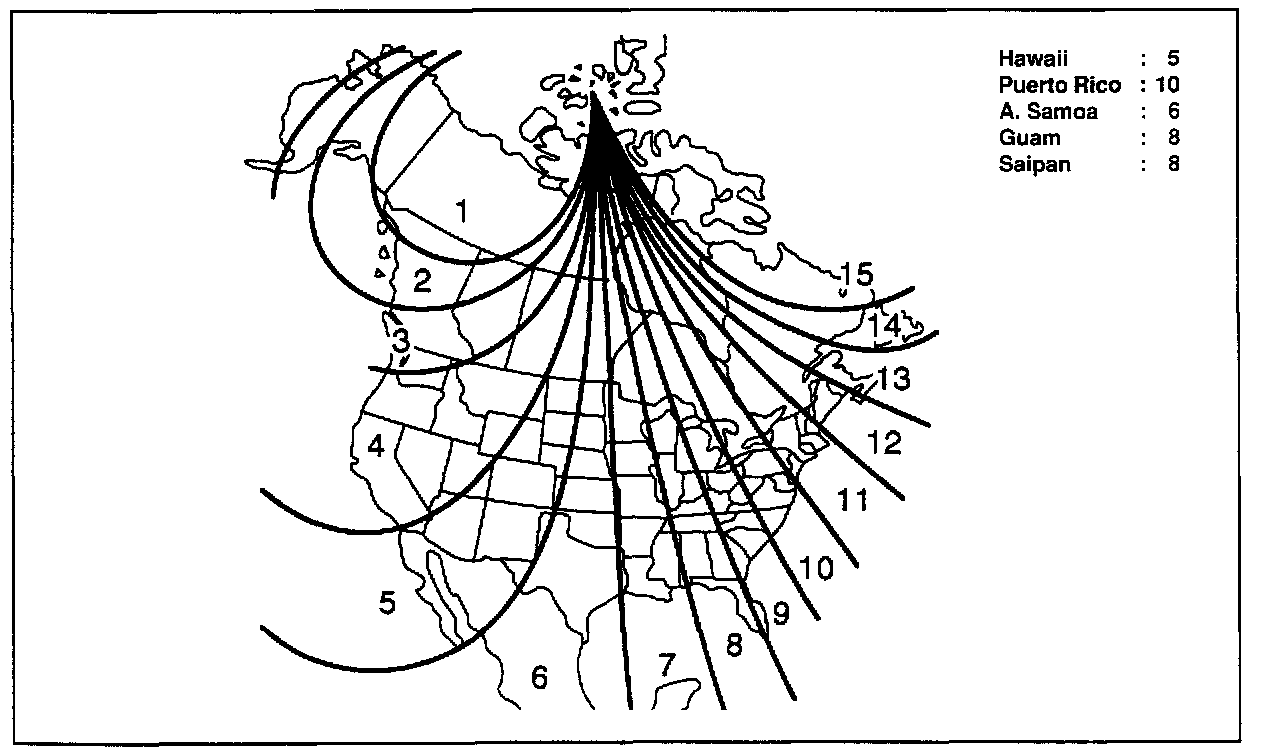

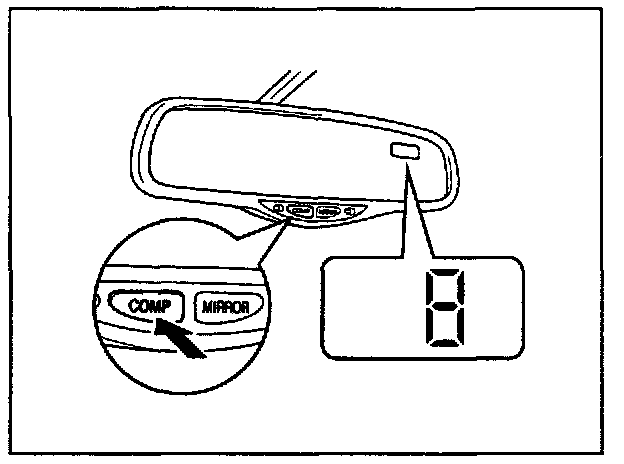

2. Push the "COMP" switch for about 3 seconds until the zone number (1-15) appears on the display. Then push the switch to select the number of the zone where the vehicle is located.





See the shown for zone reference.

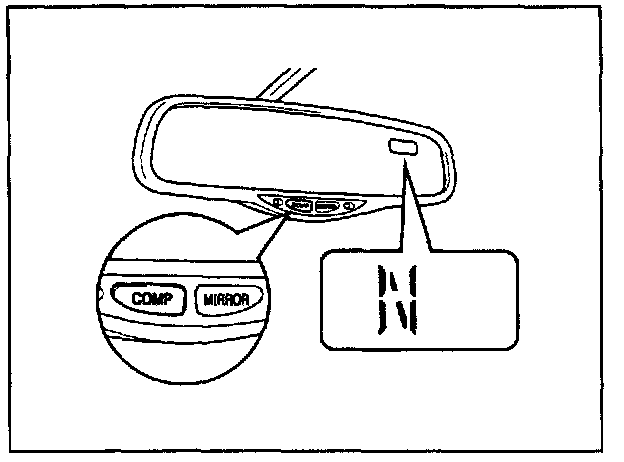

3. Check that the direction (N, NE, E, SE, S, SW, W or NW) appears several seconds after adjustment.





4. Start the engine and push the switch for 6 seconds until "C" appears on the display.

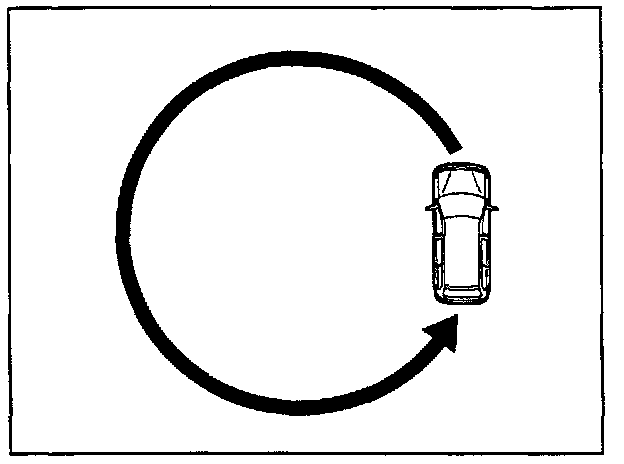

5. Drive the vehicle at 5 mph, or less, in a circle until the direction is displayed. If there is not enough space to drive in a circle, drive around the block until the direction is displayed.





After driving in 1 to 3 circles in the above method, calibration is complete with the direction shown on the display.

NOTE:
^ Do not perform calibration of the compass in a place where the earth's magnetic field is subject to interference by artificial magnetic fields (underground parking, under a steel tower, between buildings, roof parking, near a railroad crossing, near a large vehicle, etc.).

^ During calibration, do not operate electric systems (moon roof, power windows, etc.) as they may interfere with the calibration.
