Pinout Values and Diagnostic Parameters
TERMINALS OF ECU1. INSPECT MULTIPLEX BODY COMPUTER ASSY
a. Inspect the body ECU.

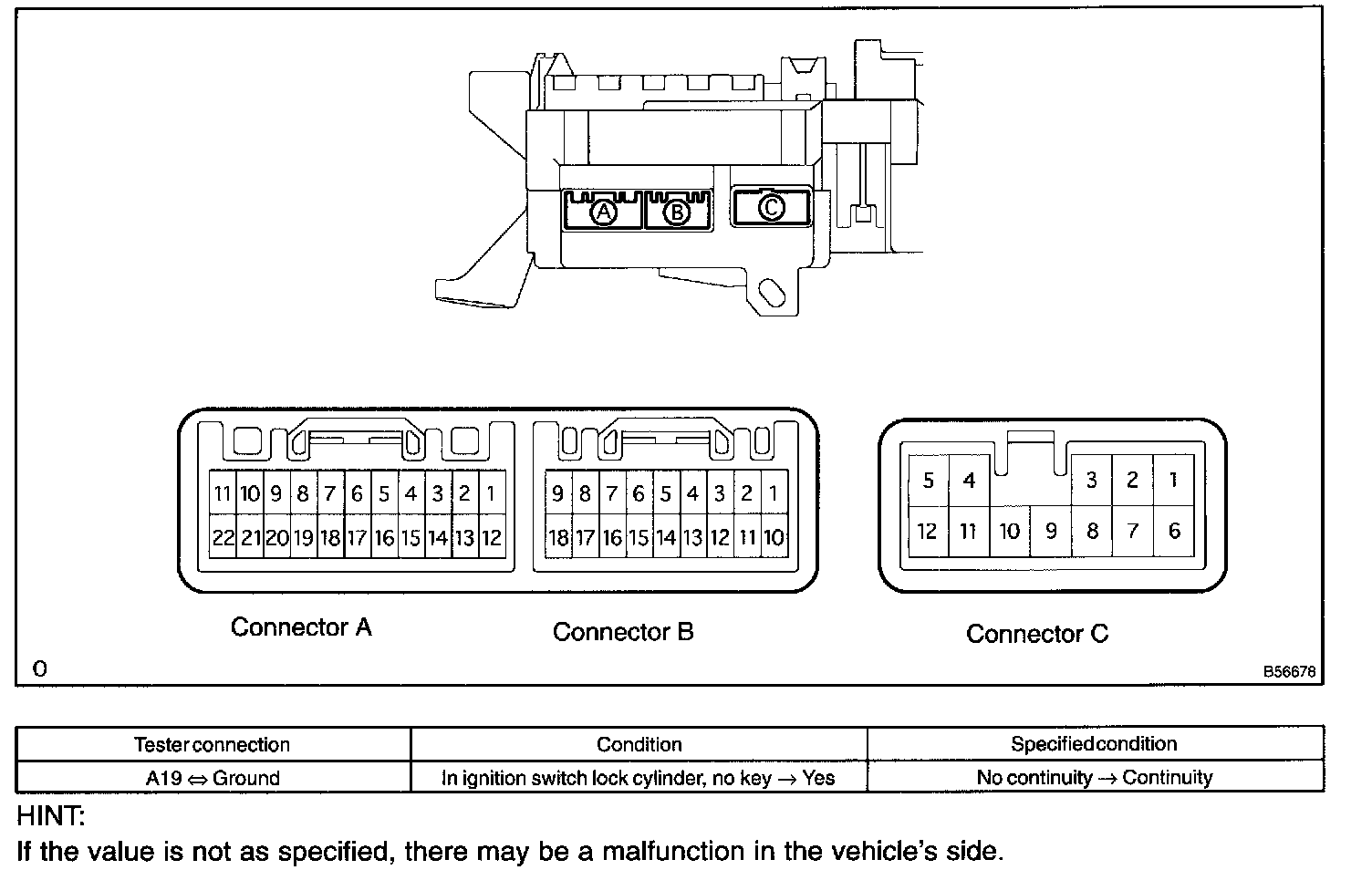

Terminals Of ECU:
1. Disconnect the body ECU connectors A.
2. Inspect the voltage of each terminal of the vehicle's side connector.
Pinouts:

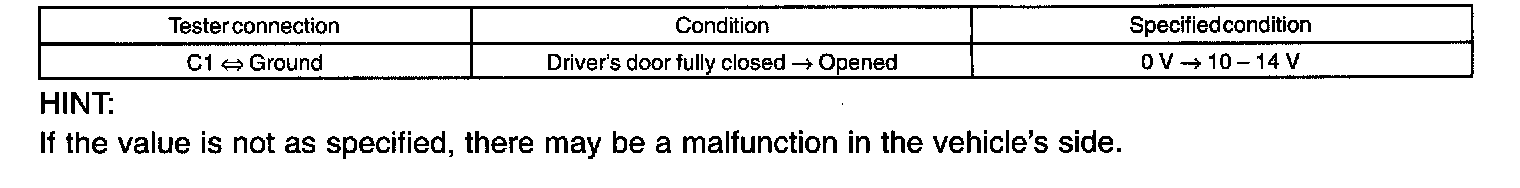

3. Connect the connector.
2. INSPECT DRIVER SIDE JUNCTION BLOCK ASSY
a. Inspect the body ECU.

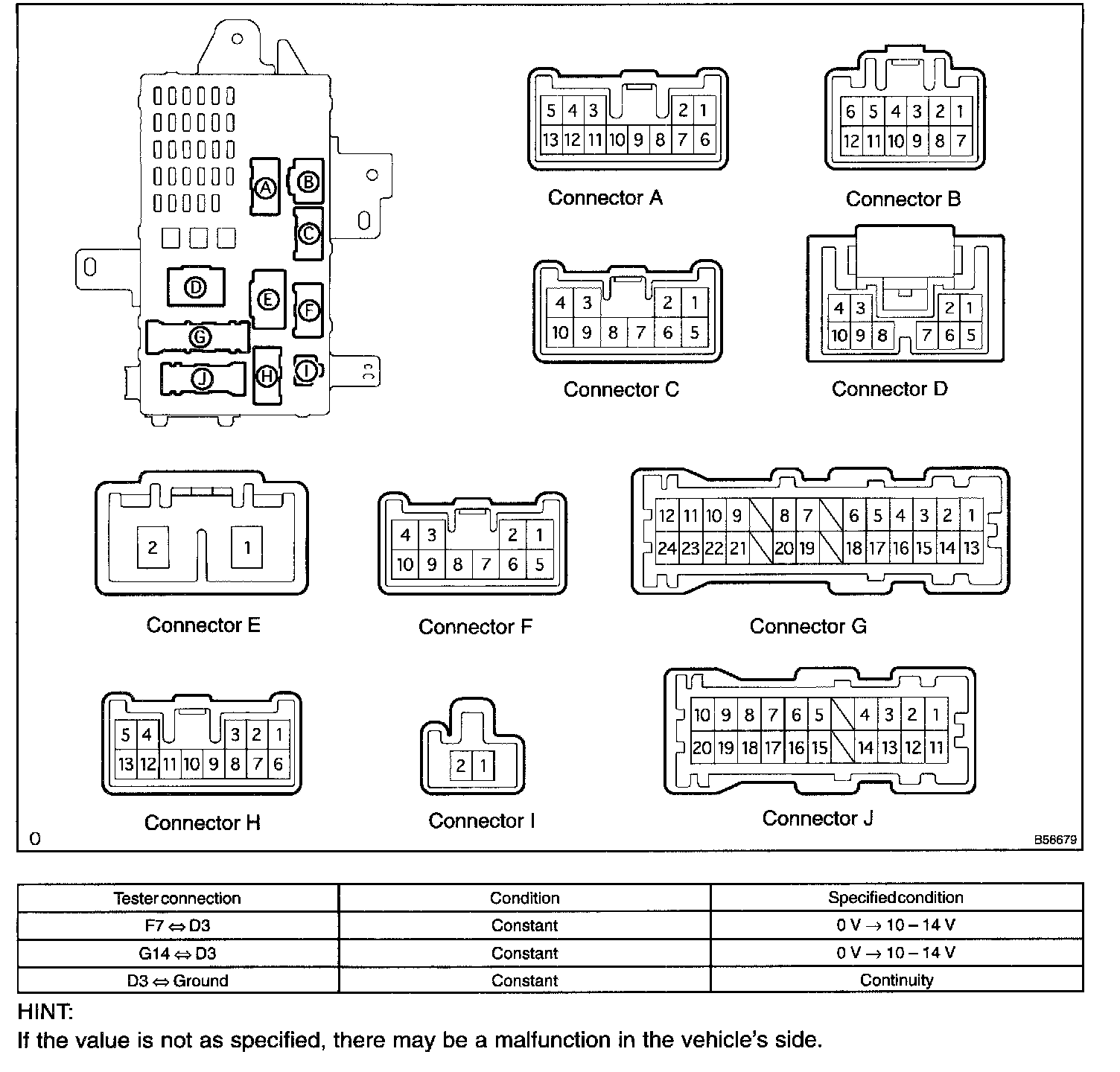

1. Disconnect the driver side junction block assembly connectors D, G, H and J.
2. Inspect the voltage of each terminal of the vehicle's side connector.
