Automatic Transmission/Transaxle
Automatic Transmission/Transaxle

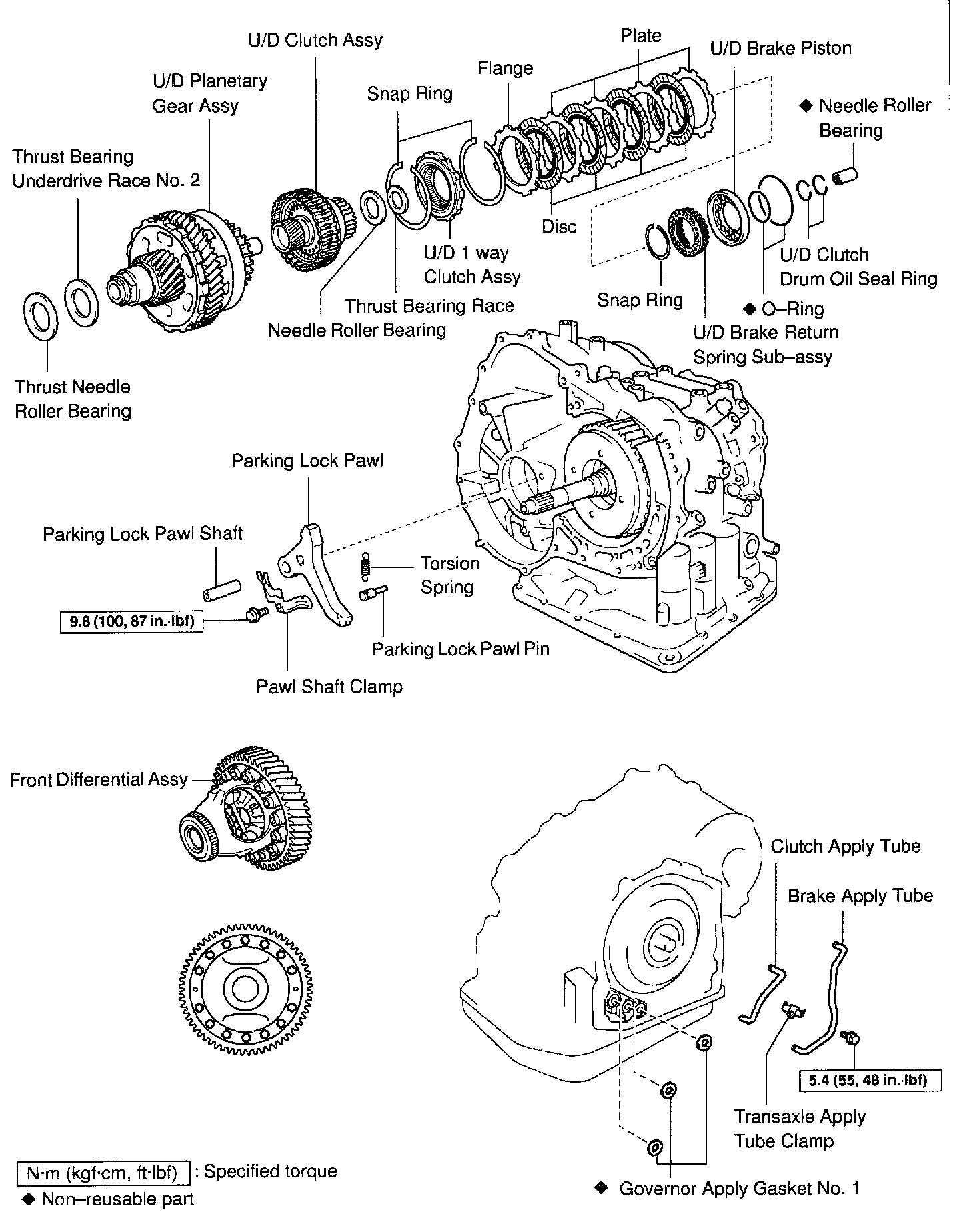

AUTOMATIC TRANSMISSION COMPONENT PARTS OVERHAUL W/ RELATED COMPONENTS
