Parking Brake Cable No. 4
REPLACEMENTHINT: COMPONENTS: See Diagrams; Exploded Views and Instrument Panel, Gauges and Warning Indicators.
1. REMOVE CONSOLE PANEL UPPER REAR
2. REMOVE CONSOLE BOX CARPET
3. REMOVE RR CONSOLE BOX
4. REMOVE CONSOLE BOX MOUNTING BRACKET NO. 2
5. REMOVE YAW RATE SENSOR (W/ VSC)
6. REMOVE PARKING BRAKE CABLE ASSEMBLY NO. 4

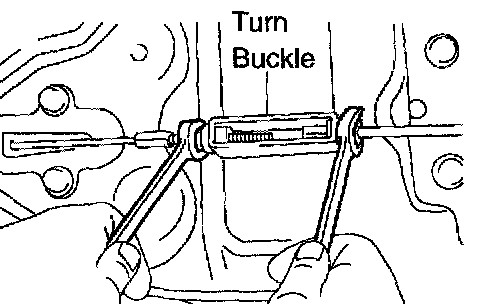

a. Loosen the turn buckle, disconnect the parking brake cable assembly No. 4 from the parking brake cable assembly No.
b. Disconnect the parking brake cable assembly No. 4 from the parking brake equalizer.

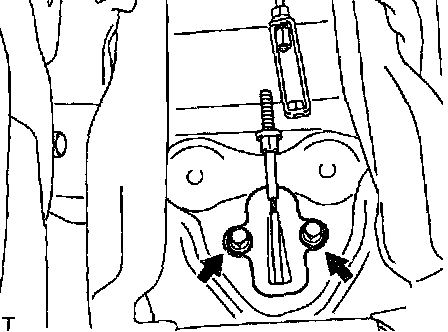

c. Remove the 2 bolts and parking brake cable assembly No. 4.
7. INSTALL PARKING BRAKE CABLE ASSEMBLY NO. 4

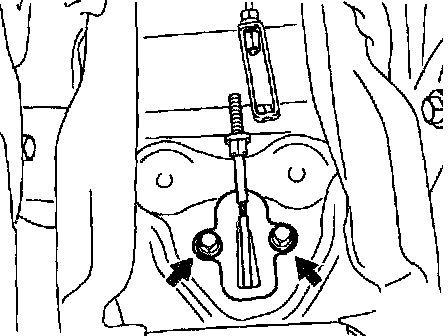

a. Install the parking brake cable No. 4 with the 2 bolts.
Torque: 12.5 Nm (128 kgf-cm, 9 ft. lbs.)
b. Connect the parking brake cable assembly No. 4 to the parking brake equalizer.

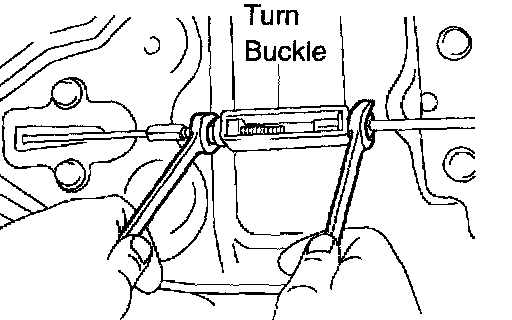

c. Tighten the turn buckle, connect the parking brake cable assembly No. 4 to the parking brake cable assembly No. 1.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
8. INSTALL YAW RATE SENSOR (W/ VSC)
9. INSTALL CONSOLE BOX MOUNTING BRACKET NO. 2
10. INSTALL RR CONSOLE BOX
11. INSTALL CONSOLE BOX CARPET
12. INSTALL CONSOLE PANEL UPPER REAR
13. INSPECT AND ADJUST PARKING BRAKE PEDAL TRAVEL
14. CHECK VSC SENSOR SIGNAL (W/ VSC)
