Parking Brake Cable No. 3
REPLACEMENTHINT:
- For parking brake cable No. 2, employ the same procedure to the RH side.
1. REMOVE REAR WHEEL
2. REMOVE REAR DISC BRAKE CALIPER ASSEMBLY, LH
a. Remove the 2 bolts and separate the rear disc brake caliper assembly LH.
HINT: Do not the flexible hose from the brake caliper assembly LH.
3. REMOVE REAR DISC
4. REMOVE PARKING BRAKE SHOE RETURN TENSION SPRING
5. REMOVE PARKING BRAKE SHOE STRUT COMPRESSION SPRING
6. REMOVE PARKING BRAKE SHOE STRUT LH
7. REMOVE PARKING BRAKE SHOE
8. REMOVE PARKING BRAKE CABLE HEAT INSULATOR
a. Remove the 3 nuts and parking brake heat insulator.
9. REMOVE PARKING BRAKE CABLE ASSEMBLY NO. 3

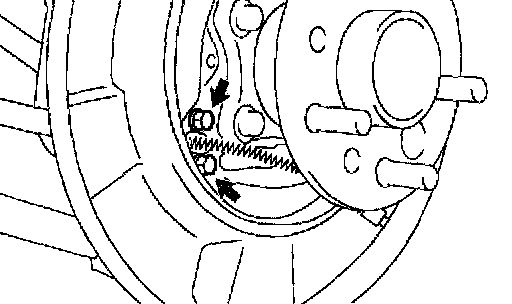

a. Remove the 2 bolts and disconnect the parking brake cable assembly No. 3 from the backing plate.

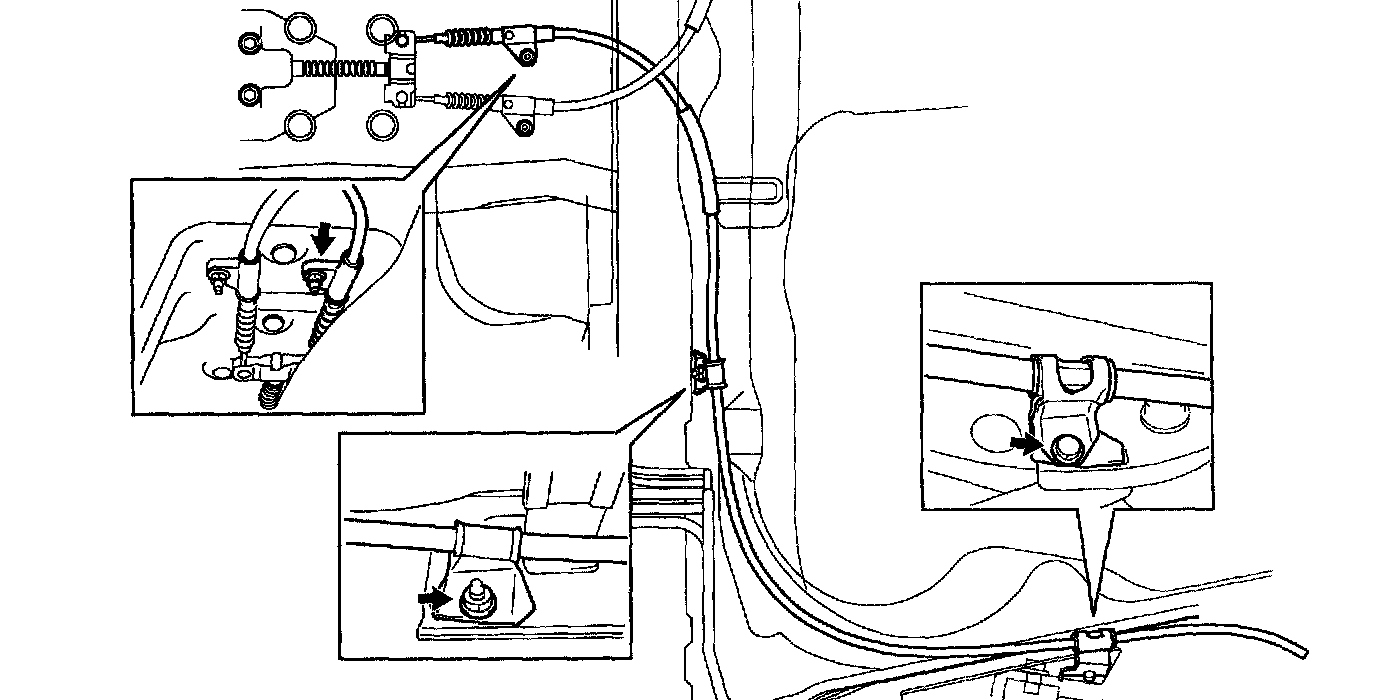

b. Remove the 2 nuts, bolt and parking brake cable assembly No. 3.
c. Disconnect the parking brake cable assembly No. 3 from the parking brake equalizer.
10. INSTALL PARKING BRAKE CABLE ASSEMBLY NO. 3
a. Connect the parking brake cable assembly No. 3 to the parking brake equalizer.

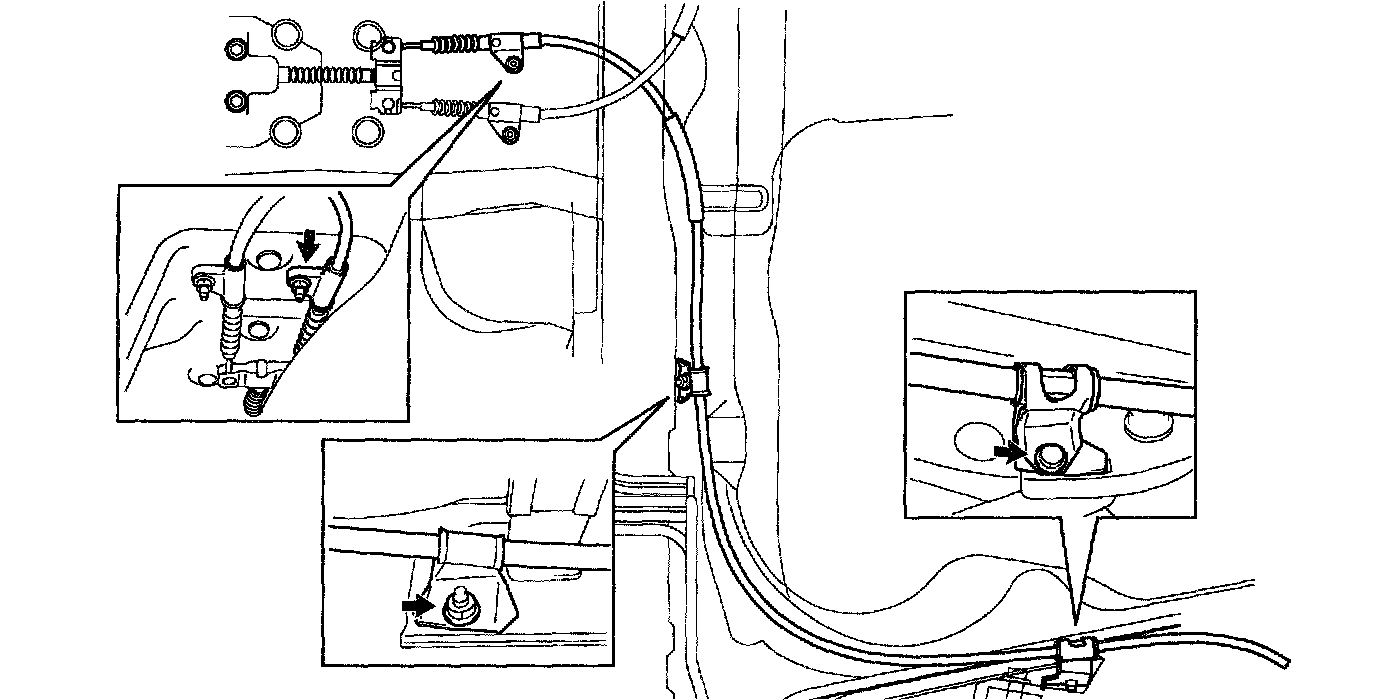

b. Install the parking brake cable assembly No. 3 with the 2 nuts and bolt.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
c. Install the parking brake cable assembly No. 3 with the 2 bolts to the backing plate.
Torque: 7.8 Nm (80 kgf-cm, 69 inch lbs.)
11. INSTALL PARKING BRAKE CABLE HEAT INSULATOR
a. Install the parking brake heat insulator with the 3 nuts.
Torque: 5.4 Nm (55 kgf-cm, 48 kgf-cm)
12. APPLICATION HIGH TEMPERATURE GREASE
13. INSTALL PARKING BRAKE SHOE
14. INSTALL PARKING BRAKE SHOE STRUT LH
15. INSTALL PARKING BRAKE SHOE STRUT COMPRESSION SPRING
16. INSTALL PARKING BRAKE SHOE RETURN TENSION SPRING
17. CHECK PARKING BRAKE INSTALLATION
18. INSTALL REAR DISC
19. ADJUST PARKING BRAKE SHOE CLEARANCE
20. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY, LH
a. Install the rear disc brake caliper with the 2 bolts.
Torque: 47 Nm (480 kgf-cm, 35 ft. lbs.)
21. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
22. INSPECT AND ADJUST PARKING BRAKE PEDAL TRAVEL
