Parking Brake Cable No. 1
REPLACEMENTHINT: COMPONENTS: See Diagrams; Exploded Views and Instrument Panel, Gauges and Warning Indicators.
1. REMOVE FRONT DOOR SCUFF PLATE RH
2. REMOVE FRONT DOOR SCUFF PLATE LH
3. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY UPPER
4. REMOVE INSTRUMENT PANEL INSERT SUB-ASSEMBLY LOWER LH
5. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO. 1
6. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY LOWER
7. REMOVE CONSOLE PANEL UPPER REAR
8. REMOVE CONSOLE BOX CARPET
9. REMOVE RR CONSOLE BOX
10. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
11. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
12. REMOVE AIR DUCT REAR NO. 1
13. REMOVE AIR DUCT REAR NO. 2
14. REMOVE CONSOLE BOX DUCT NO. 1
15. REMOVE YAW RATE SENSOR (W/ VSC)
16. REMOVE PARKING BRAKE CABLE ASSEMBLY NO. 1

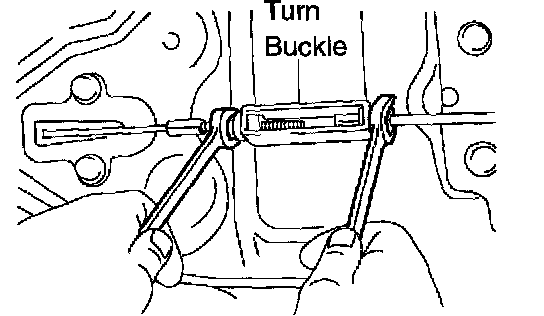

a. Loosen the turn buckle, disconnect the parking brake cable assembly No. 1 from the parking brake cable assembly No. 4.
b. Remove the 2 bolts and console box mounting bracket.

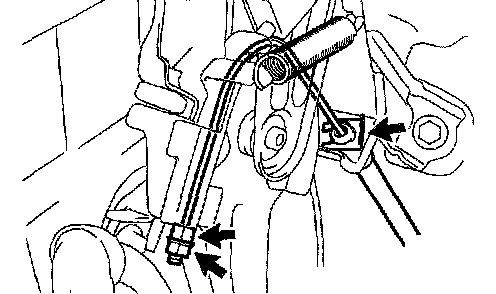

c. Remove the lock nut, adjusting nut and clip, then disconnect the parking brake cable assembly No. 1 from the parking brake control pedal assembly.

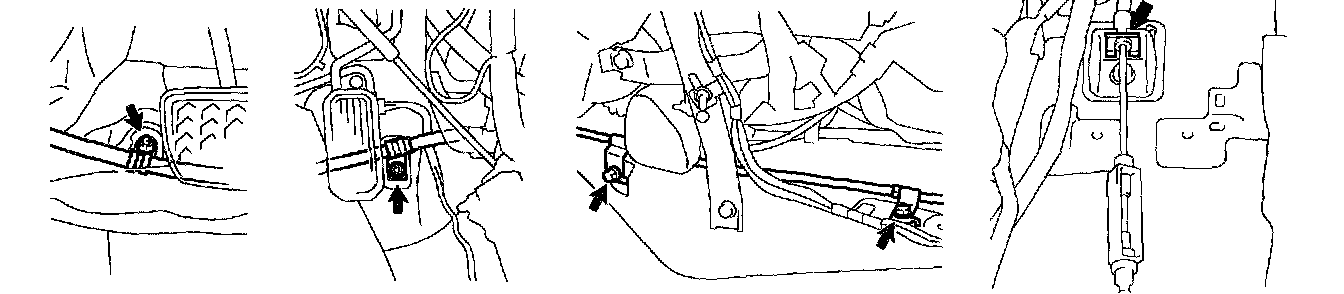

d. Remove the 2 nuts, 2 bolts, clip and parking brake cable assembly No. 1.
17. INSTALL PARKING BRAKE CABLE ASSEMBLY NO. 1

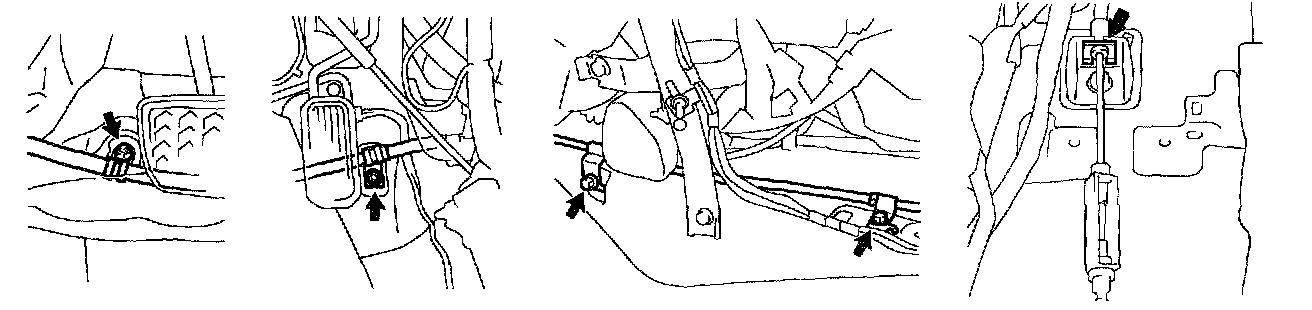

a. Install the parking brake cable assembly No. 1 with the 2 nuts, 2 bolts and clip.

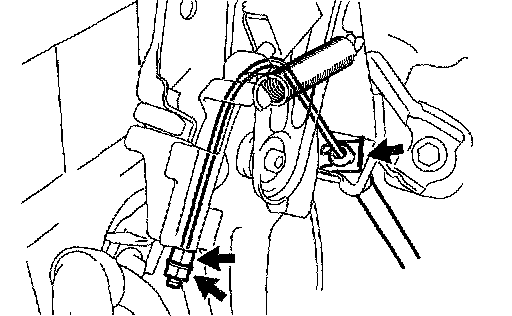

b. Install the parking brake cable assembly No. 1 with the clip, adjusting nut and lock nut to the parking brake control pedal assembly.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
c. Install the console box mounting bracket No. 2 with the 2 bolts.
Torque: 12.5 Nm (128 kgf-cm, 9 ft. lbs.)

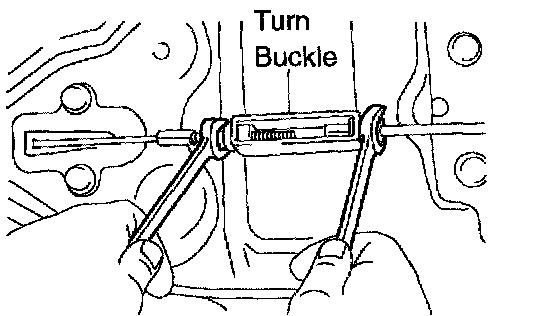

d. Tighten the turn buckle, connect the parking brake cable assembly No. 1 to the parking brake cable assembly No. 4.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
18. INSTALL YAW RATE SENSOR (W/ VSC)
19. INSTALL CONSOLE BOX DUCT NO. 1
20. INSTALL AIR DUCT REAR NO. 2
21. INSTALL AIR DUCT REAR NO. 1
22. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
23. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
24. INSTALL RR CONSOLE BOX
25. INSTALL CONSOLE BOX CARPET
26. INSTALL CONSOLE PANEL UPPER REAR
27. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY LOWER
28. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO. 1
29. INSTALL INSTRUMENT PANEL INSERT SUB-ASSEMBLY LOWER LH
30. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY UPPER
31. INSTALL FRONT DOOR SCUFF PLATE LH
32. INSTALL FRONT DOOR SCUFF PLATE RH
33. INSPECT AND ADJUST PARKING BRAKE PEDAL TRAVEL
34. CHECK VSC SENSOR SIGNAL (W/ VSC)
