ABS and TRAC Actuator
REPLACEMENT1. DRAIN BRAKE FLUID
NOTICE: Wash off the brake fluted immediately if it comes into contact with a painted surface.
2. REMOVE BRAKE ACTUATOR WITH BRACKET
a. Slide the clip and disconnect the actuator No. 1 hose from the actuator.
b. Disconnect the master cylinder pressure sensor connector and harness clamp.

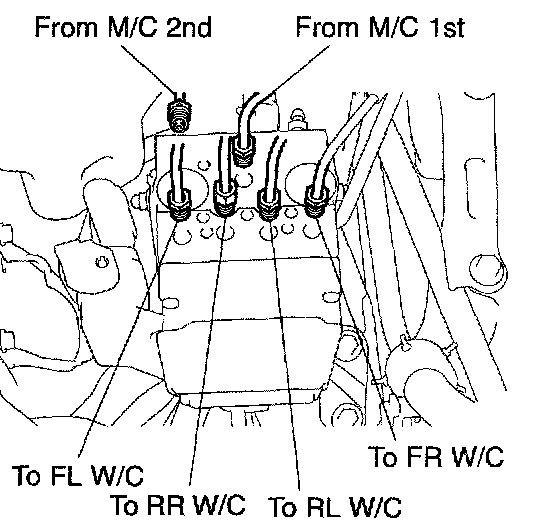

c. Using SST, disconnect the 6 brake lines from the actuator.
SST 09023-00100
d. Use tags or make a memo to identify the place to reconnect.
e. Disconnect the actuator connector.

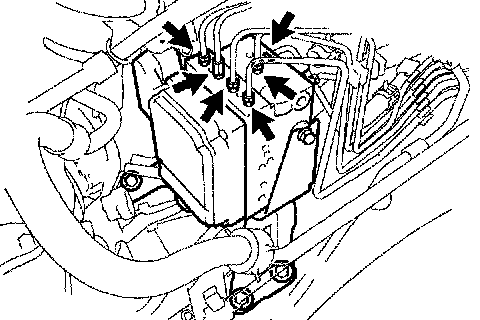

f. Remove the 3 nuts and brake actuator with bracket.
3. REMOVE ABS & TRACTION ACTUATOR ASSEMBLY
a. Remove the 2 nuts and ABS & TRACTION actuator from the bracket.
b. Remove the 2 holders and 3 cushions from the actuator.
4. INSTALL ABS & TRACTION ACTUATOR ASSEMBLY
a. Install the 3 cushions and 2 holders to the ABS & TRACTION actuator.
b. Install the actuator to the bracket with the 2 nuts.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
5. INSTALL BRAKE ACTUATOR WITH BRACKET

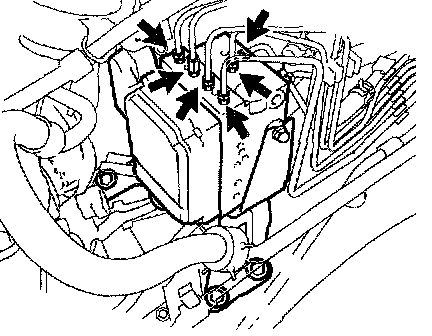

a. Install the brake actuator with the 3 nuts.
Torque: 19 Nm (194 kgf-cm, 14 ft. lbs.)
b. Connect the brake actuator connector.

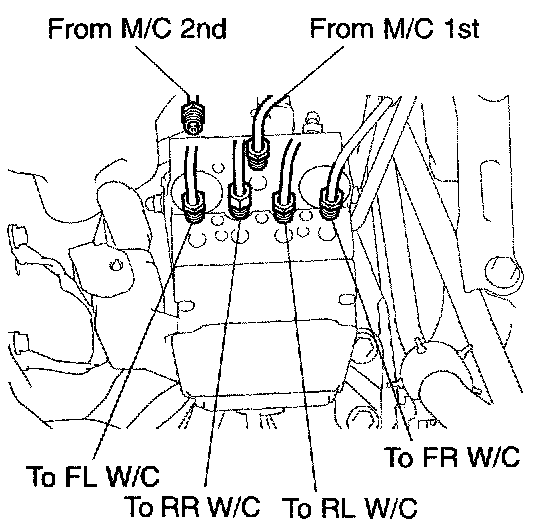

c. Using SST, connect the each brake line to the correct position of brake actuator, as shown in the illustration.
SST 09023-00100
Torque: 15 Nm (155 kgf-cm, 11 ft. lbs.)
d. Connect the actuator No. 1 hose to the actuator and slide the clip.
6. FILL RESERVOIR WITH BRAKE FLUID
7. BLEED MASTER CYLINDER
SST 09023-00100
8. BLEED BRAKE LINE
9. BLEED ABS & TRACTION ACTUATOR ASSEMBLY (W/ VSC)
SST 09992-00242, 09992-00350
10. CHECK FLUID LEVEL IN RESERVOIR
11. CHECK BRAKE FLUID LEAKAGE
12. CHECK OPERATION OF BRAKE ACTUATOR
