Ts Terminal Circuit

CIRCUIT DESCRIPTION

In the sensor check mode, a malfunction of the speed sensor that cannot be judged when the vehicle is stopped is judged while driving.

Transition to the sensor check mode can be performed by connecting terminals Ts and CG of the DLC3 and turning the ignition switch from OFF to ON.

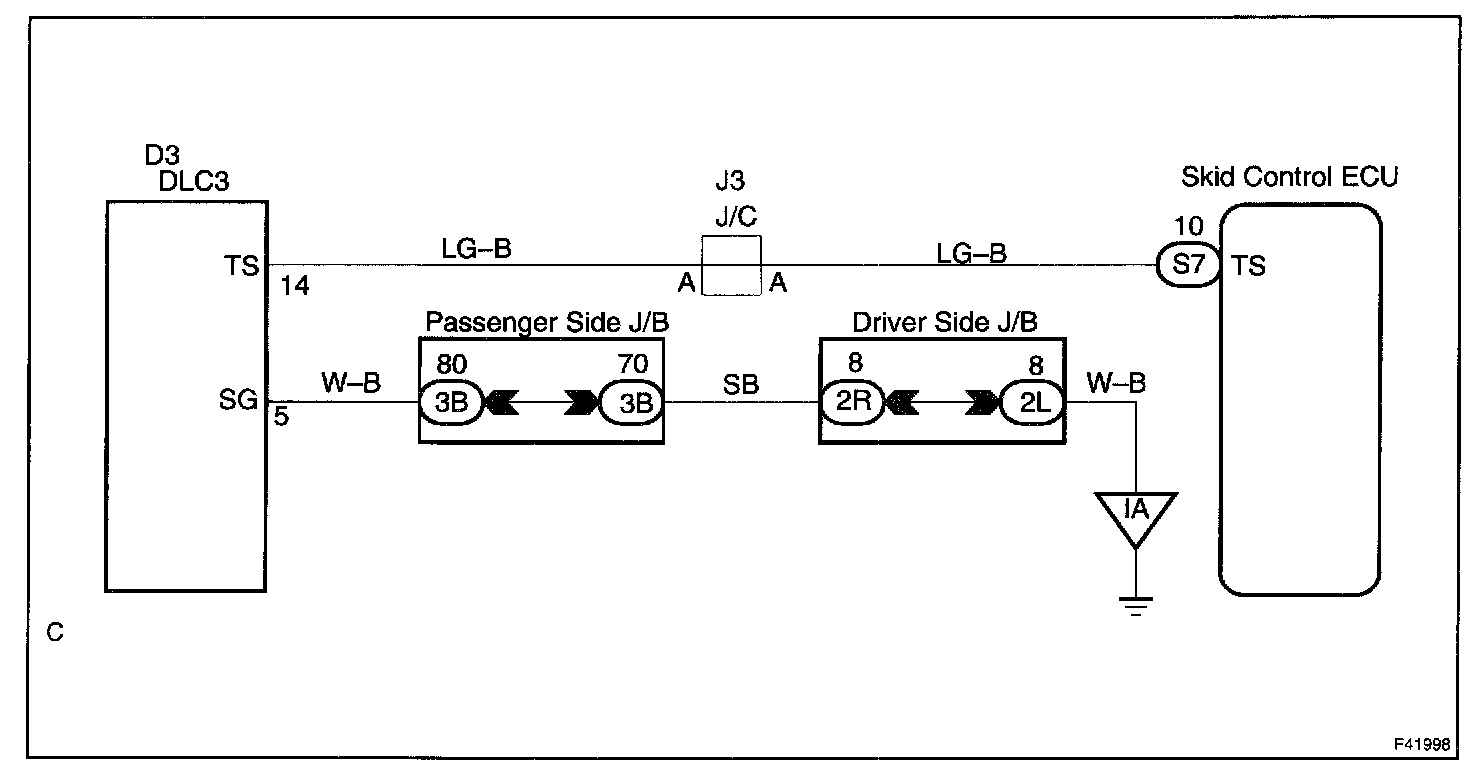

Wiring Diagram:

Step 1:

Step 2 - 3:

INSPECTION PROCEDURE
