Power Source Circuit

CIRCUIT DESCRIPTION

This is the power source for motors such as the slide motor, reclining motor, front vertical motor and rear vertical motor.

Wiring Diagram:

Step 1:

Step 2:

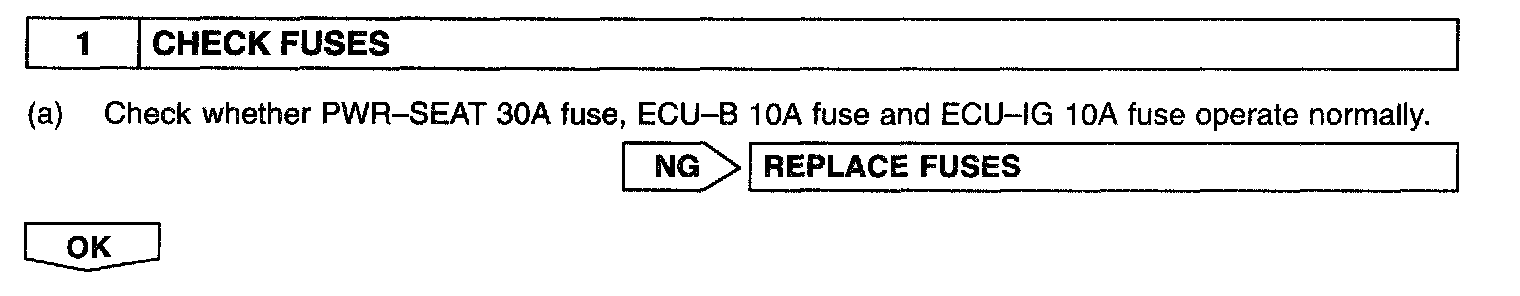

INSPECTION PROCEDURE
