System Inspection

1. INSPECT FRONT POWER SEAT SWITCH LH

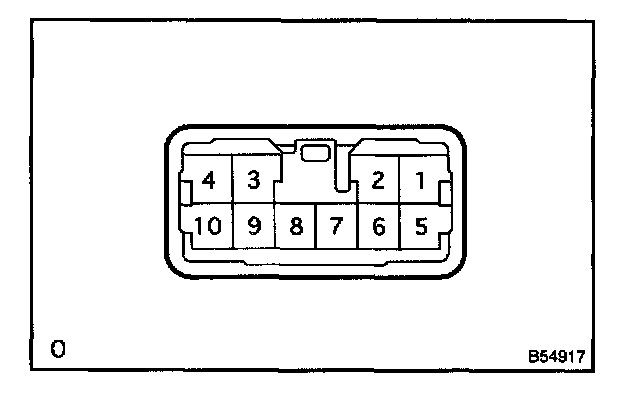

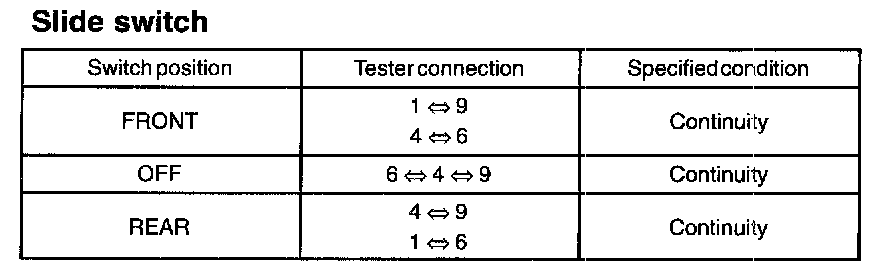

Slide Switch:

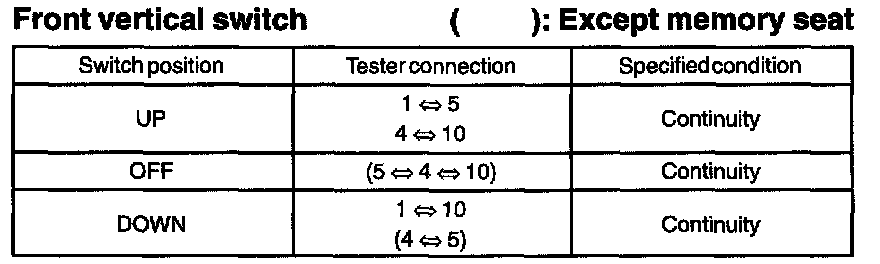

Front Vertical Switch:

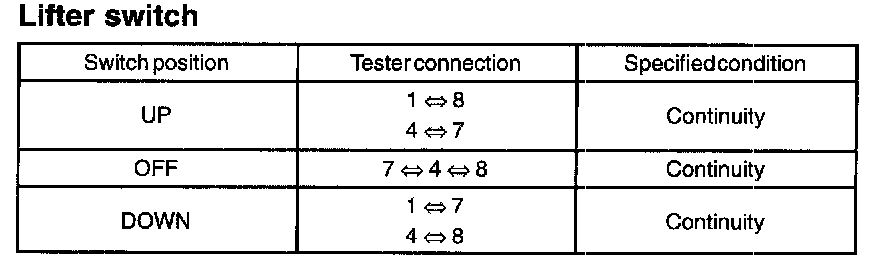

Lifter Switch:

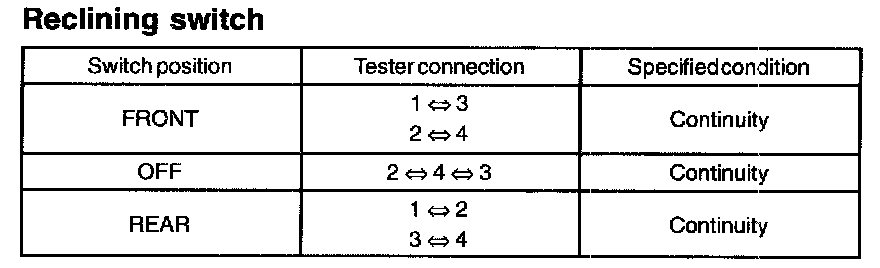

Reclining Switch:

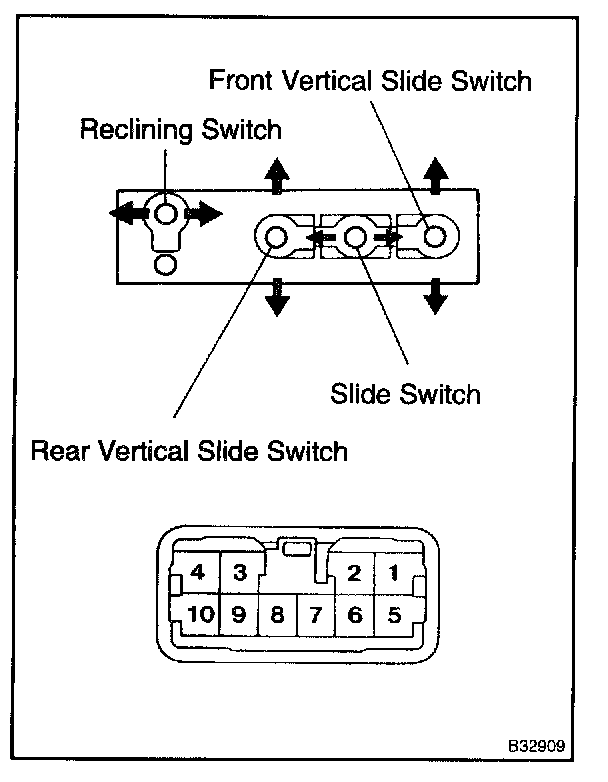

a. Inspect the continuity between each terminal when each switch is operated.




2. INSPECT FRONT POWER SEAT SWITCH RH

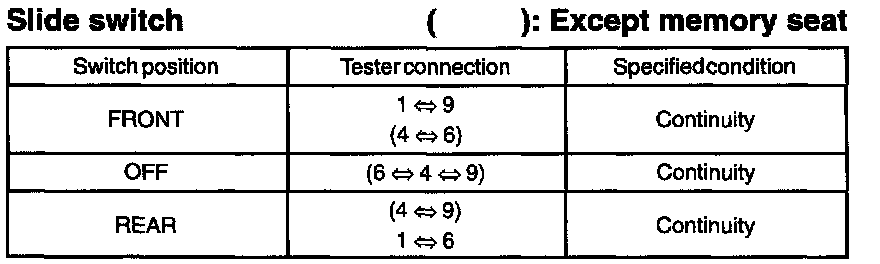

Slide Switch:

Front Vertical Switch:

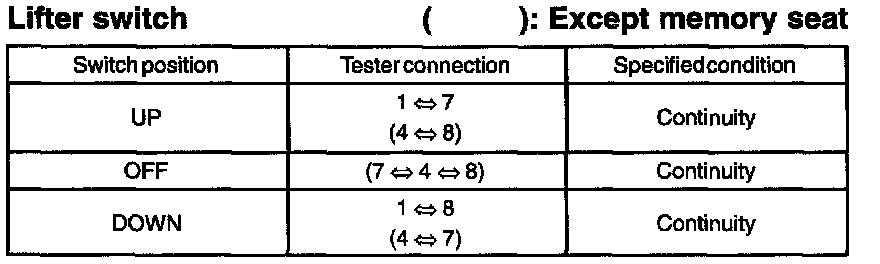

Lifter Switch:

Reclining Switch:

a. Inspect the continuity between each terminal when each switch is operated.




3. INSPECT POWER SEAT FRONT LH SWITCH ASSY

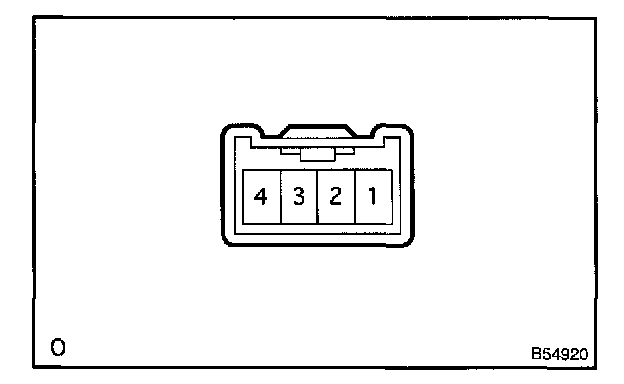

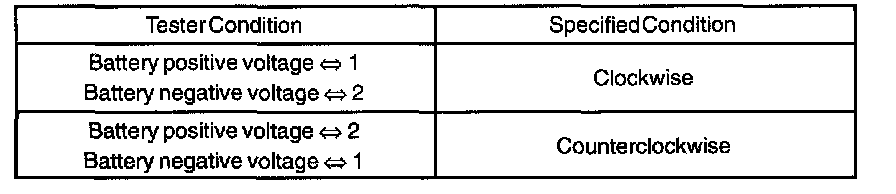

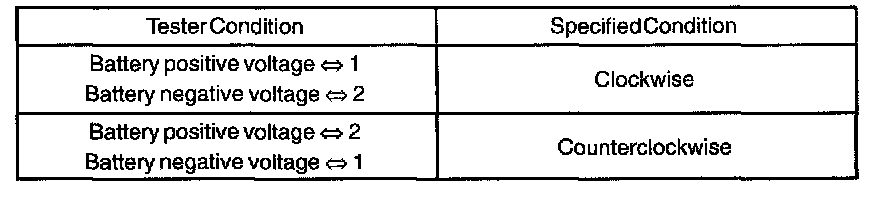

a. Check that the motor rotates smoothly when the battery is connected to the connector terminal.







4. INSPECT LUMBAR SUPPORT ADJUSTER ASSY RH
a. Inspect the operation of the power seat motor.







5. INSPECT FRONT UP, DOWN POWER SEAT MOTOR ASSY
a. Inspect the operation.

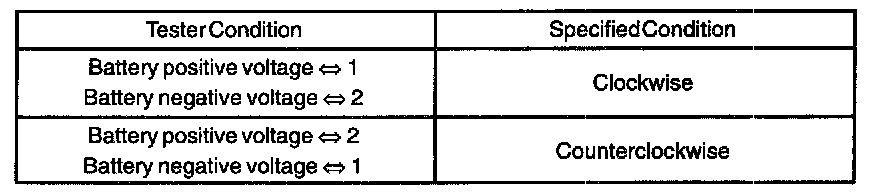

1. Check that the motor rotates smoothly when the battery is connected to the connector terminal.







6. INSPECT POWER SEAT MOTOR ASSY
a. Inspect the operation.
1. Check that the motor rotates smoothly when the battery is connected to the connector terminal.
