Pinout Values and Diagnostic Parameters

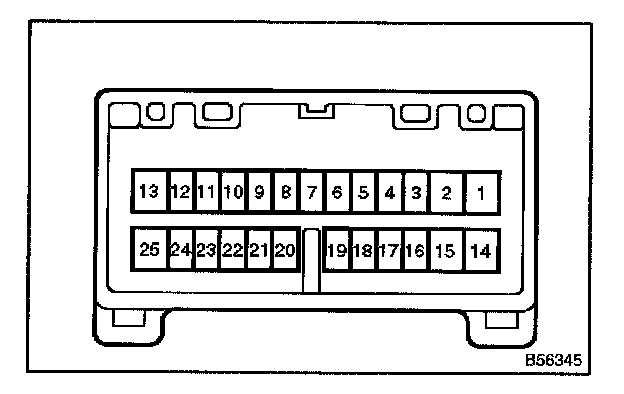

TERMINALS OF ECUTerminals Of ECU - Connector View:
1. OUTER MIRROR CONTROL ECU ASSY
a. INSPECT DOOR ECU
Pinouts:
1. Check the voltage and continuity between each terminal of the vehicle's side connector.
Pinouts:

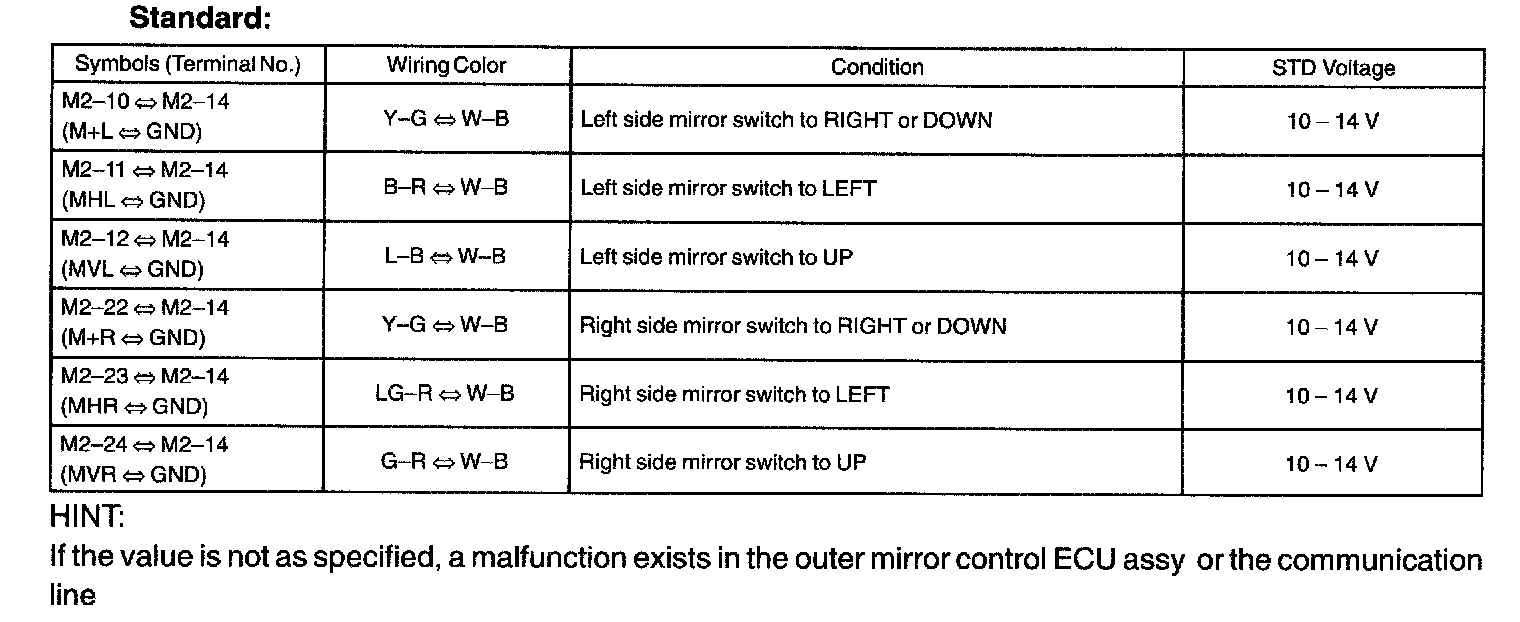

2. Connect connectors and check the voltage between each terminal of the connectors.
