Mirror Switch Circuit

CIRCUIT DESCRIPTION

While a switch signal of the power mirrors is transmitted to the mirror ECU as well. This time the power mirrors face upward and downward or right and left.

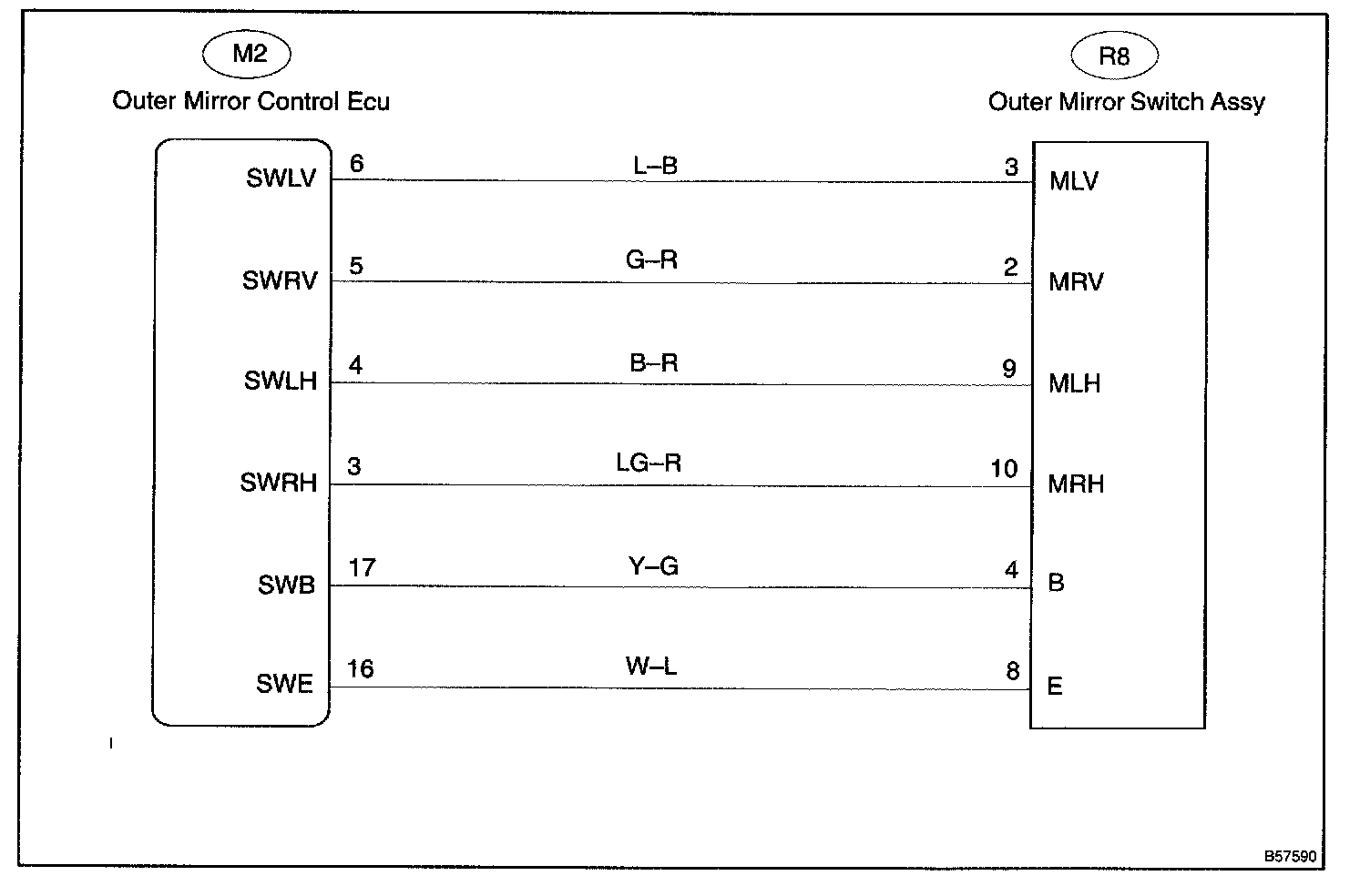

Wiring Diagram:

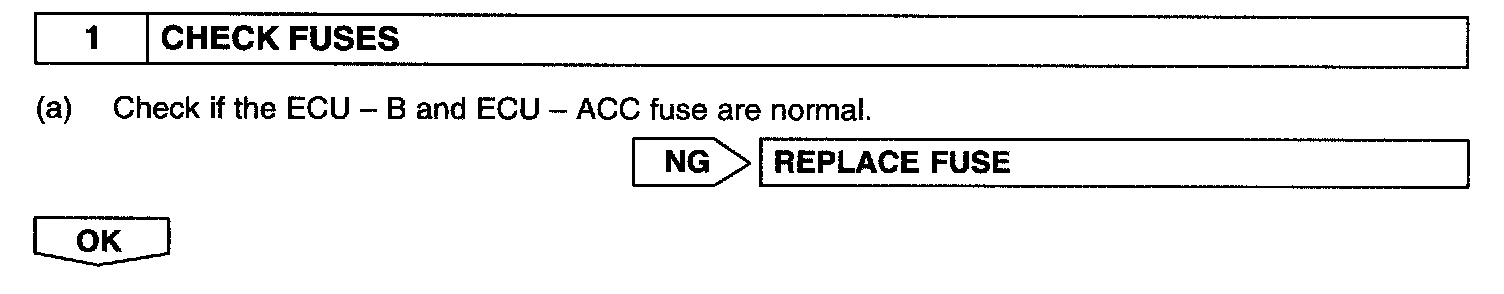

Step 1:




Step 2:




Step 3:




INSPECTION PROCEDURE
