Mirror Position Sensor Circuit (W/ Memory)

CIRCUIT DESCRIPTION

When seat memory switch M1 and M2 is pressed, the memory seat ECU transmits the memorized mirror facing direction multiply to mirror ECU, then the mirror ECU drivers the mirror motor.

Wiring Diagram:

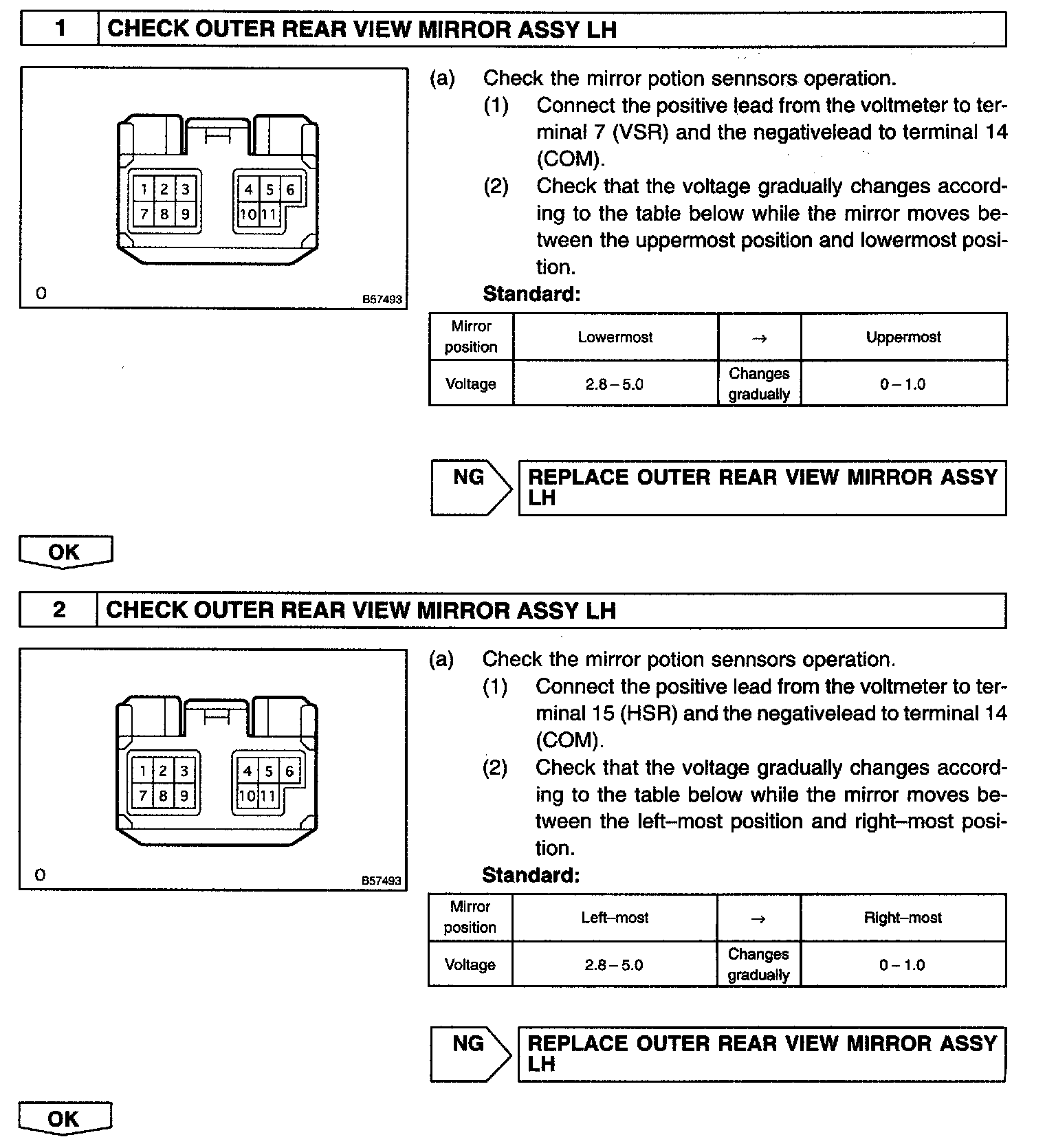

Step 1 - 2:

Step 3 - 4:

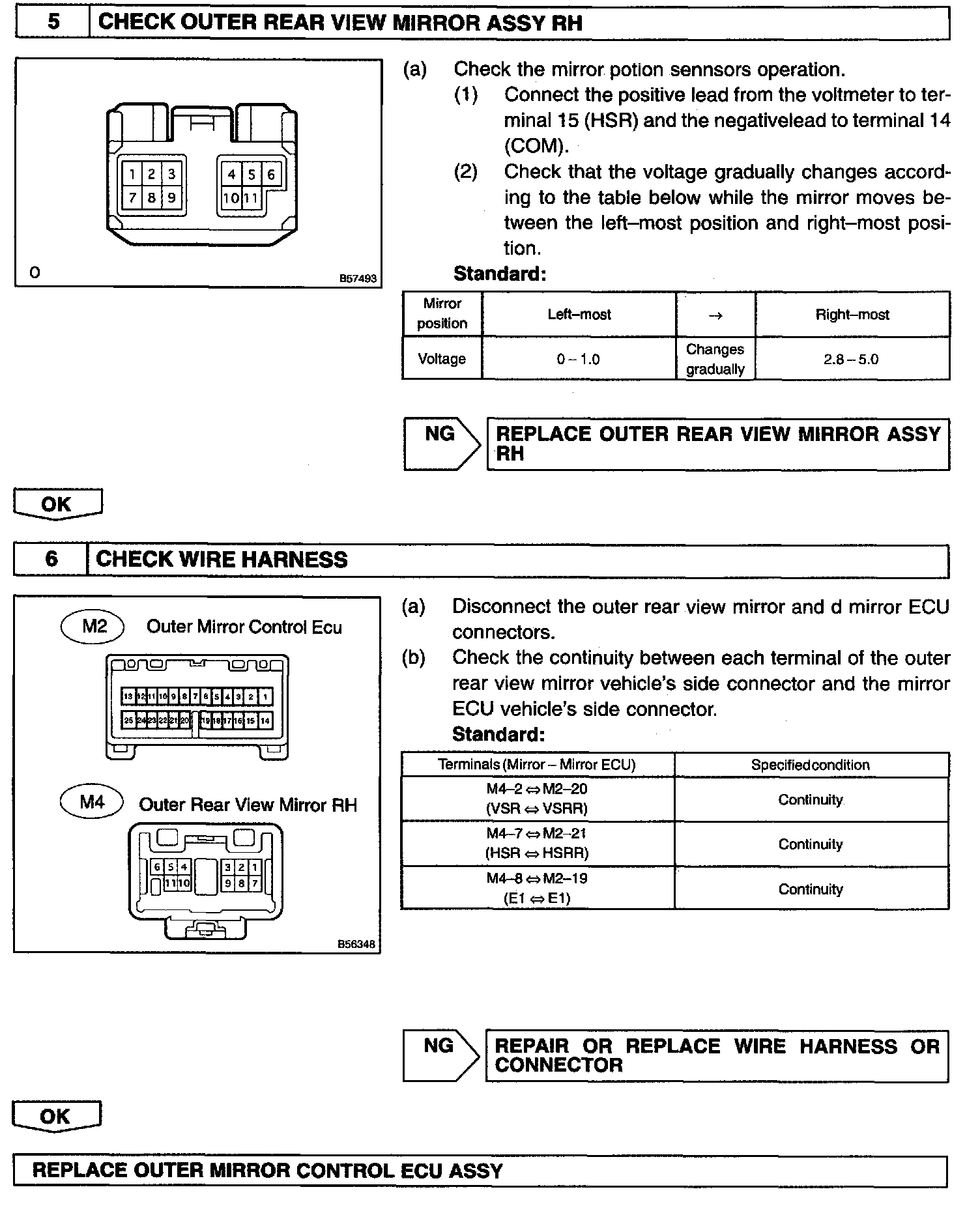

Step 5 - 6:

INSPECTION PROCEDURE
