Mirror Motor Circuit

CIRCUIT DESCRIPTION

While a switch signal of the power mirrors is transmitted to the mirror ECU as well. This time the power mirrors face upward and downward or right and left.

Wiring Diagram:

Step 1 - 2:

Step 3 - 4:

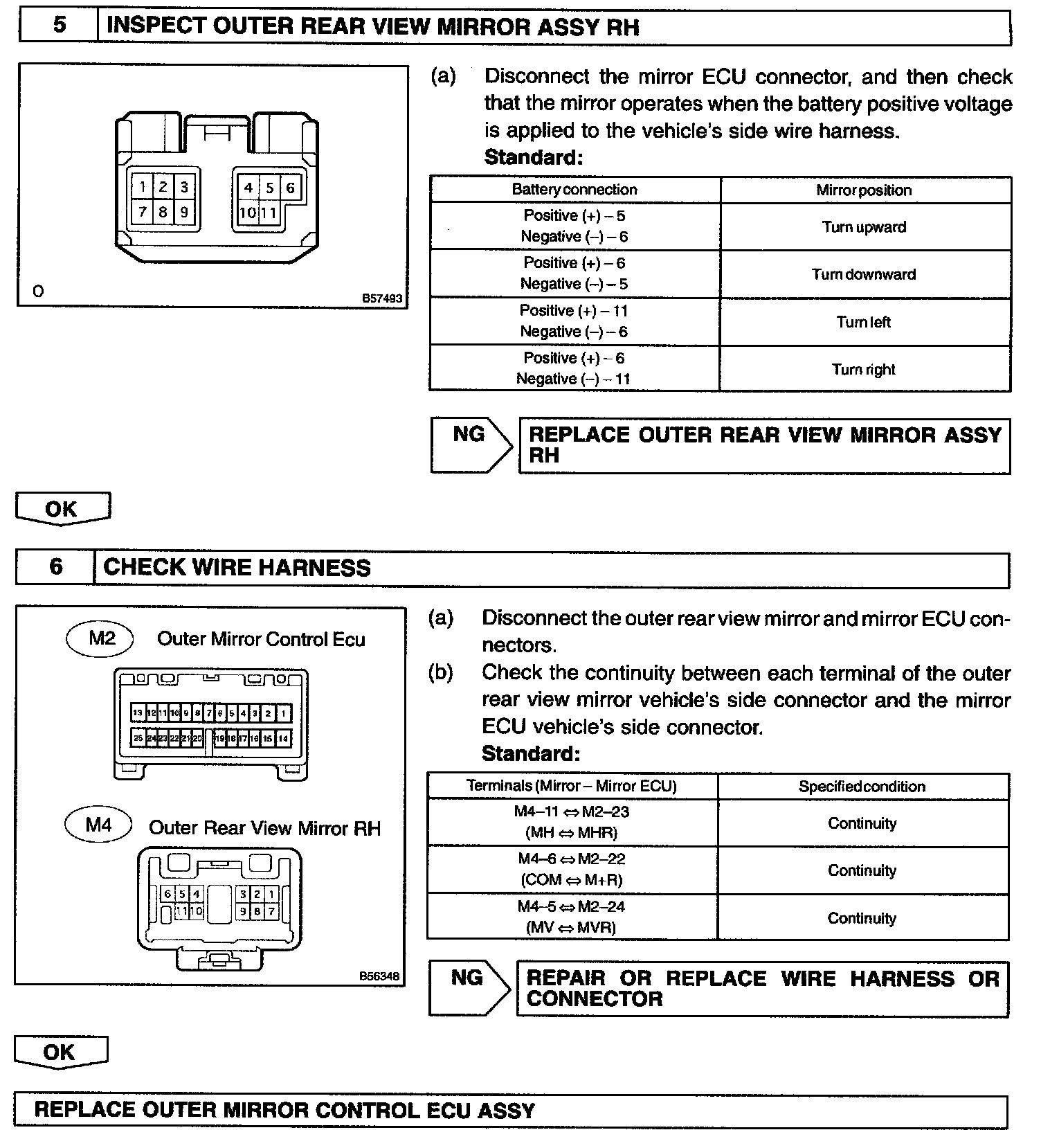

Step 5 - 6:

INSPECTION PROCEDURE
