System Inspection

POWER DOOR LOCK CONTROL SYSTEM

1. INSPECT FRONT DOOR W/MOTOR LOCK ASSY RH

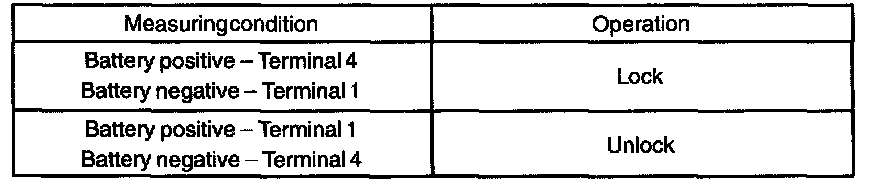

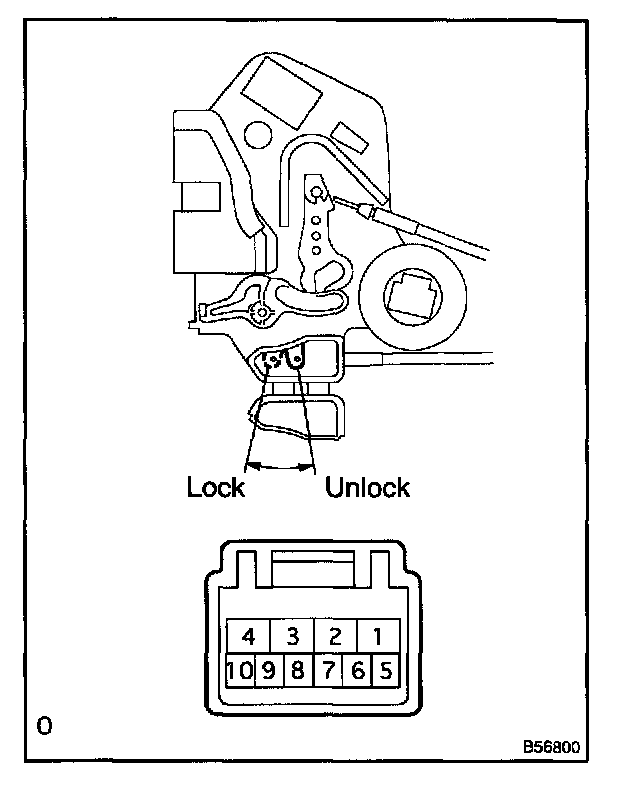

a. Inspect the door lock assembly continuity.
If operation is not as specified, replace the door lock assembly.

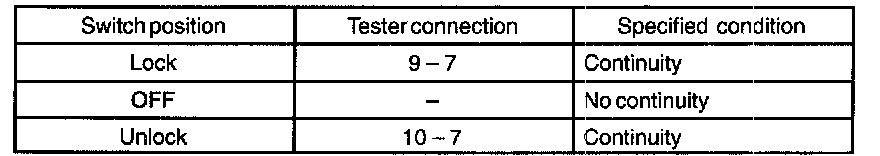

Standard:

b. Inspect the door lock motor operation.
If operation is not as specified, replace the door lock assembly.

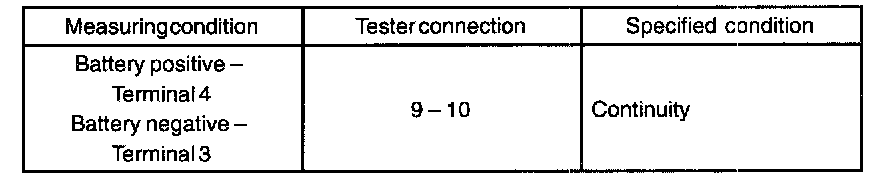

c. Inspect the position switch continuity.
If operation is not as specified, replace the door lock assembly.

2. INSPECT FRONT DOOR W/MOTOR LOCK ASSY LH

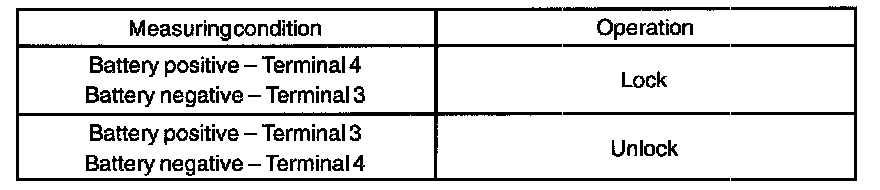

a. Inspect the door lock assembly continuity.
If operation is not as specified, replace the door lock assembly.

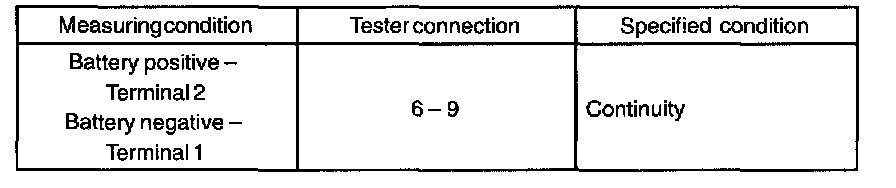

Standard:

b. Inspect the door lock motor operation.
If operation is not as specified, replace the door lock assembly.




c. Inspect the position switch continuity.
If operation is not as specified, replace the door lock assembly.

3. INSPECT REAR DOOR W/MOTOR LOCK ASSY RH

Standard:

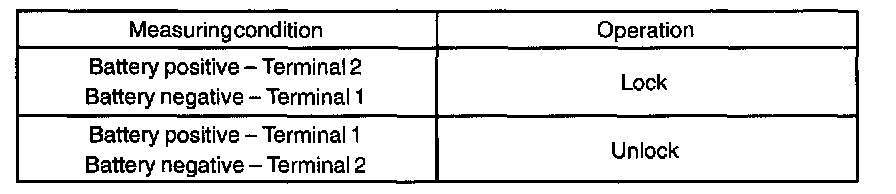

a. Inspect the door lock motor operation.
If operation is not as specified, replace the door lock assembly.




b. Inspect the position switch continuity.
If operation is not as specified, replace the door lock assembly.

4. INSPECT REAR DOOR W/MOTOR LOCK ASSY LH

Standard:

a. Inspect the door lock motor operation.
If operation is not as specified, replace the door lock assembly.




b. Inspect the position switch continuity.

Standard:

5. INSPECT LUGGAGE COMPARTMENT DOOR LOCK ASSY

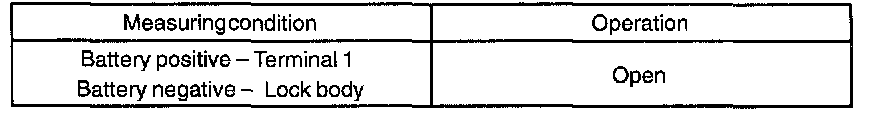

a. Inspect the door lock motor operation.
If operation is not as specified, replace the door lock assembly.

6. INSPECT FRONT DOOR W/MOTOR LOCK ASSY RH (W/ DOUBLE DOOR LOCK)







a. Inspect the door lock motor operation.
If operation is not as specified, replace the door lock assembly.

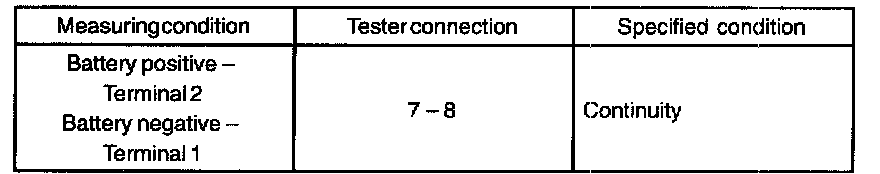

b. Inspect the position switch continuity.
If operation is not as specified, replace the door lock assembly.

7. INSPECT FRONT DOOR W/MOTOR LOCK ASSY LH (W/ DOUBLE DOOR LOCK)







a. Inspect the door lock motor operation.
If operation is not as specified, replace the door lock assembly.

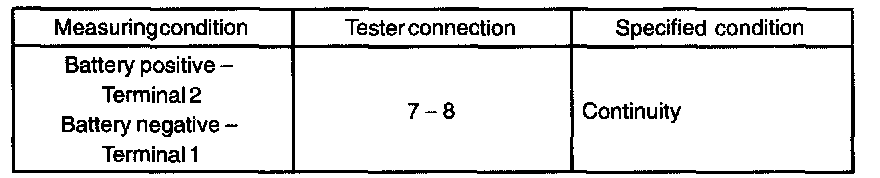

b. Inspect the position switch continuity.
If operation is not as specified, replace the door lock assembly.

8. INSPECT REAR DOOR W/MOTOR LOCK ASSY RH (W/ DOUBLE DOOR LOCK)







a. Inspect the door lock motor operation.
If operation is not as specified, replace the door lock assembly.




b. Inspect the position switch continuity.
If operation is not as specified, replace the door lock assembly.

9. INSPECT REAR DOOR W/MOTOR LOCK ASSY LH (W/ DOUBLE DOOR LOCK)







a. Inspect the door lock motor operation.
If operation is not as specified, replace the door lock assembly.




b. Inspect the position switch continuity.
If operation is not as specified, replace the door lock assembly.
