Luggage Compartment Door Lock Circuit

CIRCUIT DESCRIPTION

A switch signal via the luggage opening switch is transmitted from the body ECU inside the instrument panel J/B to the luggage compartment door lock, and then the motor is driven by that.

Wiring Diagram:

Step 1 - 2:

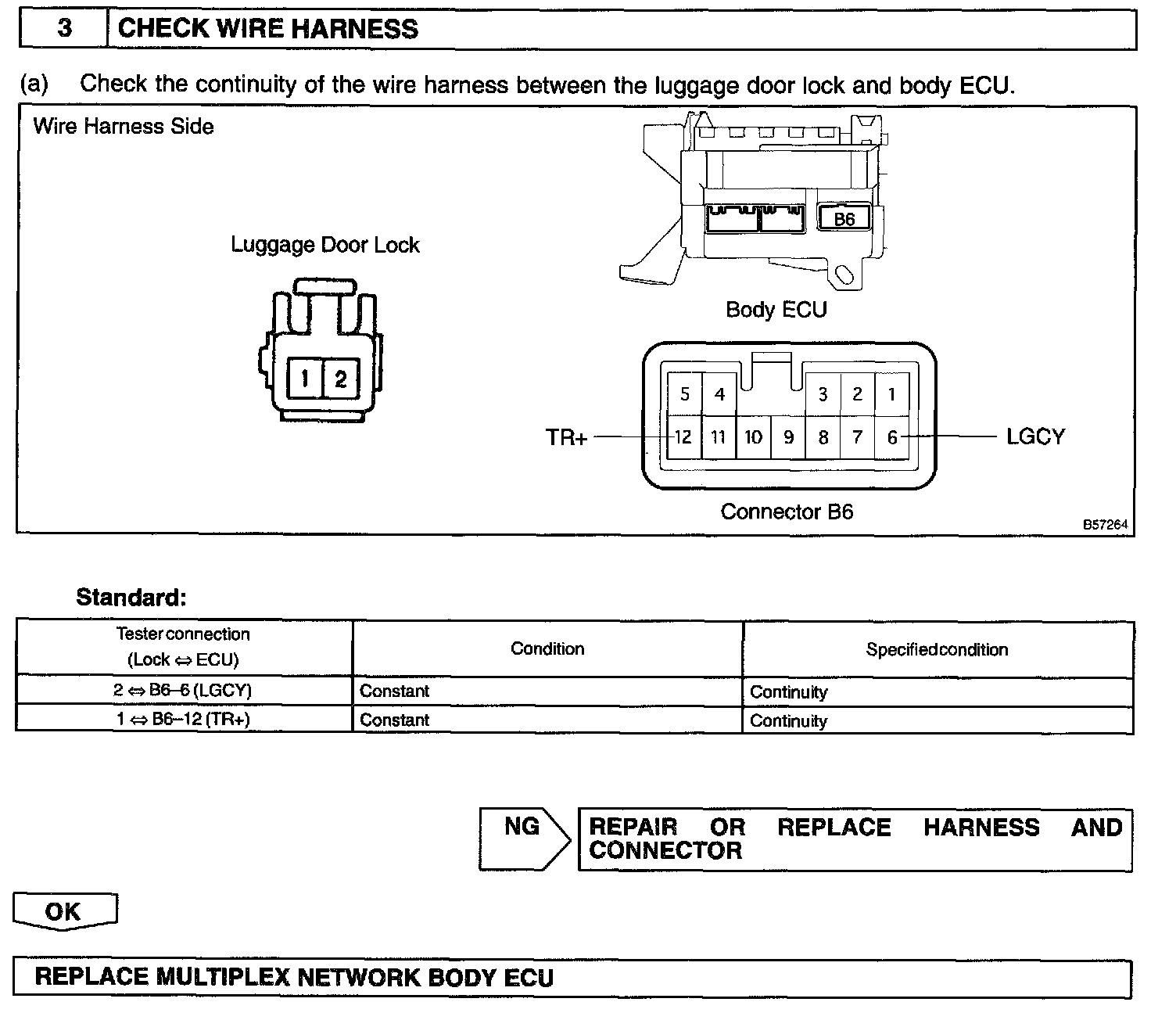

Step 3:

INSPECTION PROCEDURE
