Malfunction of Night Time Illumination of Radio Receiver
Malfunction of Night Time Illumination of Radio Receiver
TURNING ON LIGHT SWITCH DOES NOT LIGHT UP NIGHT TIME ILLUMINATION OF
RADIO RECEIVER
Wiring Diagram:

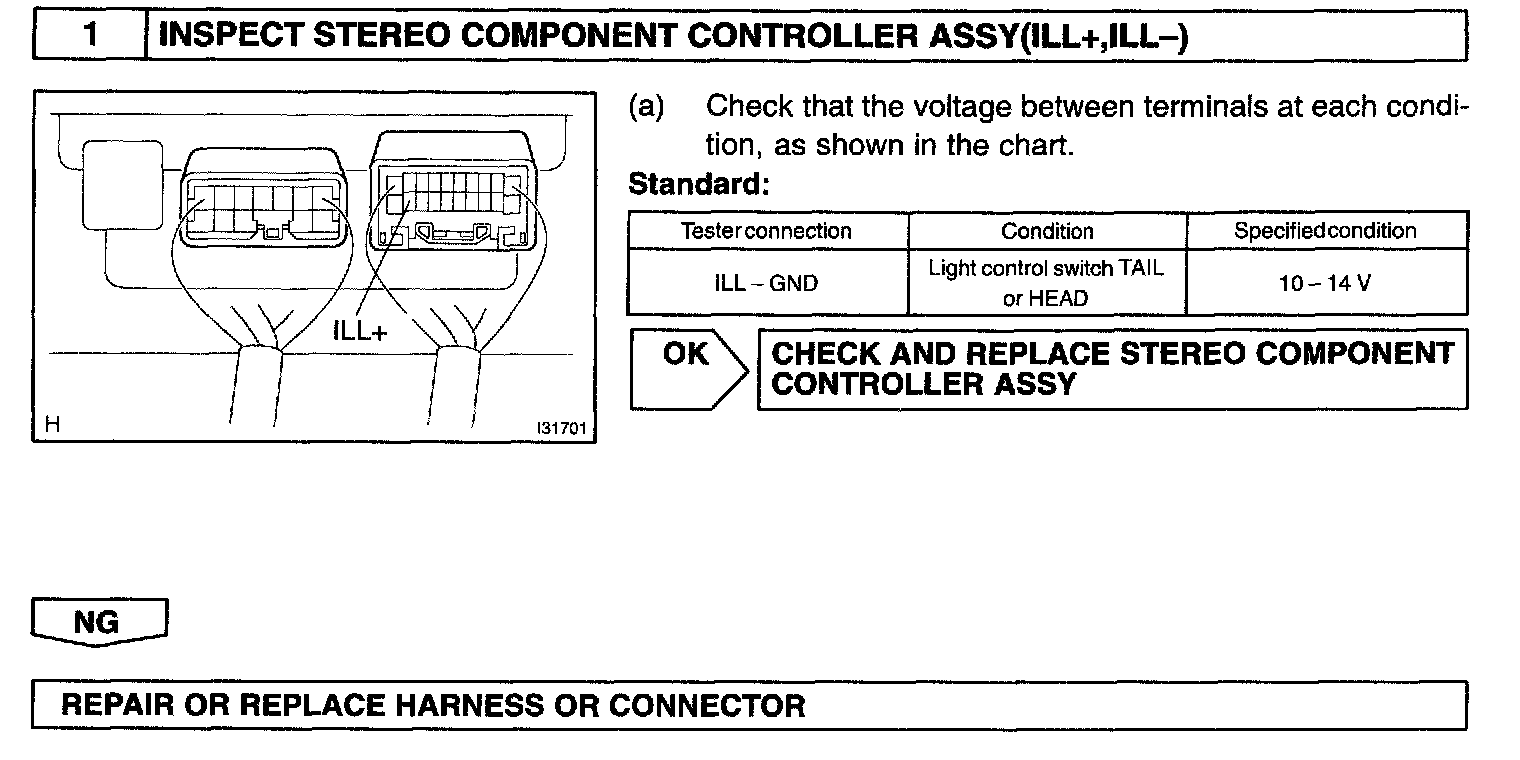

Step 1:
INSPECTION PROCEDURE
