Home >> Lexus >> 2002 >> ES 300 V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Although System Is Powered, CD Cannot Be Played

Although System Is Powered, CD Cannot Be Played

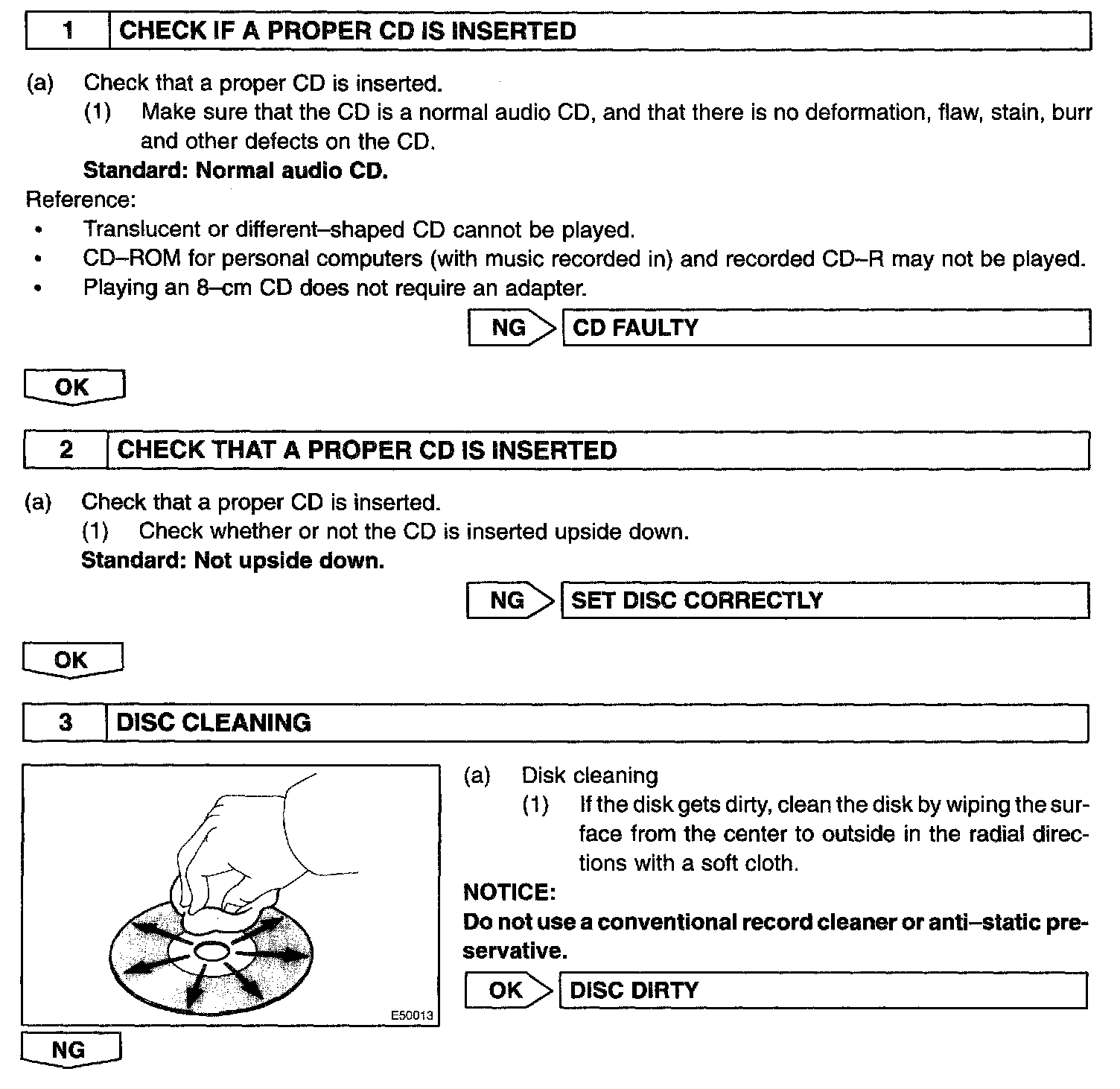

Step 1 - 3:




Step 4 - 6:




Step 7:




INSPECTION PROCEDURE
