Pinout Values and Diagnostic Parameters

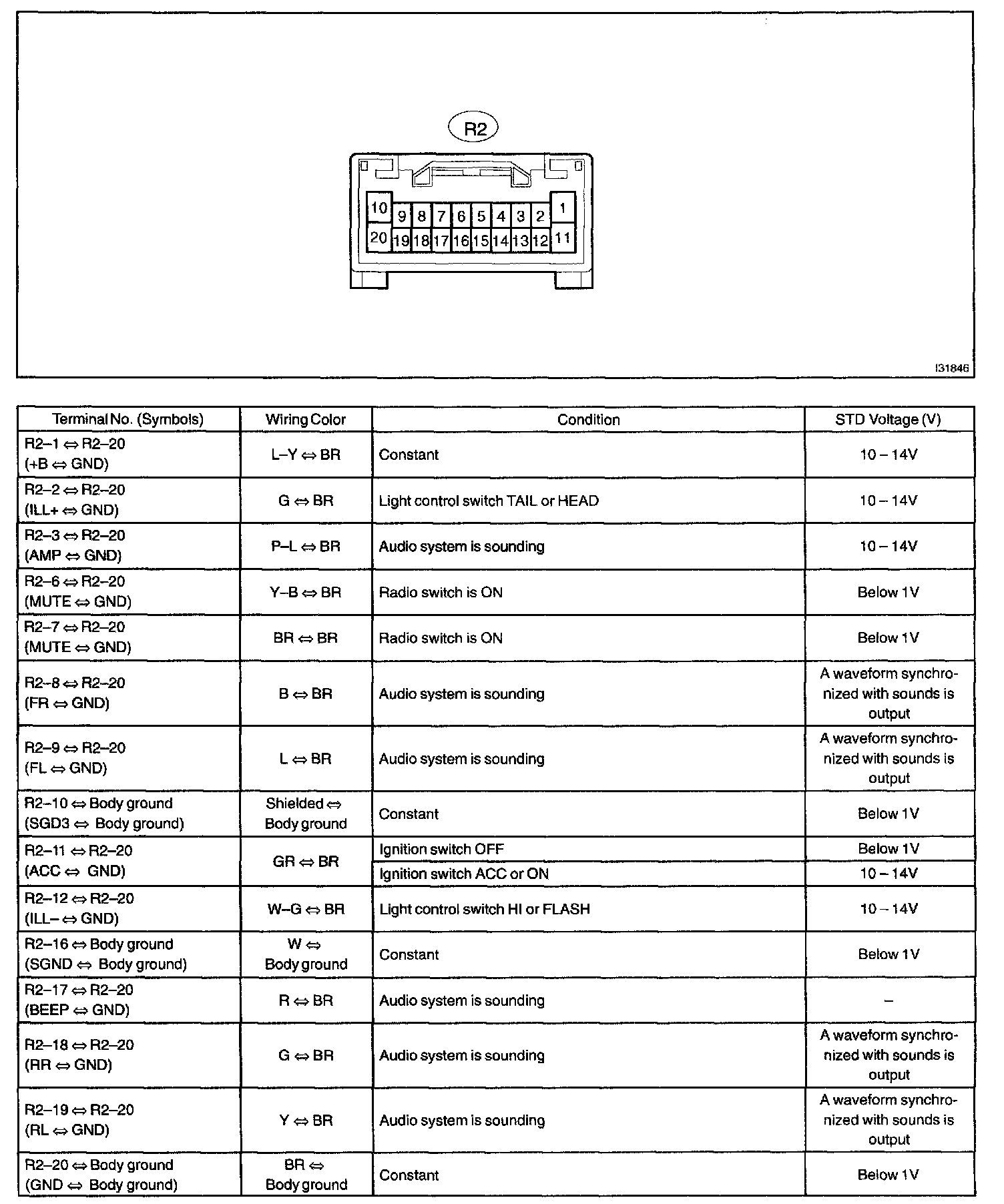

Terminals Of ECU - Radio Receiver Assy (except 1 CD Type):

Terminals Of ECU - Radio Receiver Assy (1 CD Type):

Terminals Of ECU/Pinouts - Stereo Component Amplifier (Mark Levinson Type) Part 1:

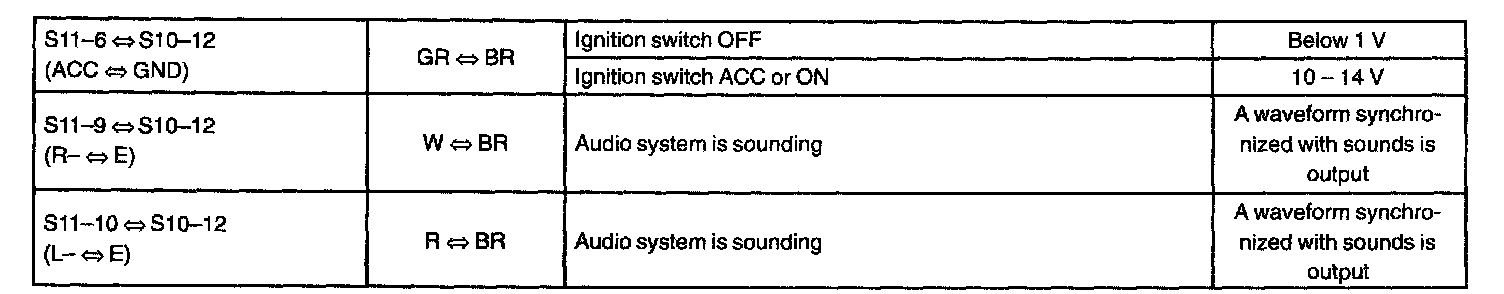

Pinouts - Stereo Component Amplifier (Mark Levinson Type) Part 2:

Terminals Of ECU/Pinouts - Stereo Component Amplifier (6 CD Type) Part 1:

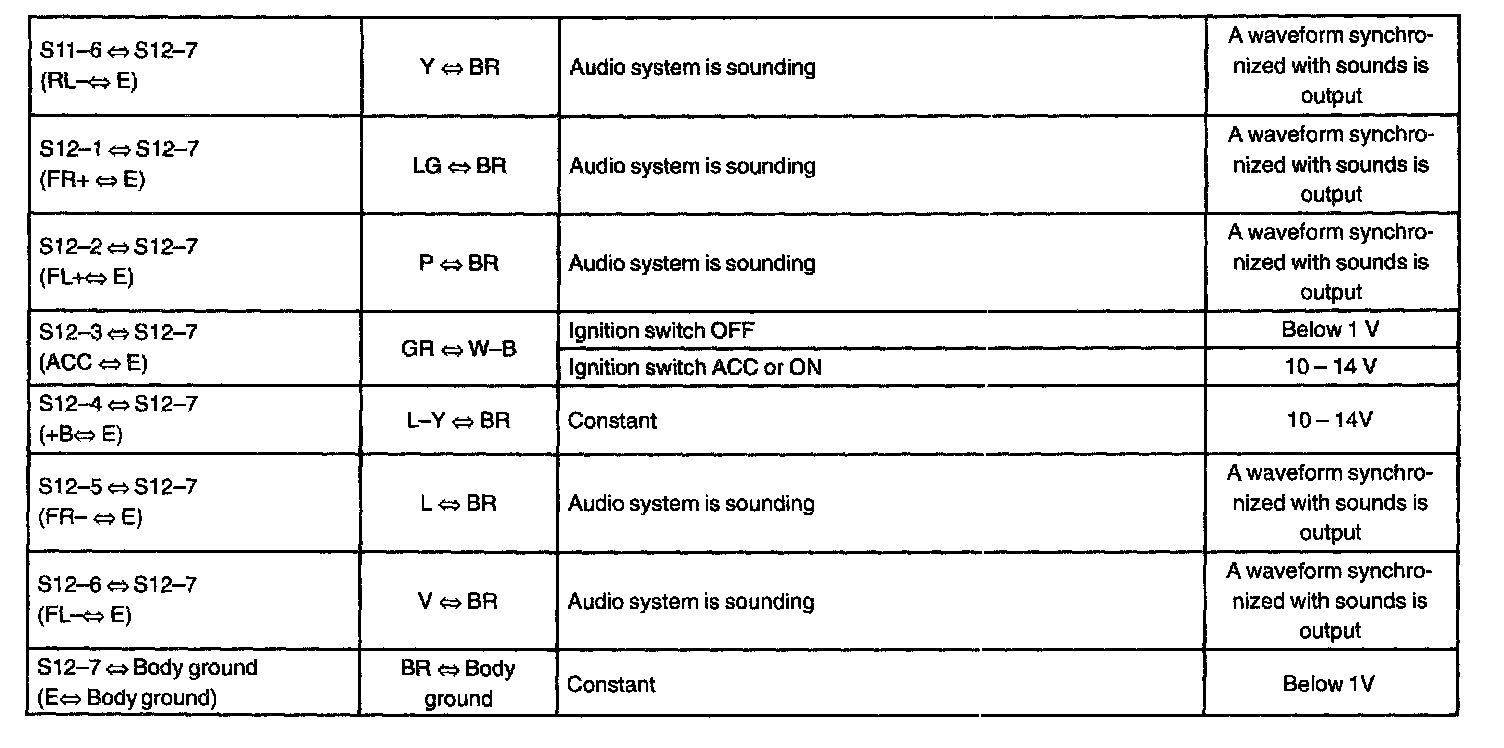

Pinouts - Stereo Component Amplifier (6 CD Type) Part 2:

Terminals Of ECU/Pinouts - Stereo Component Amplifier (1 CD Type) Part 1:

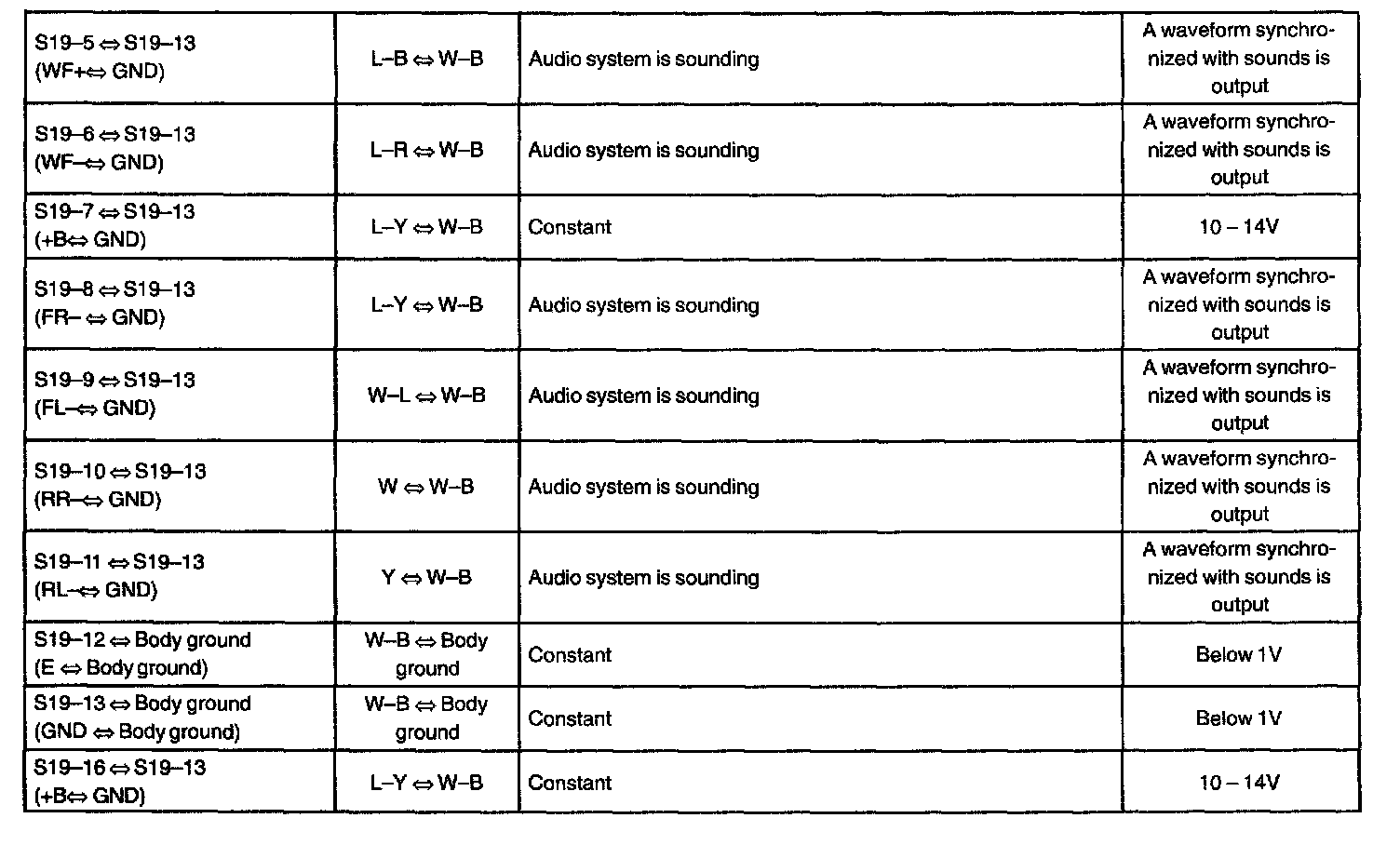

Pinouts - Stereo Component Amplifier (1 CD Type) Part 2:
