REAR SPEAKER ASSY NO.2

REPLACEMENT

1. REMOVE REAR SEAT CUSHION ASSY

2. REMOVE REAR SEAT BACK ASSY

3. REMOVE ROOF SIDE GARNISH INNER RH

4. REMOVE ROOF SIDE GARNISH INNER LH

5. REMOVE REAR SEAT SHOULDER BELT COVER




6. REMOVE PACKAGE TRAY TRIM PANEL ASSY
a. Remove the 3 bolts and floor anchor of the seat belt.
b. Pull the package tray trim panel assy upward to disengage 2 clips.
c. Put the anchor part of the seat belt through the slit part.
d. Disconnect the connector.
e. w/o RR window shade assy:

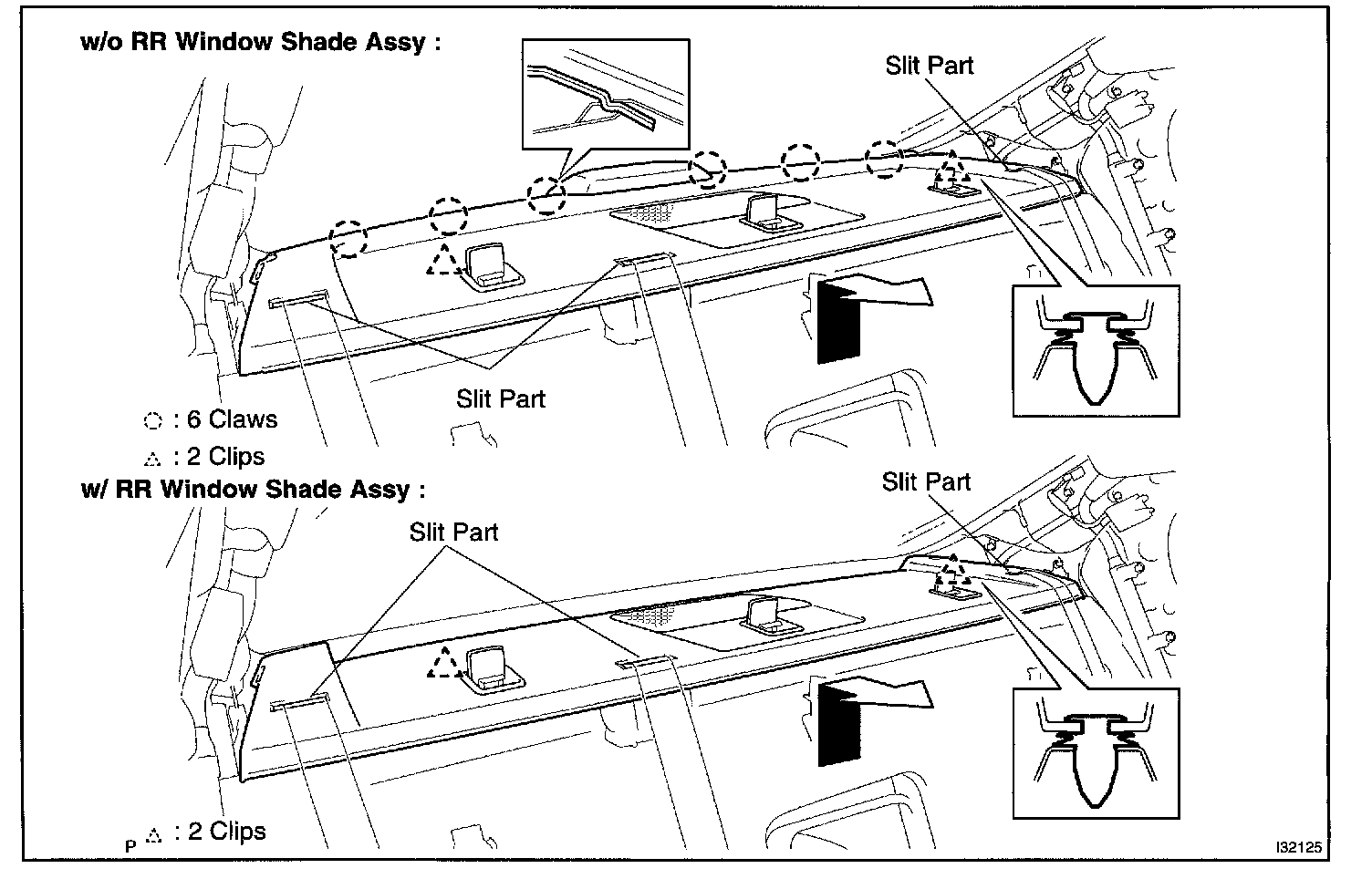

Pull it as shown in the illustration to disengage 6 claws, and remove the package tray trim panel assy.

f. w/ RR window shade assy:
Pull it as shown in the illustration and remove the package tray trim panel assy.

7. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY OUTER

8. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY OUTER

9. REMOVE REAR SEAT INNER W/CENTER BELT ASSY RH

10. REMOVE REAR SEAT INNER W/CENTER BELT ASSY LH

11. REMOVE ROOM PARTITION PANEL INSULATOR




12. REMOVE REAR SPEAKER ASSY NO.2
a. Disconnect the connector.

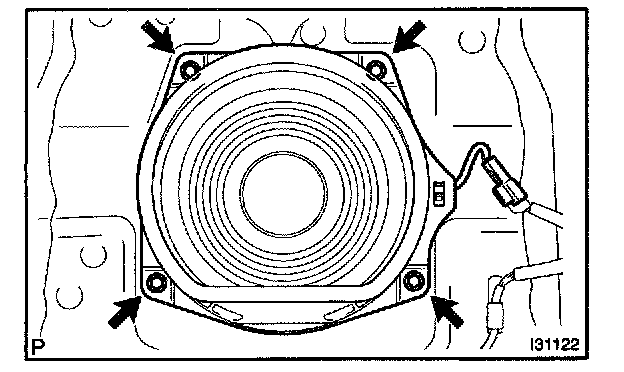

b. Remove the 4 screws and rear speaker assy No.2.

13. INSTALL REAR SEAT INNER W/CENTER BELT ASSY RH

14. INSTALL REAR SEAT 3 POINT TYPE BELT ASSY OUTER

15. INSTALL REAR SEAT 3 POINT TYPE BELT ASSY OUTER

16. INSTALL REAR SEAT INNER W/CENTER BELT ASSY LH

17. INSTALL ROOF SIDE GARNISH INNER RH

18. INSTALL ROOF SIDE GARNISH INNER LH

19. INSTALL REAR SEAT BACK ASSY

20. INSTALL REAR SEAT CUSHION ASSY
