REAR SPEAKER ASSY

REPLACEMENT

1. REMOVE POWER WINDOW REGULATOR SWITCH ASSY REAR

2. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG LH

3. REMOVE REAR DOOR TRIM BOARD SUB-ASSY LH

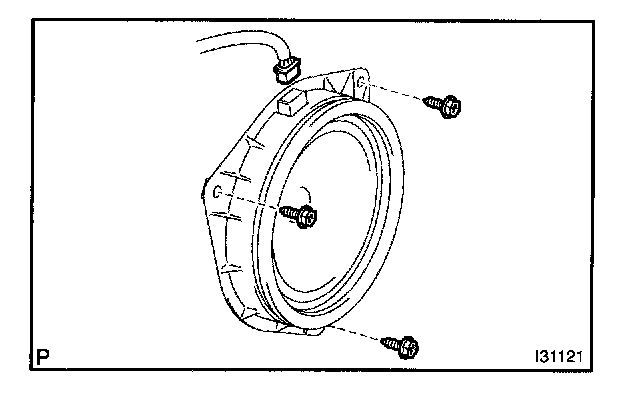

4. REMOVE REAR SPEAKER ASSY
a. Disconnect the connector.
b. Remove the 3 screws and rear speaker assy.
