FRONT NO.2 SPEAKER ASSY

REPLACEMENT

1. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSY

2. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH

3. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH

4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSY LH




5. REMOVE FRONT NO.2 SPEAKER ASSY

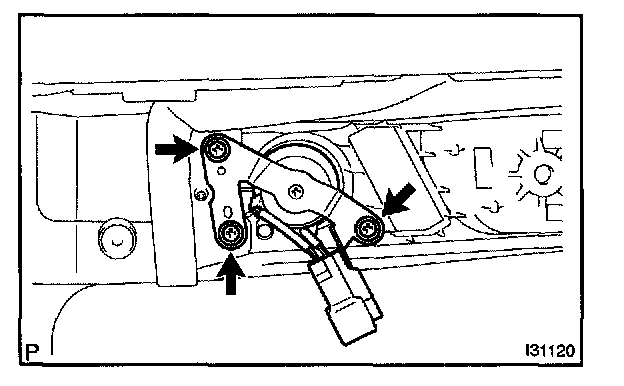

a. Remove the 3 screws and front No.2 speaker assy.
