When Pressing Any Switches, The Screen Remains Black
When Pressing Any Switches, The Screen Remains Black
EVEN WHEN PRESSING "PWR/VOL" SWITCH OR ANY AUDIO SWITCH, THE SCREEN REMAINS BLACK

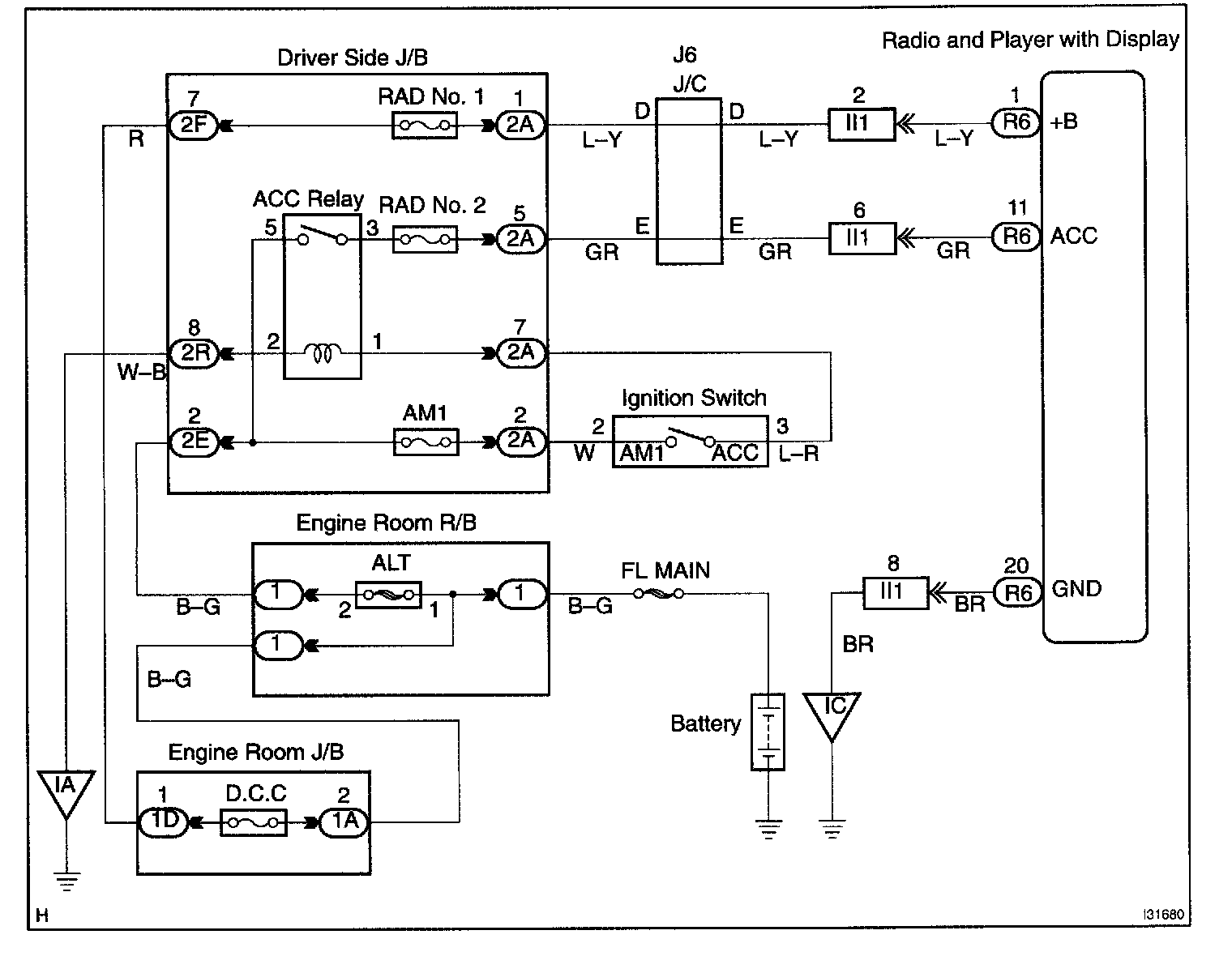

Wiring Diagram:

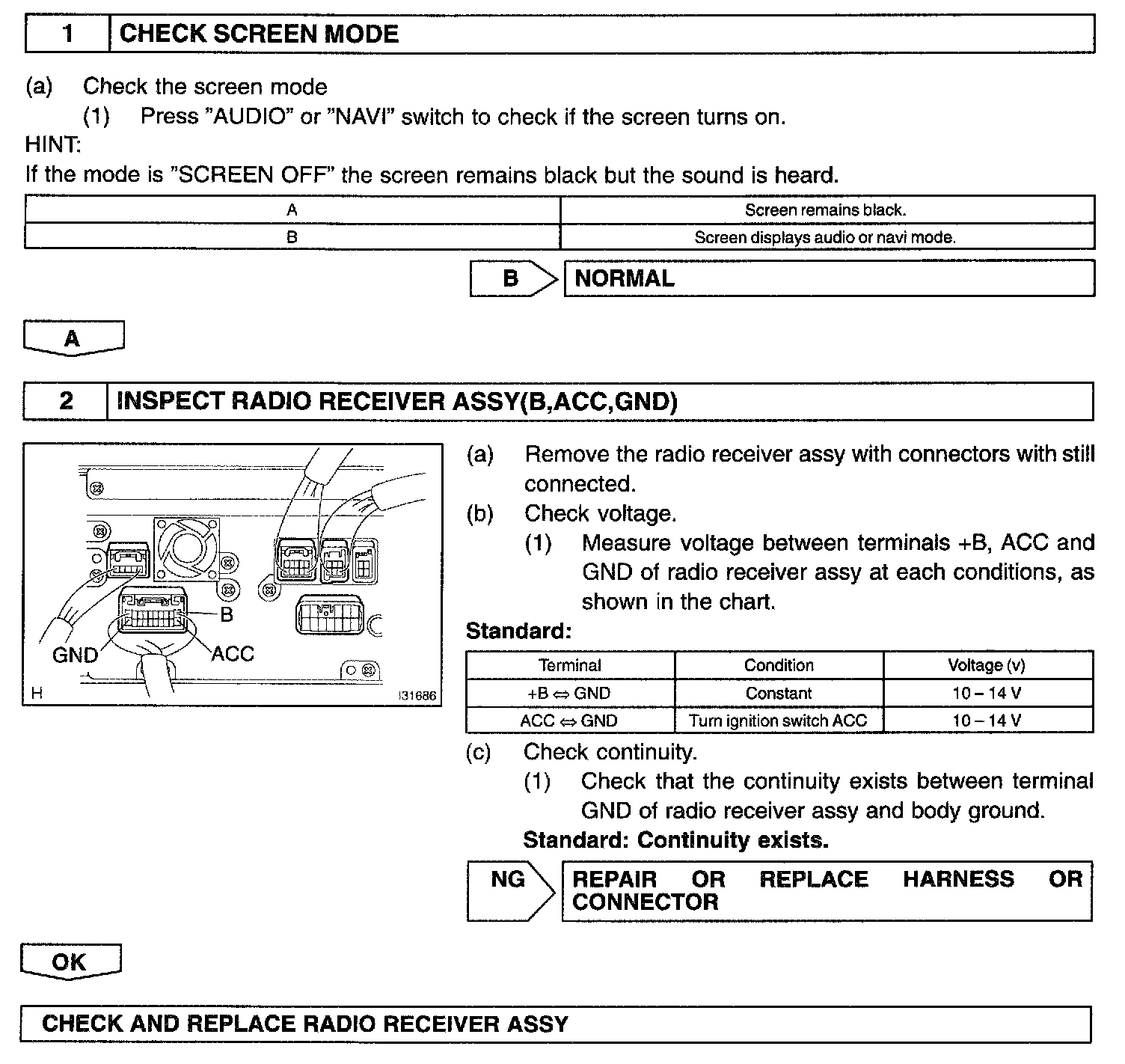

Step 1 - 2:
INSPECTION PROCEDURE
