Screen Cannot Be Dimmed When Switch Turned to "Tail" Position
Screen Cannot Be Dimmed When Switch Turned to "Tail" Position
SCREEN CANNOT BE DIMMED WHEN LIGHT CONTROL SWITCH IS TURNED TO "TAIL" POSITION
Wiring Diagram:

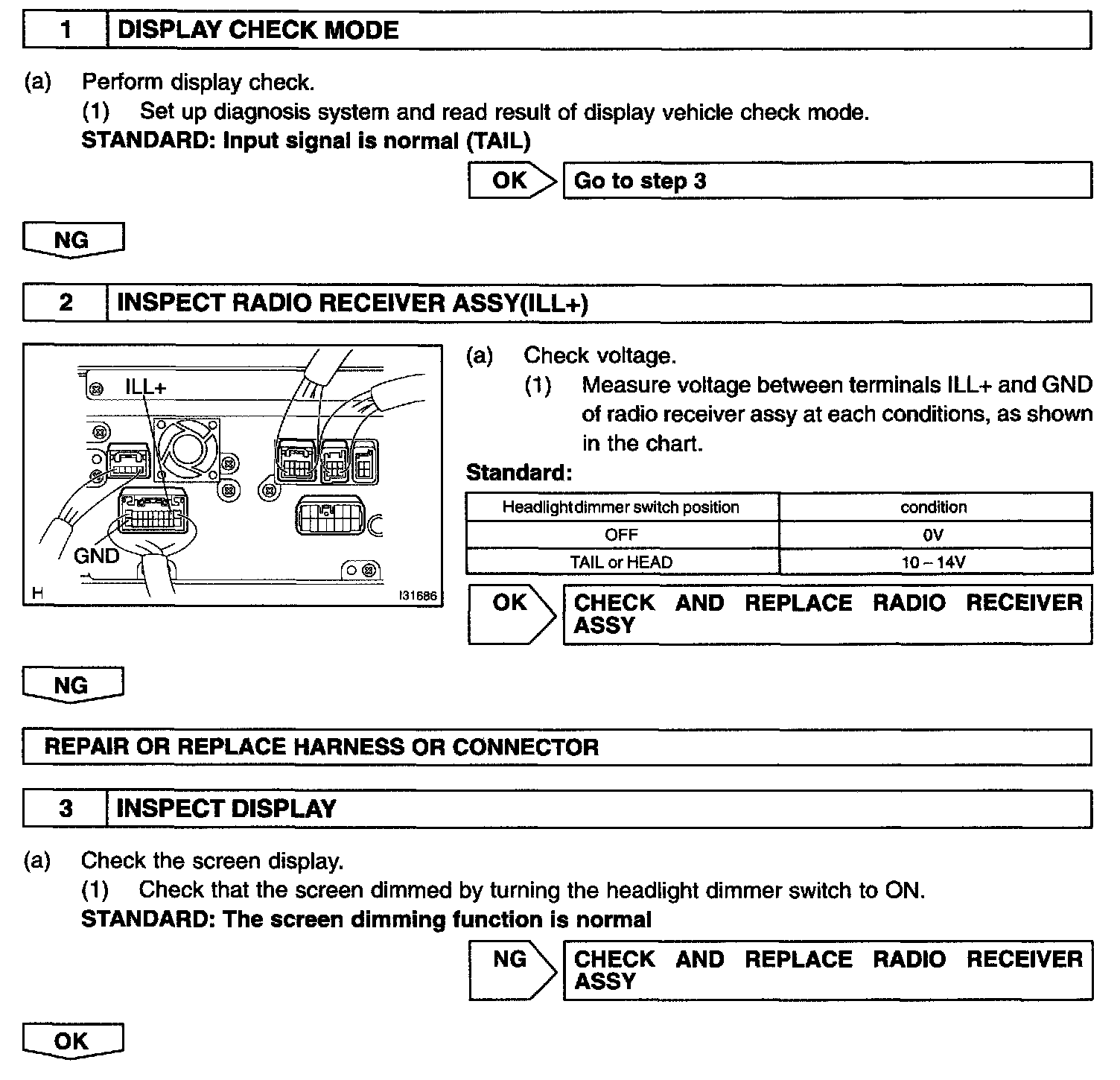

Step 1 - 3:

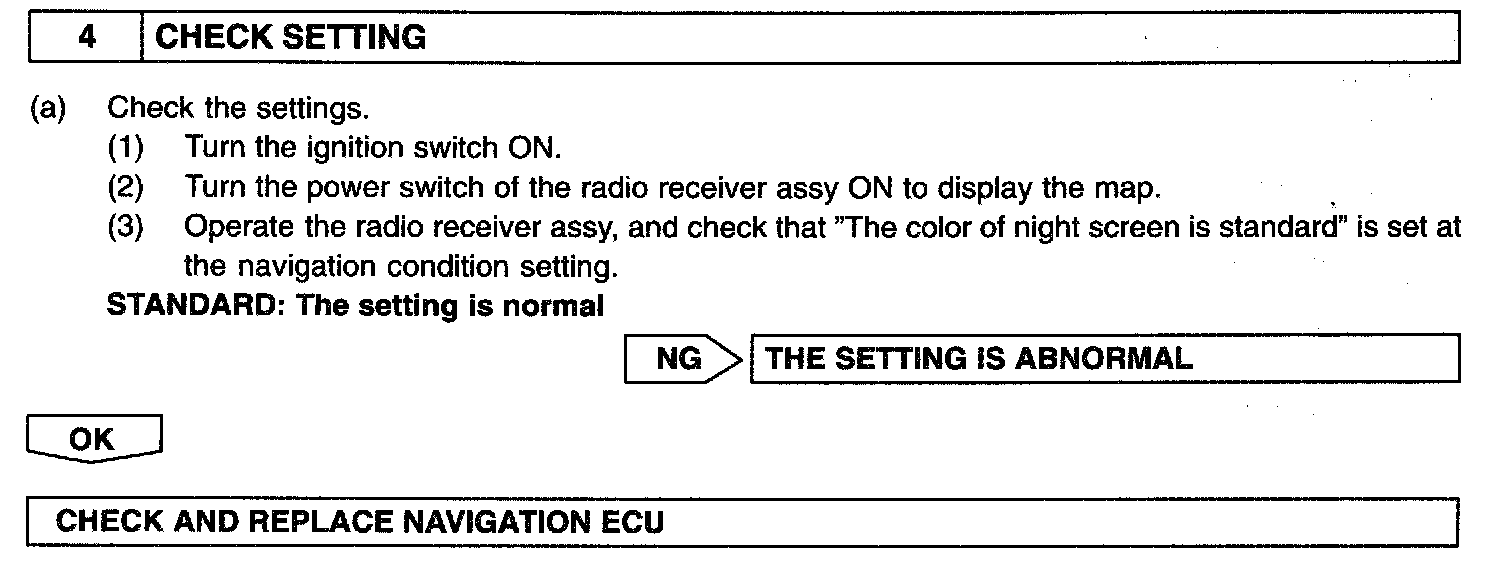

Step 4:
INSPECTION PROCEDURE
