Home >> Lexus >> 2002 >> ES 300 V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> Noise Occurs

Noise Occurs

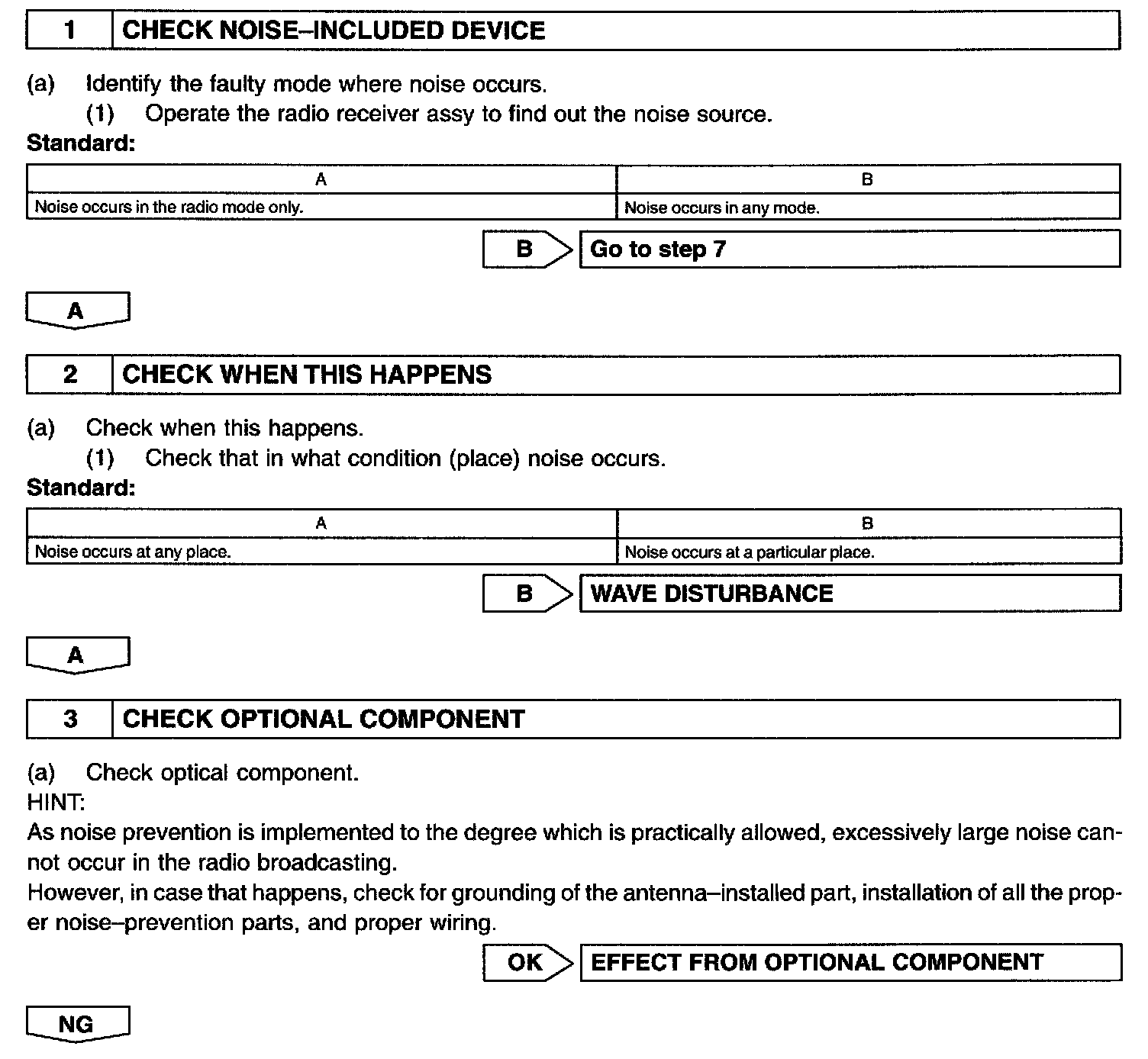

Step 1 - 3:

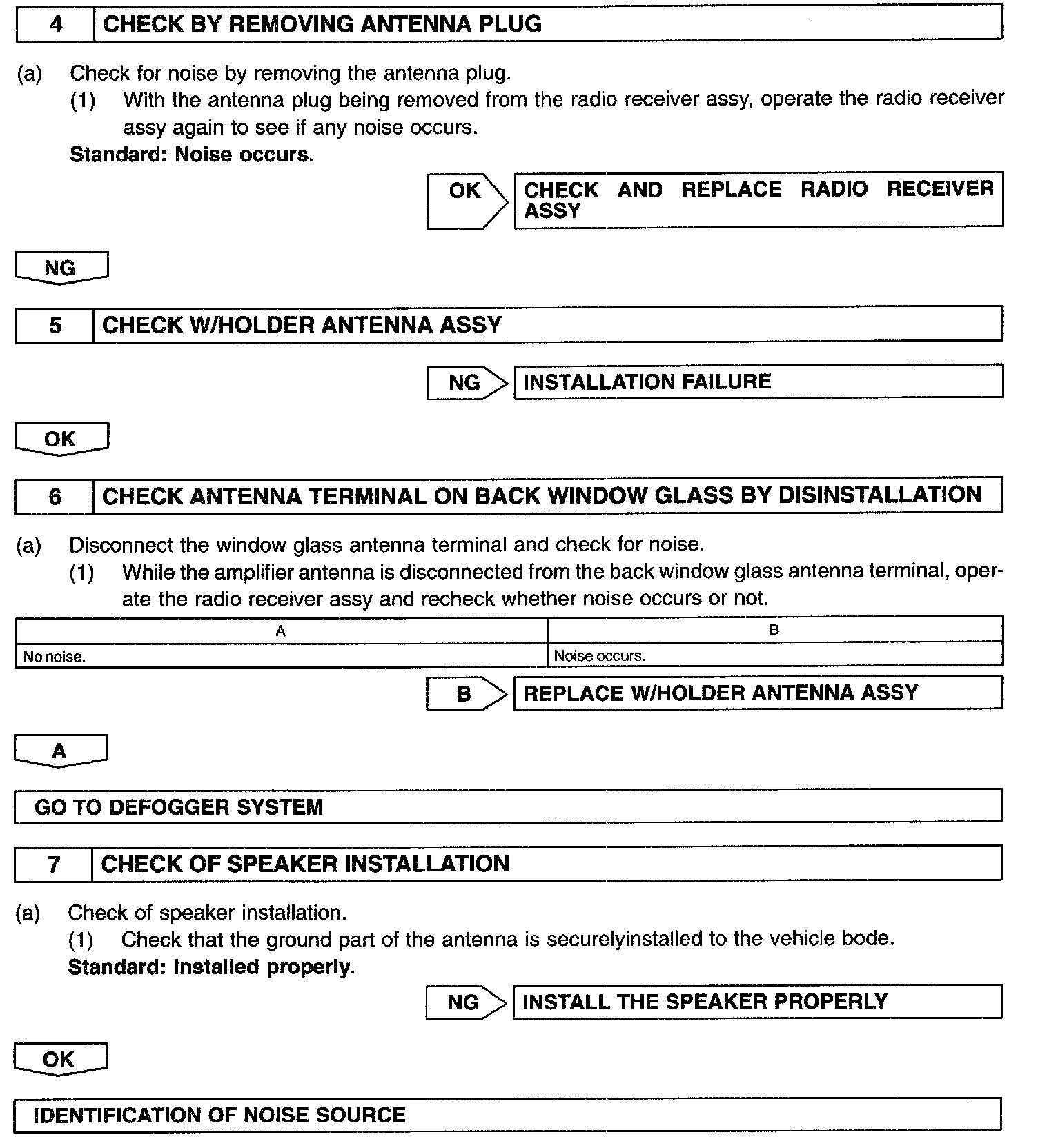

Step 4 - 7:




INSPECTION PROCEDURE
