MAP IS DISPLAYED IN WHITE OR BLUE SCREEN (SWITCHED AND VEHICLE POSITION MARK ARE DISPLAYED)

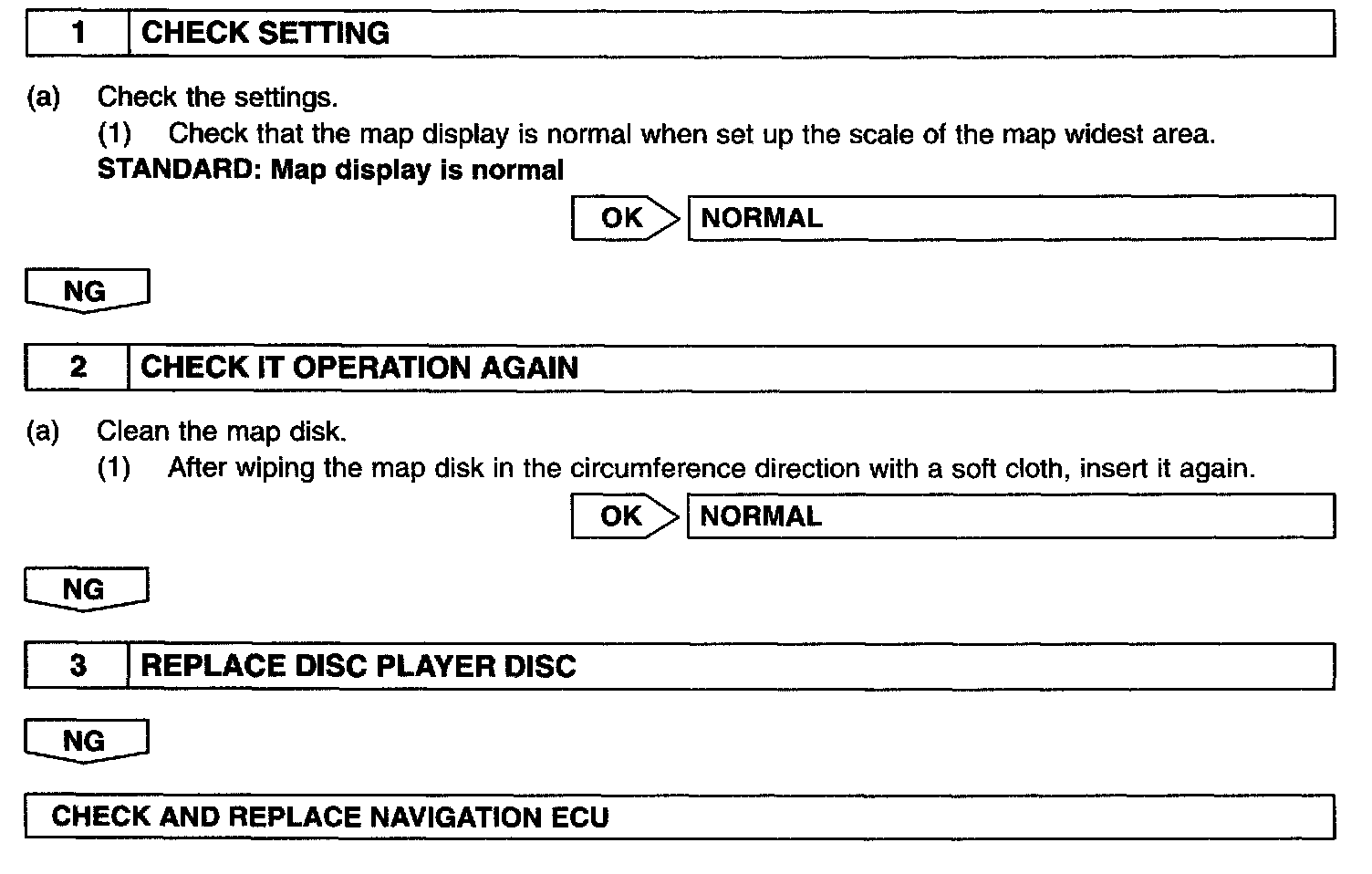

Step 1 - 3:
INSPECTION PROCEDURE
