Although "PWR/VOL" Switch is Pressed, No Sound is Heard

ALTHOUGH "PWR/VOL" SWITCH IS PRESSED, NO SOUND IS HEARD (DISPLAY AND SWITCH OPERATION IS NORMAL)

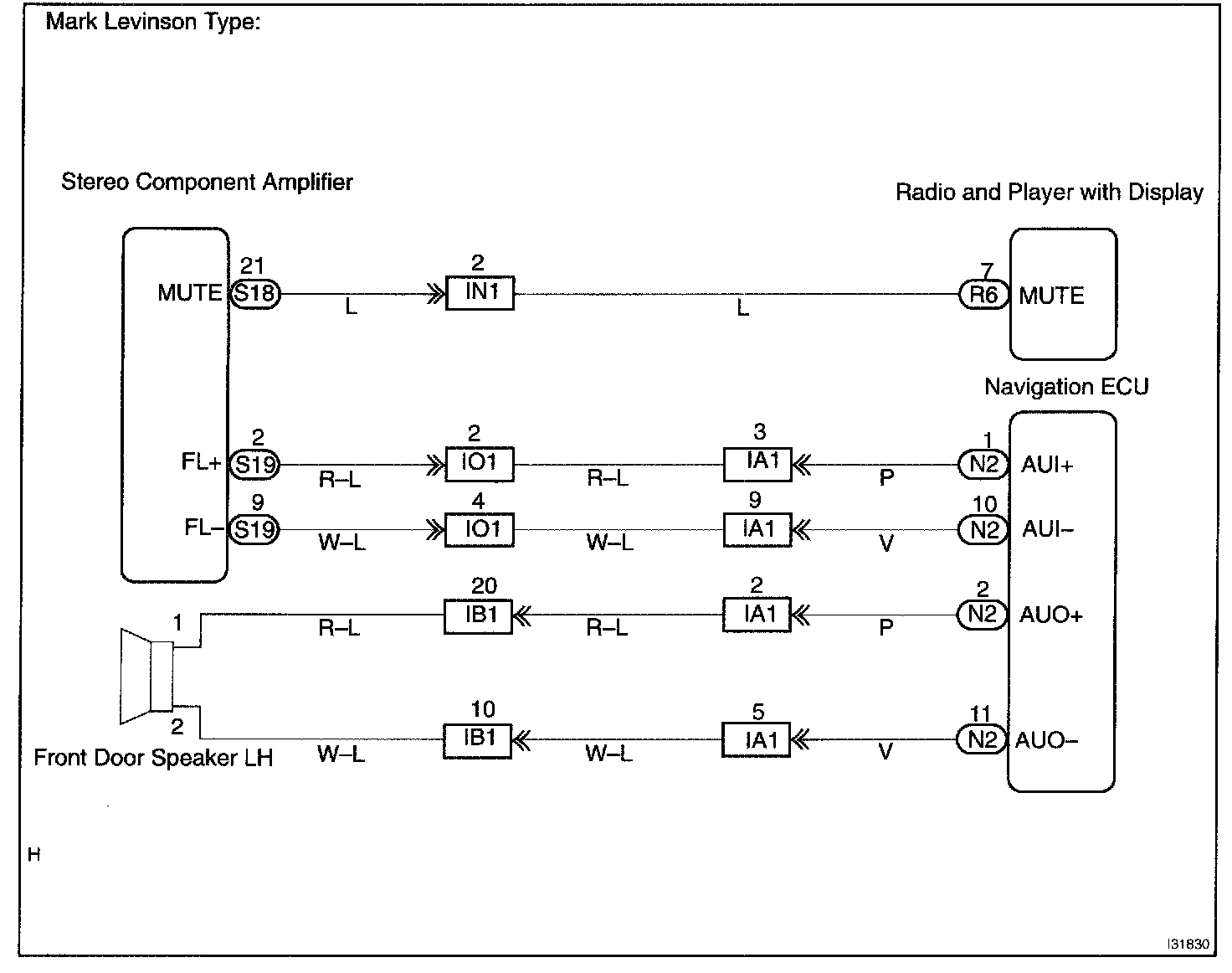

Wiring Diagram Part 1:




Wiring Diagram Part 2:

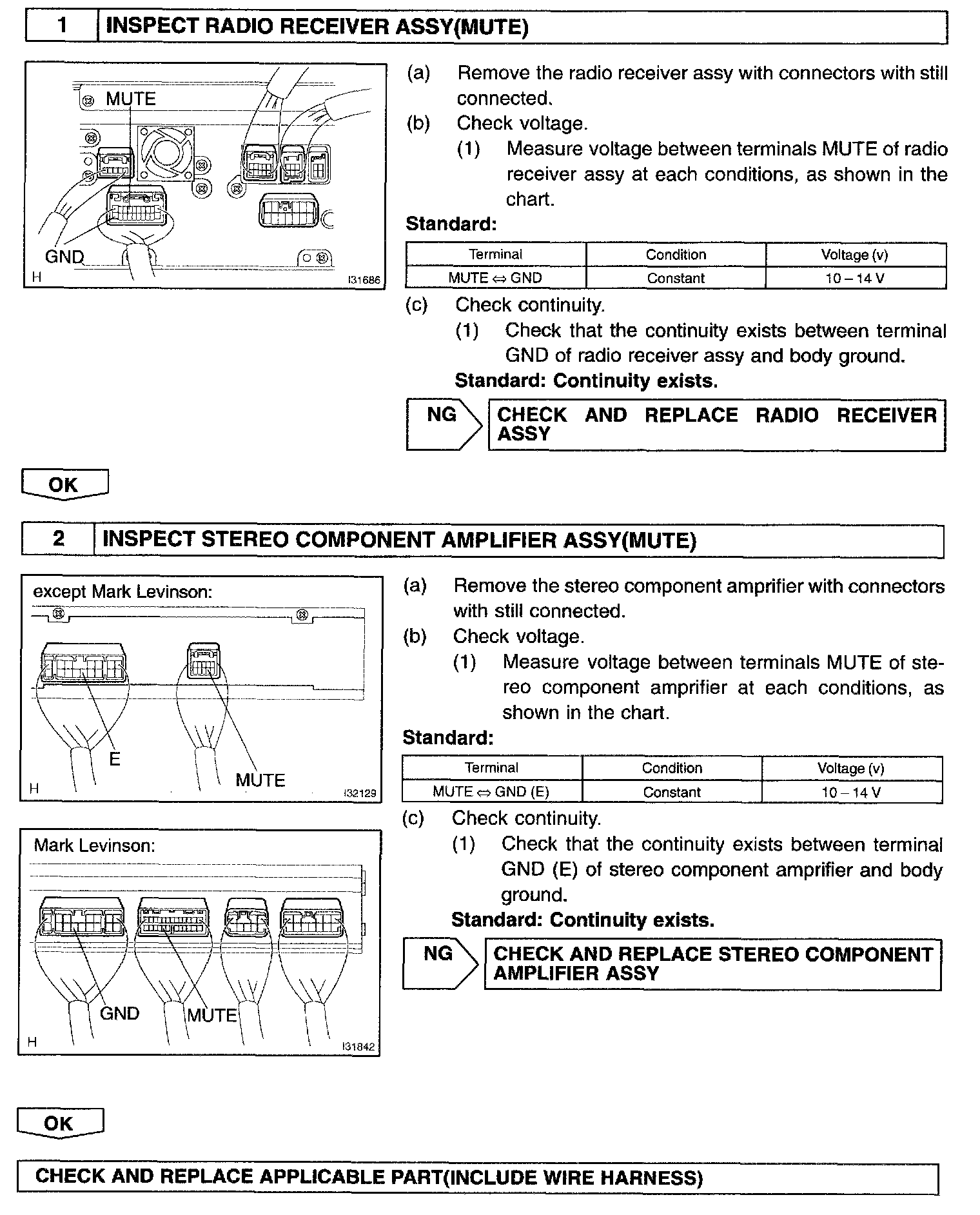

Step 1 - 2:




INSPECTION PROCEDURE
