Initial Inspection
THEFT DETERRENT SYSTEMON-VEHICLE INSPECTION
1. THEFT DETERRENT SYSTEM
When the system is set to the theft deterrent mode and any of the following conditions are met, the system sounds the horns and flashes the headlights and the taillights for approximately 1 minute. At the same time the system locks all doors (If all doors are not locked at once, the system repeats door locking operation every 0.38 seconds during the one minute alarming time).
There are 2 modes in this system; one is active mode and another is passive mode.
All initial settings are performed in the active mode. It can be switched to the passive mode by a specified operation. (See step 4. CHANGING METHOD OF PASSIVE MODE)
- Any of the doors (including the engine hood and luggage compartment door) is unlocked or opened without the key. *1
- The battery terminal is disconnected and reconnected.
- The system receives a panic signal from remote keyless entry. *2
*1: Only active arming mode.
*2: When the ignition key is not inserted in the key cylinder.
HINT: There are 4 conditions in this system which are disarming condition, disarming preparation condition, arming condition and alarming condition.
a. Disarming condition:
1. When a user is near the vehicle.
2. When the alarming function does not operate.
3. When the theft deterrent function does not operate.
b. Disarming preparation condition:
1. Time from a user locks a door to be leaves the vehicle.
2. Time until transferring to the disarming condition.
3. When the theft deterrent function does not operate.
c. Arming condition:
1. When a user leaves the vehicle completely.
2. When the theft deterrent function operates.
d. Alarming condition:
1. In this condition, once a theft is detected, lights will flash and horns will sound to let people around the vehicle know about the theft.
Refer to the table for alarming method or time.
HINT: In the arming condition, when either of doors is unlocked and no key is in the key cylinder, force lock signal is output.
Indicator Light Output:
2. ACTIVE ARMING MODE
HINT: Even in the disarming condition, the indicator light flashes (due to a signal output from immobilizer system).
The indicator always flashes by receiving a signal from the immobilizer system at any time in the arming condition.
Flashing frequency:
0.2 seconds (ON)
1.8 seconds (OFF)
Part 1:
Part 2:
3. PASSIVE ARMING MODE
- This mode can be switched by the specified operation.
- All initially set modes (when shipped from factory) are active mode. (No passive mode)
Indicator Light Output:
HINT: When either closed door is opened in the arming condition, entry delay occurs. (14 seconds)
During this time, the mode transfers to the disarming condition when the condition described above is met.
When the condition is not met, the system judges a theft and the mode transfers to the alarming condition.
HINT: Even in the disarming condition, the indicator light flashes (due to the signal output from immobilizer system).
The indicator always flashes by receiving the signal from the immobilizer system at any time in the arming condition.
Flashing frequency:
0.2 seconds (ON)
1.8 seconds (OFF)
- Transfer to active mode: In each passive mode, when "disarming condition of active mode -> disarming preparation transfer condition" is met, the active mode transfers to each condition. In this case, active mode continues until the disarming condition.
4. CHANGING METHOD OF PASSIVE MODE (ON or OFF)
a. Using hand-held tester, the mode can be changed to the passive mode.

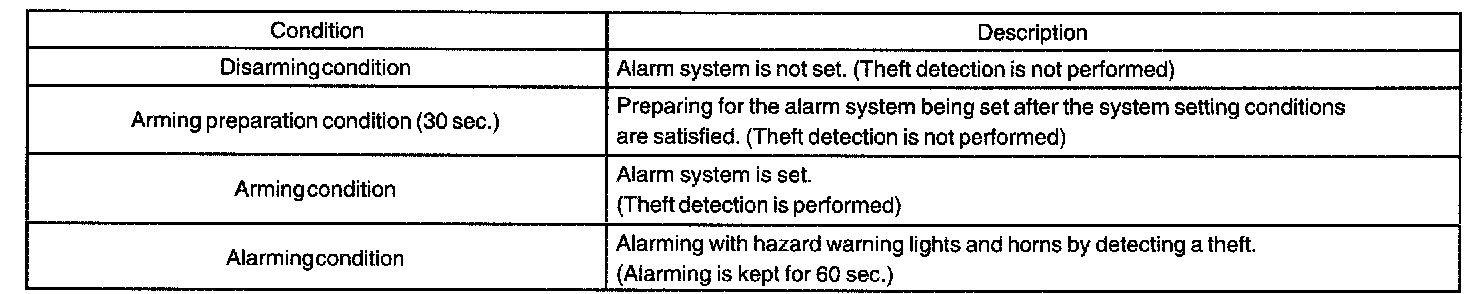

5. DESCRIPTION OF AUTOMATIC ALARMING CONDITION
6. INSPECT AUTOMATIC ALARM OPERATION
HINT:
- Wireless operation written in this text shows the operation of the "LOCK/UNLOCK" and the door control transmitter switch operation and each operation as well.
- All doors written in this text shows "4-door".
a. Disarming condition -> arming preparation condition (with no key in the ignition switch lock cylinder).
1. Lock all doors via the wireless operation when all doors, hood and back door are closed.
b. Arming preparation condition -> Arming condition (30 seconds have elapsed since the disarming preparation condition)
c. Arming condition -> Alarming condition (alarming functions when any of the following conditions is satisfied)
1. Any of the doors or hood is open.
2. Any of the doors is unlocked by any ways except the wireless operation.
3. The hood is open.
4. The battery is reconnected.
5. The ignition terminal is short-circuited.
6. The self power siren sounds at the same time when the battery is disconnected.
d. Alarming (arming) condition -> Disarming condition (if step (1) is satisfied during the arming condition, it enters into the disarming condition. Also, if step (1) is satisfied during the alarming condition, it stops alarming and enters into the disarming condition.)
1. All doors are unlocked by the wireless operation.
e. Alarming condition (after the condition (c) has been satisfied, it starts the alarming condition, such as the hazard light's flashing, dome in lamp's flashing, horn's sounding and security siren's sounding for 60 seconds, and the doors are locked forcibly (If any of the doors is unlocked).
HINT: It transfers into the arming condition 60 seconds after the alarming.
f. Arming preparation condition -> Disarming condition (if any of the following conditions is satisfied during the arming preparation condition, it enters into the disarming condition.
1. Any of all doors is unlocked.
2. Any of all doors and the back door is open.
3. The hood is open.
4. The key is inserted into the ignition switch lock cylinder.
5. The battery is reconnected.
6. The ignition switch is turned ON.
7. CHECK OUTPUTS OF INDICATOR
a. Check that the indicator light comes on in the given condition.
