Indicator Light Circuit

CIRCUIT DESCRIPTION

While the theft deterrent system is preparing to be set, this circuit lights up the indicator light. When the system has been set, it continuously turns the indicator light on for 0.75 seconds and turns it off for 1.25 seconds, thus the indicator light blinks.

Wiring Diagram:

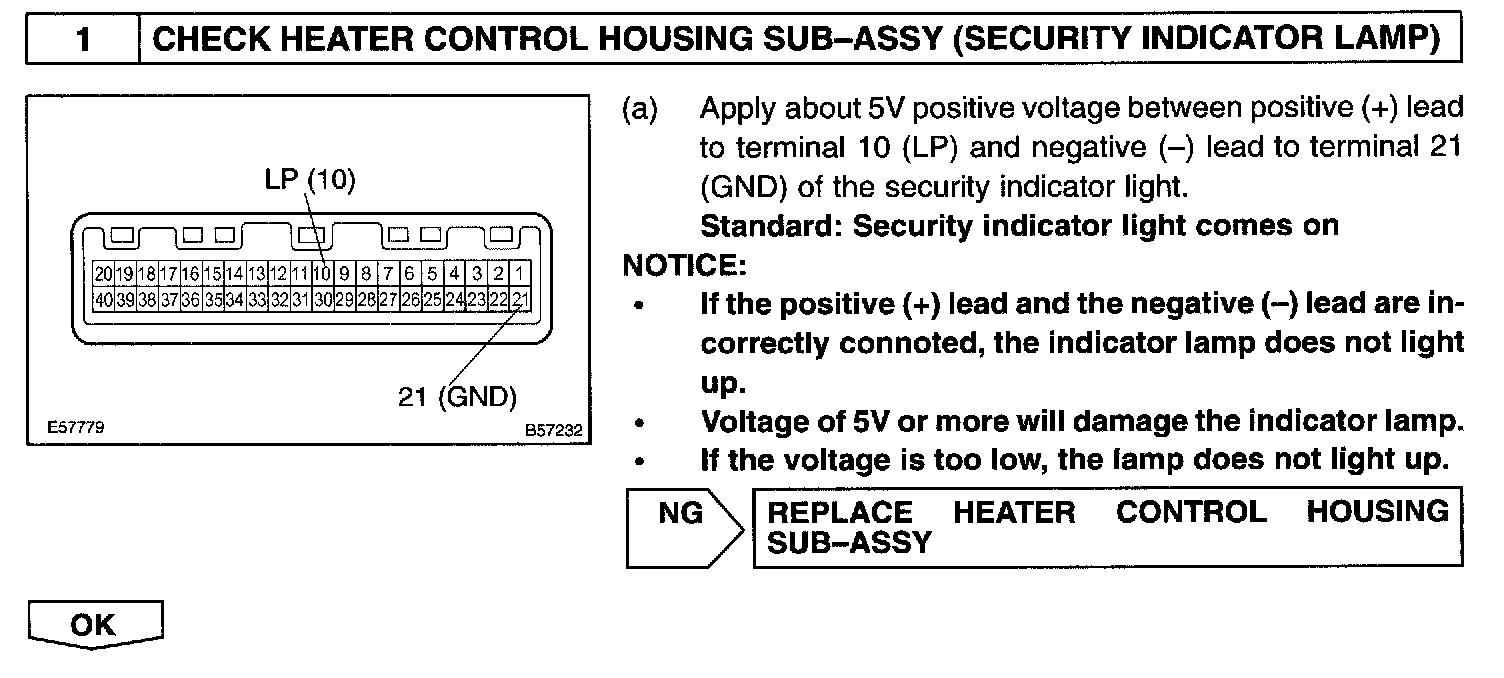

Step 1:

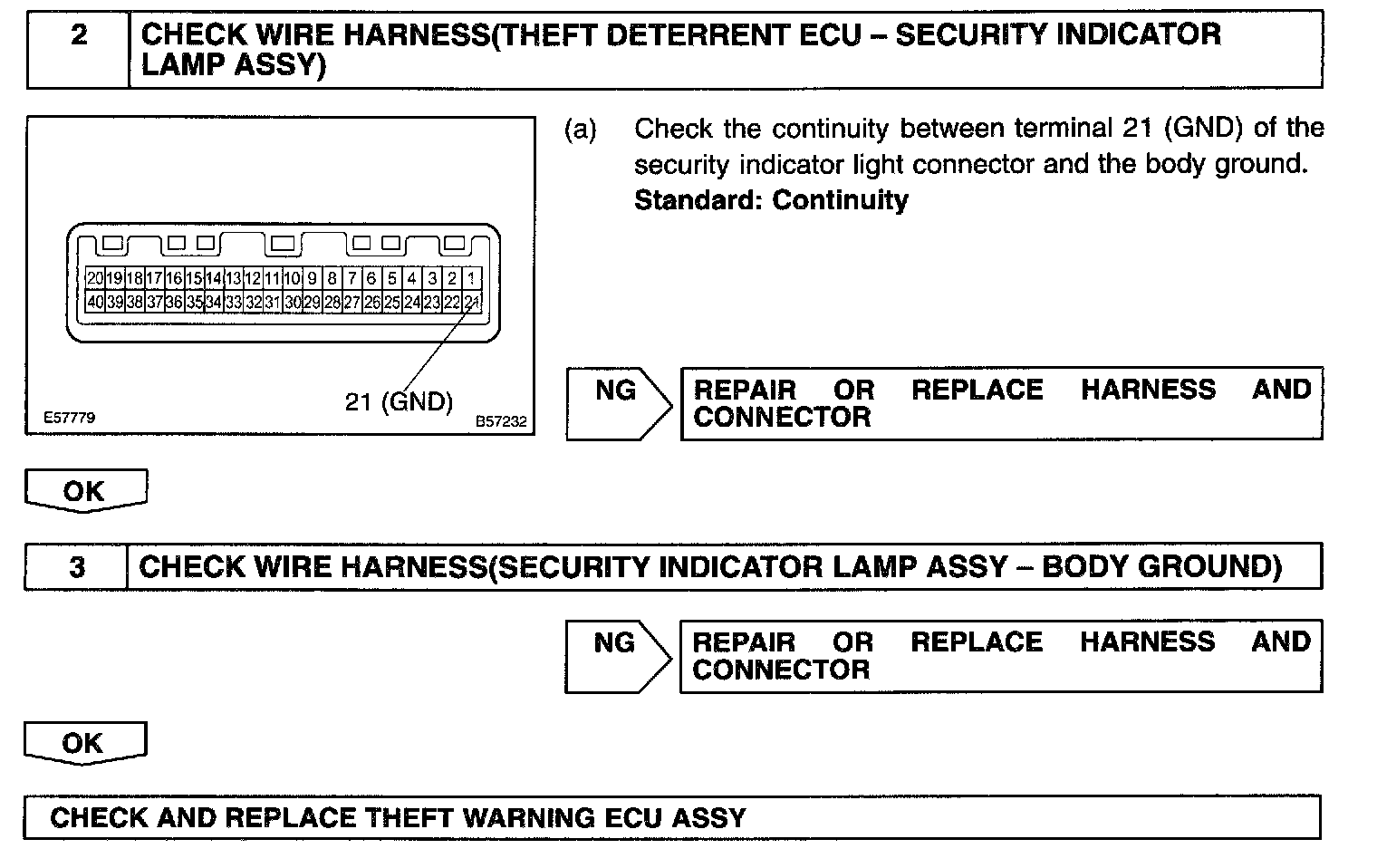

Step 2 - 3:

INSPECTION PROCEDURE
