ANTENNA CORD SUB-ASSY

REPLACEMENT
1. SHIP MODE SETTING (W/ CD CHANGER)
Refer to Radio, Stereo, and Compact Disc; Service and Repair.
2. REMOVE FRONT DOOR SCUFF PLATE LH
3. REMOVE FRONT DOOR SCUFF PLATE RH
4. REMOVE INSTRUMENT PANEL SUB-ASSY UPPER
5. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1
6. REMOVE INSTRUMENT PANEL SUB-ASSY LOWER
7. REMOVE CONSOLE PANEL SUB-ASSY UPPER
8. REMOVE CONSOLE PANEL UPPER REAR
9. REMOVE CONSOLE BOX CARPET
10. REMOVE RR CONSOLE BOX
11. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
12. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
13. REMOVE AIR CONDITIONER CONTROL ASSEMBLY
14. REMOVE RADIO RECEIVER PANEL
15. SHIP MODE CONFIRMATION (W/ CD CHANGER)
16. REMOVE SEAT TRACK BRACKET COVER OUTER FRONT RH
17. REMOVE SEAT TRACK BRACKET COVER INNER FRONT RH
18. REMOVE FRONT SEAT TRACK COVER RH REAR INNER
19. REMOVE FRONT SEAT TRACK COVER RH REAR OUTER
20. REMOVE FRONT SEAT ASSY RH
21. REMOVE SEAT TRACK BRACKET COVER OUTER FRONT LH
22. REMOVE SEAT TRACK BRACKET COVER INNER FRONT LH
23. REMOVE FRONT SEAT TRACK COVER RH REAR OUTER
24. REMOVE FRONT SEAT TRACK COVER LH REAR OUTER
25. REMOVE FRONT SEAT ASSY LH
26. REMOVE REAR SEAT CUSHION ASSY
27. REMOVE REAR SEAT BACK ASSY
28. REMOVE ROOF SIDE GARNISH INNER RH
29. REMOVE ROOF SIDE GARNISH INNER LH
30. REMOVE AIR DUCT REAR NO.2

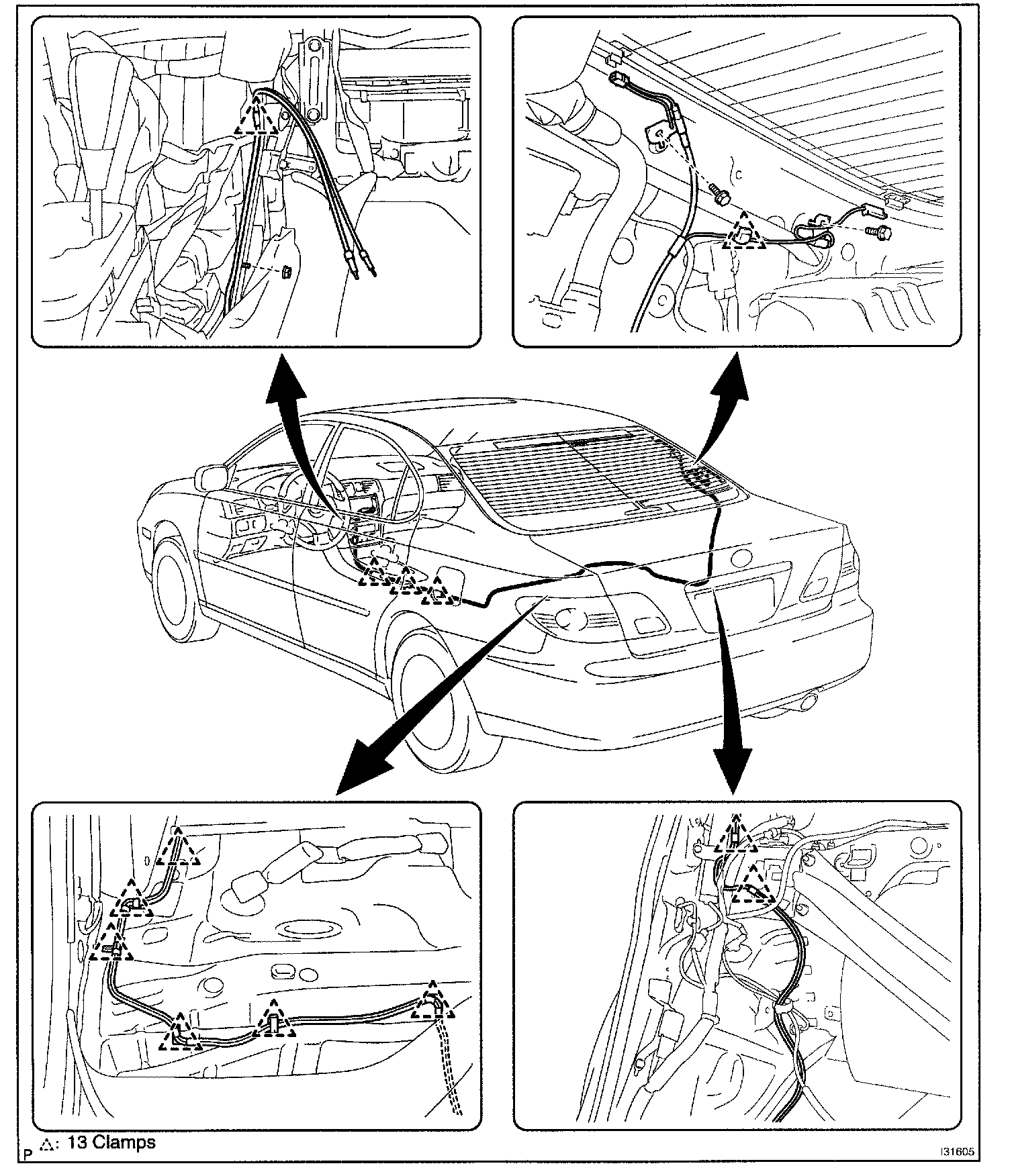

31. REMOVE ANTENNA CORD SUB-ASSY
a. Remove the nut and 2 bolts.
b. Disconnect the connectors.
c. Remove the 13 clamps and antenna cord sub-assy.

32. INSTALL ROOF SIDE GARNISH INNER RH
33. INSTALL ROOF SIDE GARNISH INNER LH
34. INSTALL REAR SEAT BACK ASSY
35. INSTALL REAR SEAT CUSHION ASSY
36. INSTALL FRONT SEAT ASSY LH
37. INSTALL FRONT SEAT ASSY RH
