Antenna, Navigation: Service and Repair

Audio & Visual System Part 1:

Audio & Visual System Part 2:

NAVIGATION ANTENNA ASSY

REPLACEMENT
1. REMOVE REAR SEAT CUSHION ASSY
2. REMOVE REAR SEAT BACK ASSY
3. REMOVE ROOF SIDE GARNISH INNER RH
4. REMOVE ROOF SIDE GARNISH INNER LH
5. REMOVE REAR SEAT SHOULDER BELT COVER
6. REMOVE PACKAGE TRAY TRIM PANEL ASSY
7. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY OUTER
8. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY OUTER
9. REMOVE REAR SEAT INNER W/CENTER BELT ASSY RH
10. REMOVE REAR SEAT INNER W/CENTER BELT ASSY LH
11. REMOVE ROOM PARTITION PANEL INSULATOR




12. REMOVE NAVIGATION ANTENNA ASSY
a. Disconnect the connector.

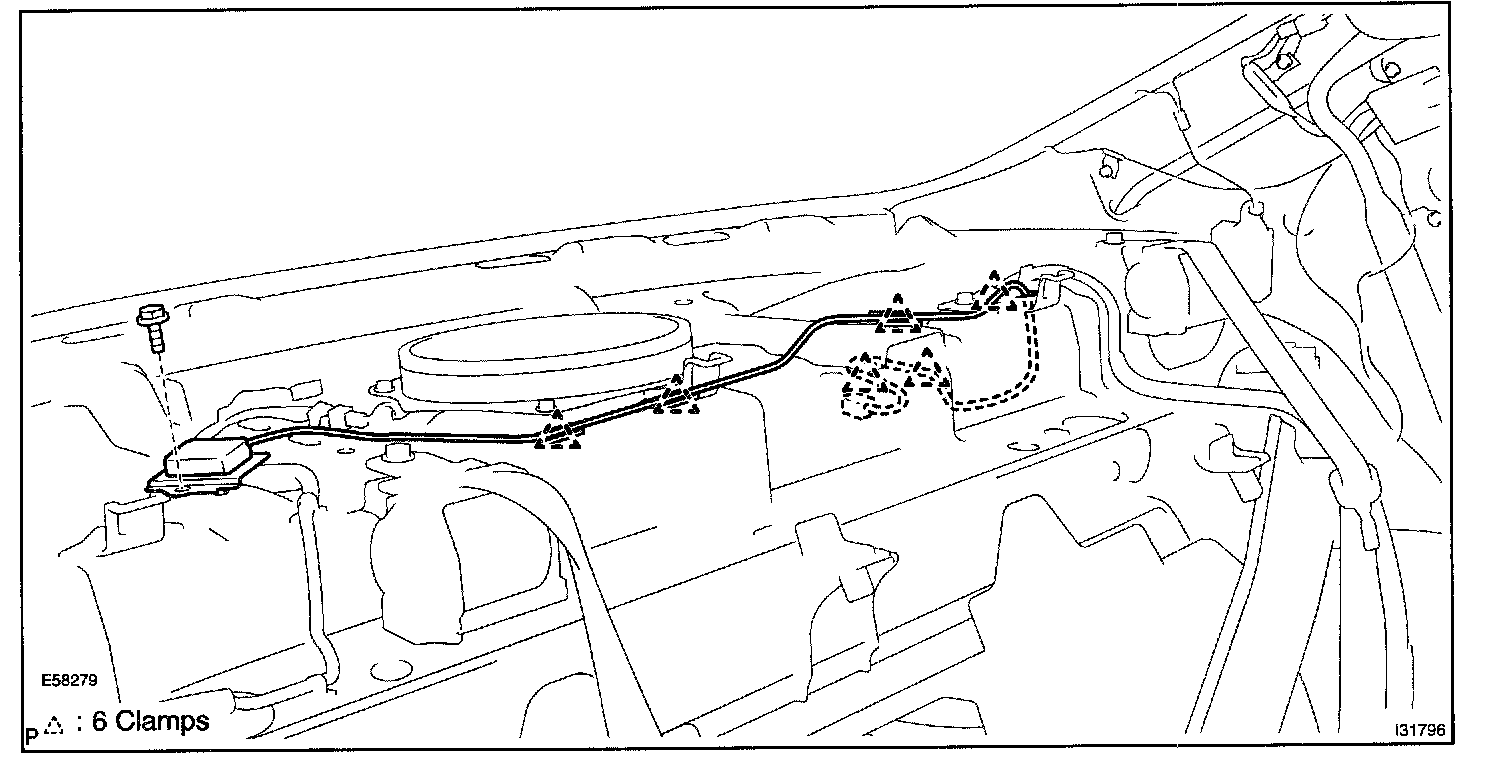

b. Remove the screw and 6 clamps, then remove the navigation antenna assy.

13. INSTALL REAR SEAT INNER W/CENTER BELT ASSY RH
14. INSTALL REAR SEAT 3 POINT TYPE BELT ASSY OUTER
15. INSTALL REAR SEAT 3 POINT TYPE BELT ASSY OUTER
16. INSTALL REAR SEAT INNER W/CENTER BELT ASSY LH
17. INSTALL ROOF SIDE GARNISH INNER RH
18. INSTALL ROOF SIDE GARNISH INNER LH
19. INSTALL REAR SEAT BACK ASSY
20. INSTALL REAR SEAT CUSHION ASSY
