P1730

DTC P1730 NC REVOLUTION SENSOR CIRCUIT MALFUNCTION

CIRCUIT DESCRIPTION

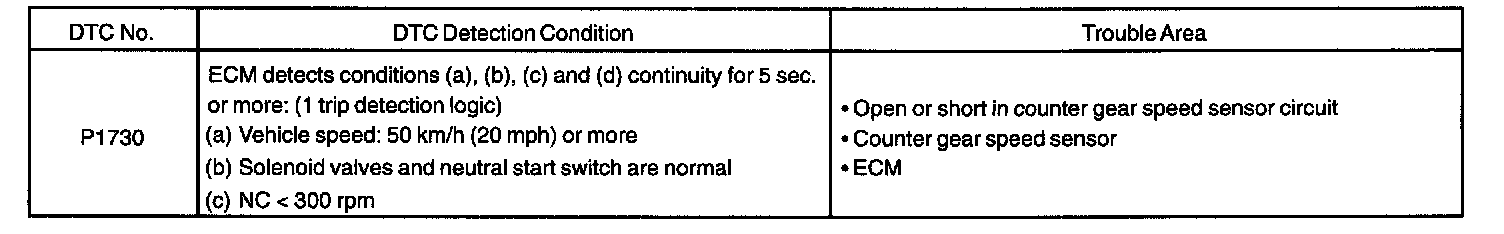

DTC Detection Condition:

This sensor detects the rotation speed of the counter gear. By comparing the counter gear speed signal (NC) with the direct clutch speed sensor signal (NT), the ECM detects the shift timing of the gears and appropriately controls the engine torque and hydraulic pressure according to various conditions. Thus smooth gear shifting is performed.

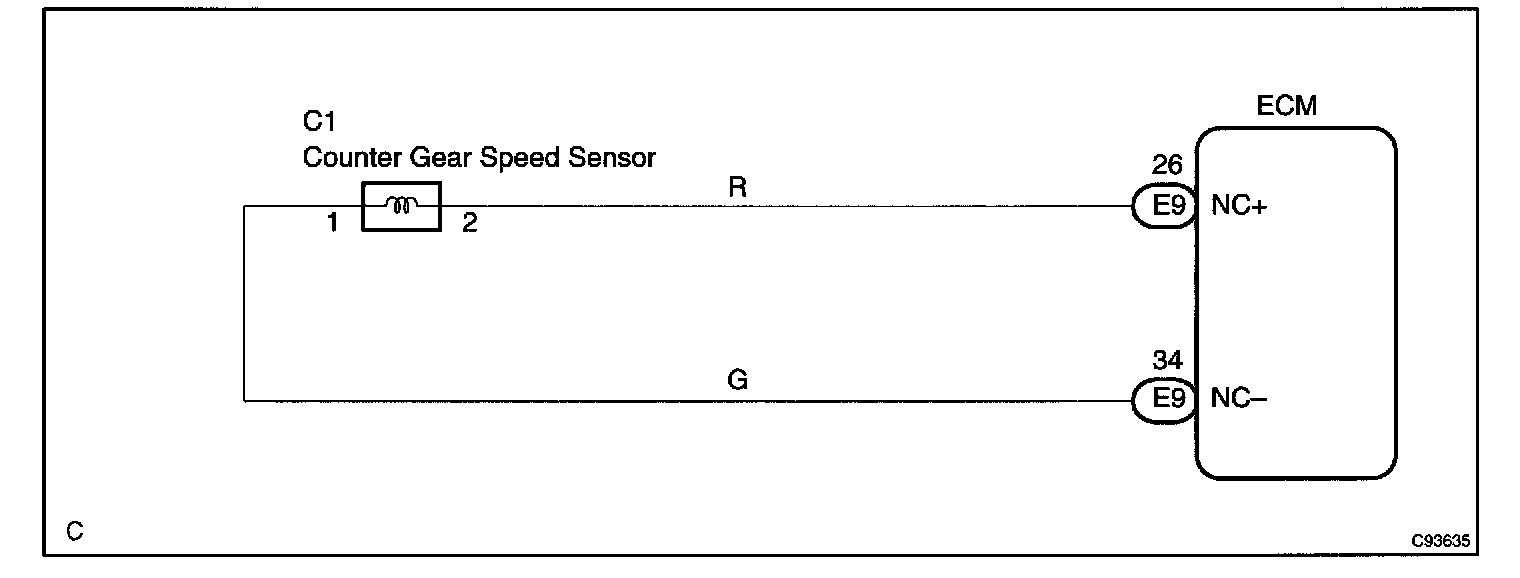

Wiring Diagram:

Step 1 - 2:

Step 3:

INSPECTION PROCEDURE
