P0770

DTC P0770 SHIFT SOLENOID E MALFUNCTION

SYSTEM DESCRIPTION

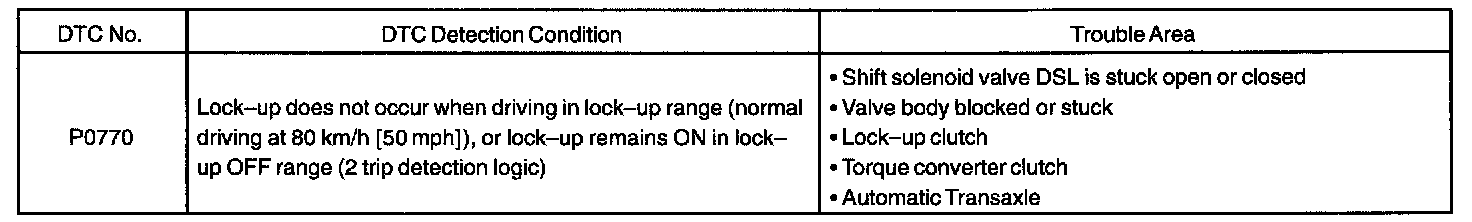

DTC Detection Condition:

The ECM uses the signals from the throttle position sensor, Air-flow meter and crankshaft position sensor to monitor the engagement condition of the lock-up clutch.

Then the ECM compares the engagement condition of the lock-up clutch with the lock-up schedule in the ECM memory to detect a mechanical trouble of the shift solenoid valve DSL, valve body and torque converter clutch.

Step 1:

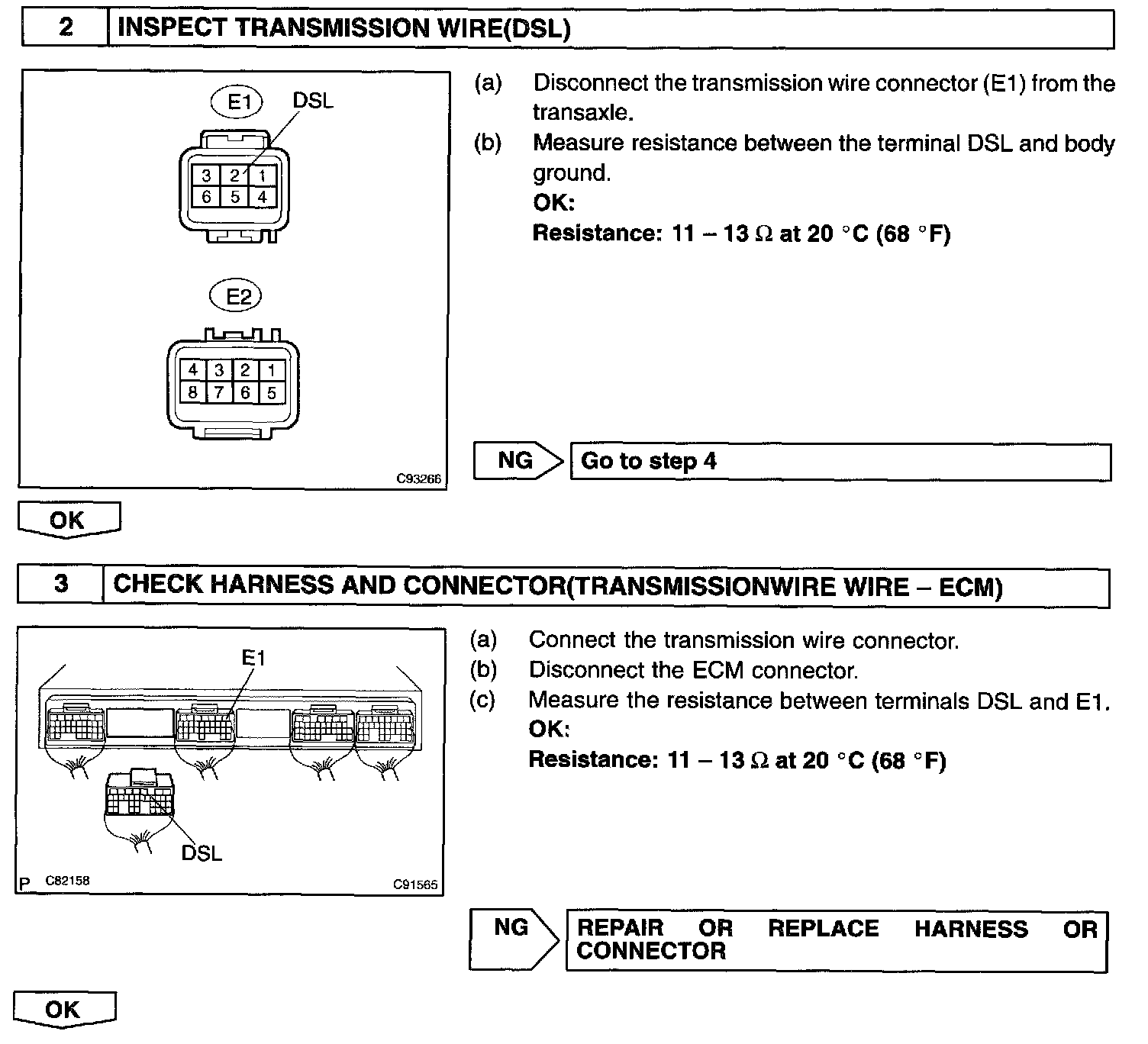

Step 2 - 3:

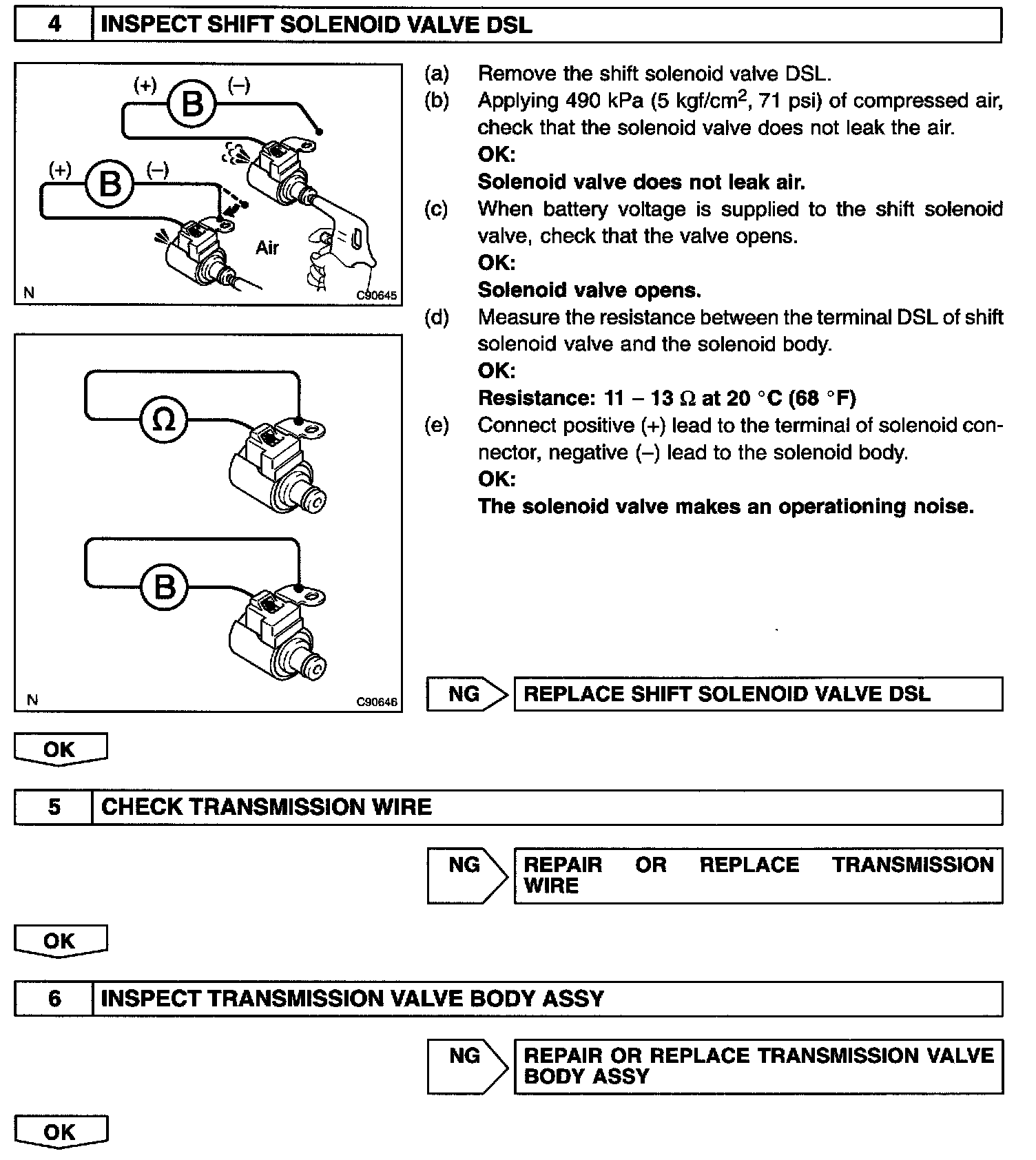

Step 4 - 6:

Step 7:

INSPECTION PROCEDURE
